VAXIS Storm 3000 3G-SDI/HDMI Wireless Transmission System (1000m/3000ft)
- Brand: VAXIS
- SKU: PK1966
- Product code:
This product is also available in AB/Gold Mount. Please contact us for more information.
The VAXIS STORM 3000 Wireless HDMI/SDI Transmission Suite utilize today's most advanced wireless video transmission technology, which can realize the broadcast-class and uncompressed 3G SDI/HDMI HD video signal transmitted with no compression and zero delay. The suite includes one transmitter and one receiver, where the transmitter provides a 3G/HD SDI input and a HDMI input, and the receiver also provides a 3G/HD SDI output and a HDMI output.
The wireless HD suite has 2 stick antennas in transmitter side, and 5 stick antennas in receiver side, and it can work in 5.1-5.9GHz frequency band and be flexibly software configured to licensed or ISM band of global different regions, as well as the side panel of both transmitter and receiver have been installed a control panel with OLED, which provides maximum 10 workable frequency channels, and supports maximum 10 sets working simultaneously.
The wireless suite can accept wide range DC power input, which is suitable for many kinds of camera battery model. The suite also can sustain ±8 kV ESD (HBM, contact discharge), the industry class metal case and professional heat design would guarantee most robust reliability.

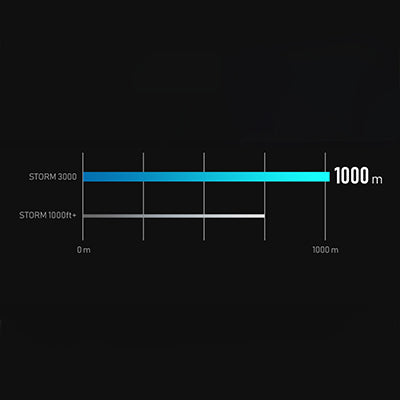

Up to 1 kilometer transmission dstance Meet all shooting demands for big prod tion, football live, and other events
With the enhanoed signal anti-interruption ability, video quality loss of Storm 3000 is significantly better than other same grade product at extreme distanoe. Storm 3000 allows stable video transmission in extremely complex environment and sorts of events

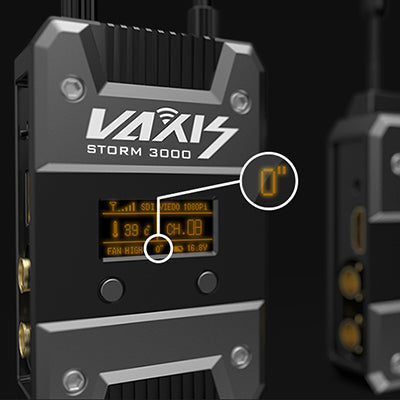

NEW professional mode, give you 1 frame less delay than regular mode, Meet requirement of news, sports or other live broadcast
Support more equipment working at same time, reduce signal interference.

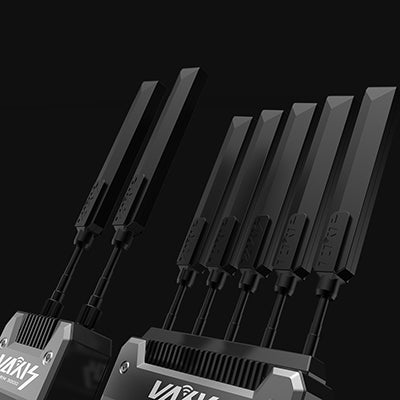

Vaxis new blade antenna (patent NO.201 721469986.2), more durable and practical

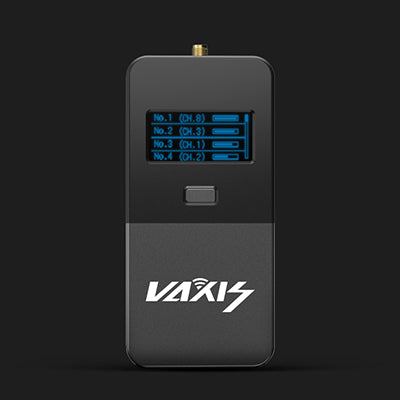

Find your best channel in one click, compatible to all Vaxis Storm sorles

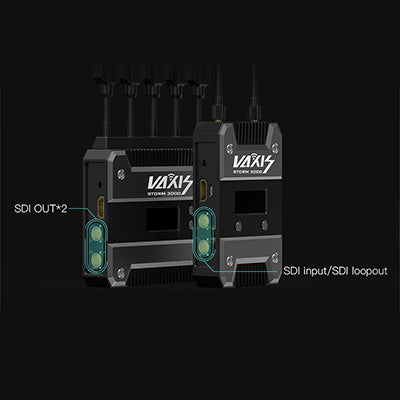

Embedded ports, avold damage from physical shock

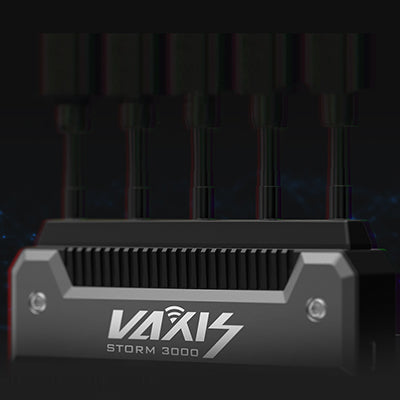

Give strong protection to the most frequently damaged antenna, extend the service life of each antenna. Free from assemble and disassemble.

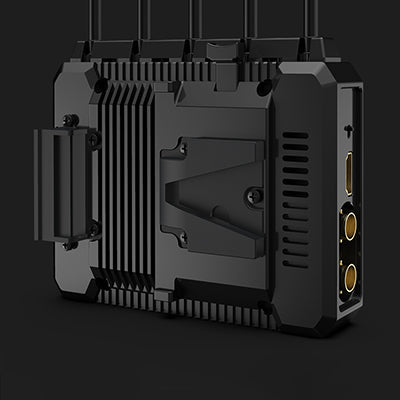

Ploneer to combine the battery mount and case into one, bulld a stronger and lighter body

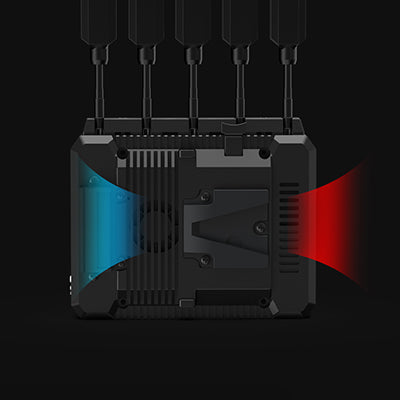

35mm smart codling fan, allow long working time at hot environment
Features:
- HDMI 1.3 spec supports
- HDMI and 3G SDI input and output
- 24fps frame rates
- Highest resolution 1080p 60, no delay and no compression
- Support audio formats include Dolby True HD, DTS-master, etc.
- AES-128 encryption with air interface HD video data stream
- Support point to point, and point to multi points network topology
- 5GHz ISM frequency band, maximum 10 frequency channels selected by user knob, coexist with WIFI.
- Maximum transmission distance 3000ft
- Mounting: Sony U-30 / Canon LP-E6 / Sony NP-970 battery plate
- Embedded time code transported over link Up to 63mW
- RF Power output: Up to 63mW,no harm to human health
- Signal indicators for wireless power status, Temperature, Video status and receiver RSSI, useful OLED display and channel setting by tact switch
- Wide range power voltage input, adapt most kinds of camera battery
- Any input and output ports with ±8 kV ESD protection level (HBM, contact discharge)
- All-metal housing, durable
- Pure hardware connection; Plug and Play
- USB firmware upgrade
Package Contents:
Basic Kit (TX+RX) (PK1966):1x VAXIS Storm 3000-TX Wireless Transmitter (532335)
1x VAXIS Storm 3000RX Wireless Receiver (532334)
1x Sword antennas (SMA female) (532331)
1x 3G-SDI Cable (535188)
1x VAXIS Blue Noga Arm (532330)
1x 1x1 Hard Case (533861)
Kit 1 (TX+2xRX) (PK1967):
2x VAXIS Storm 3000RX Wireless Receiver (532334)
1x Sword antennas (SMA female) (532331)
1x 3G-SDI Cable (535188)
1x VAXIS Blue Noga Arm (532330)
1x 1x2 Hard Case (533862)
1x VAXIS Storm 3000-TX Wireless Transmitter (532335)
2x VAXIS Storm 3000RX Wireless Receiver (532334)
1x Sword antennas (SMA female) (532331)
1x 3G-SDI Cable (535188)
1x VAXIS Blue Noga Arm (532330)
Kit 3 (TX+RX + Arry Antenna) (PK0987):
1x VAXIS Storm 3000-TX Wireless Transmitter (532335)
1x VAXIS Storm 3000RX Wireless Receiver (532334)
1x Sword antennas (SMA female) (532331)
1x 3G-SDI Cable (535188)
1x VAXIS Blue Noga Arm (532330)
1x 1x1 Hard Case (533861)
1x VAXIS Array Antenna (532361)
Kit 4 (TX+RX + 072 V2 Monitor) (PK1439):
1x VAXIS Storm 3000-TX Wireless Transmitter (532335)
1x VAXIS Storm 3000RX Wireless Receiver (532334)
1x Sword antennas (SMA female) (532331)
1x 3G-SDI Cable (535188)
1x VAXIS Blue Noga Arm (532330)
1x 1x1 Hard Case (533861)
1x VAXIS Storm 072 V2 Monitor Basic kit (532733)
