The CGPRO VC-2CH charger is specially designed for professional V-lock Li-ion camera batteries. You can charge two batteries simultaneously or power a device as a power adapter. This charger can output a 3A charge to each battery which speeds up the charging process considerably compared to other V-lock chargers.
Features:
- Docking charger design
- Fast 3A Dual battery charging
- Suitable for CGP Ultra and Pocket size V-lock batteries
Operation:
• Connect the power cable onto charger and 100-240V AC power.
• Connect the battery onto the plate of the charger.
• Switch on charge section, the indicator RED means “charge work start”.
• Indictor ORANGE means nearly charged fully.
• Indicator GREEN means charged fully.
• Switch off and take off the battery from the charger.
Please note: This charger is NOT compatible with IDX batteries. Do not attempt as may cause damage to your battery.
Specifications:
CGPRO Dual Charger
• Input: AC 90～240V, 47～63Hz
• Charger Output: DC 16.8V 3A x 2
• Adapter Output: DC 15V 4.5A
• Dimension: 255 (W) x140(H)x90(D)(mm)
• Weight: 990g
• Working Temperature: -25℃ ～+ 50℃
Package Contents:

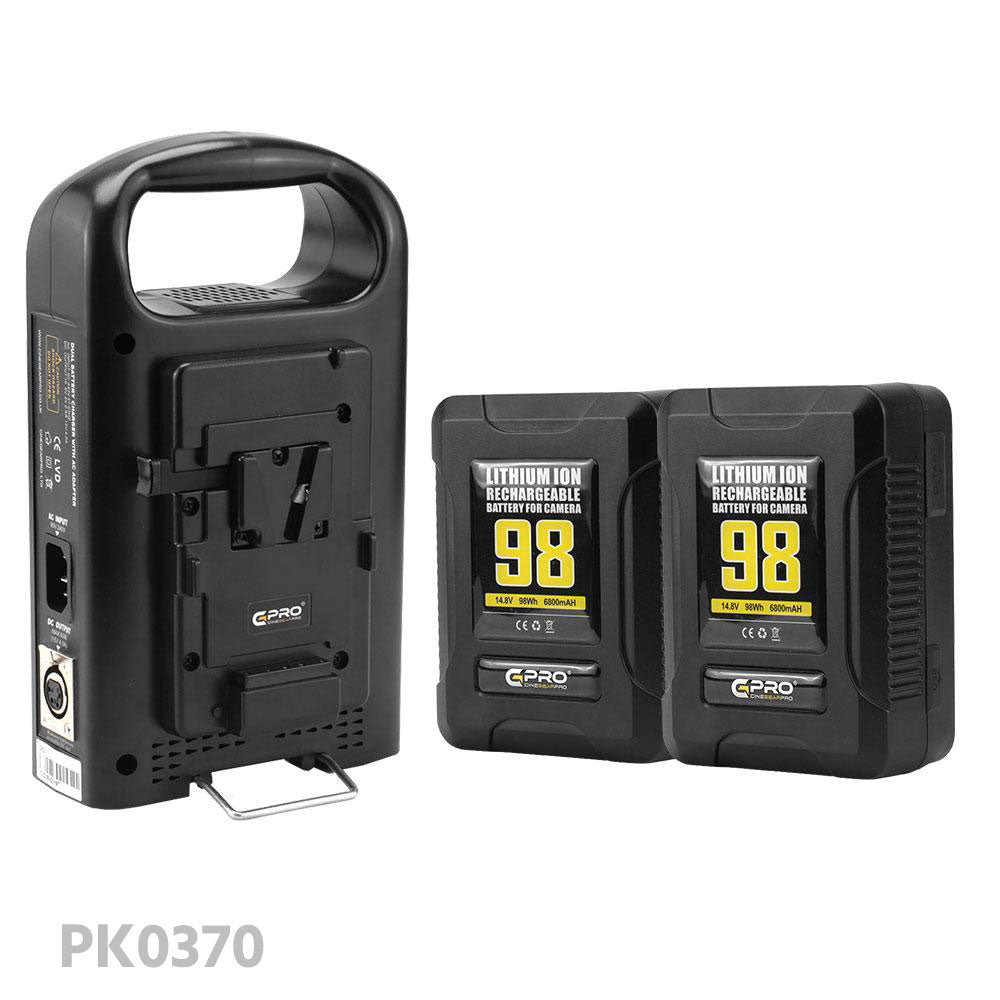

PK0370
2x CGPro 98Wh Ultra Small Size Mini V-Lock Li-Ion V-Mount Battery (531924)
1x CGPRO VC-2CH Dual-channel Charger (532015)

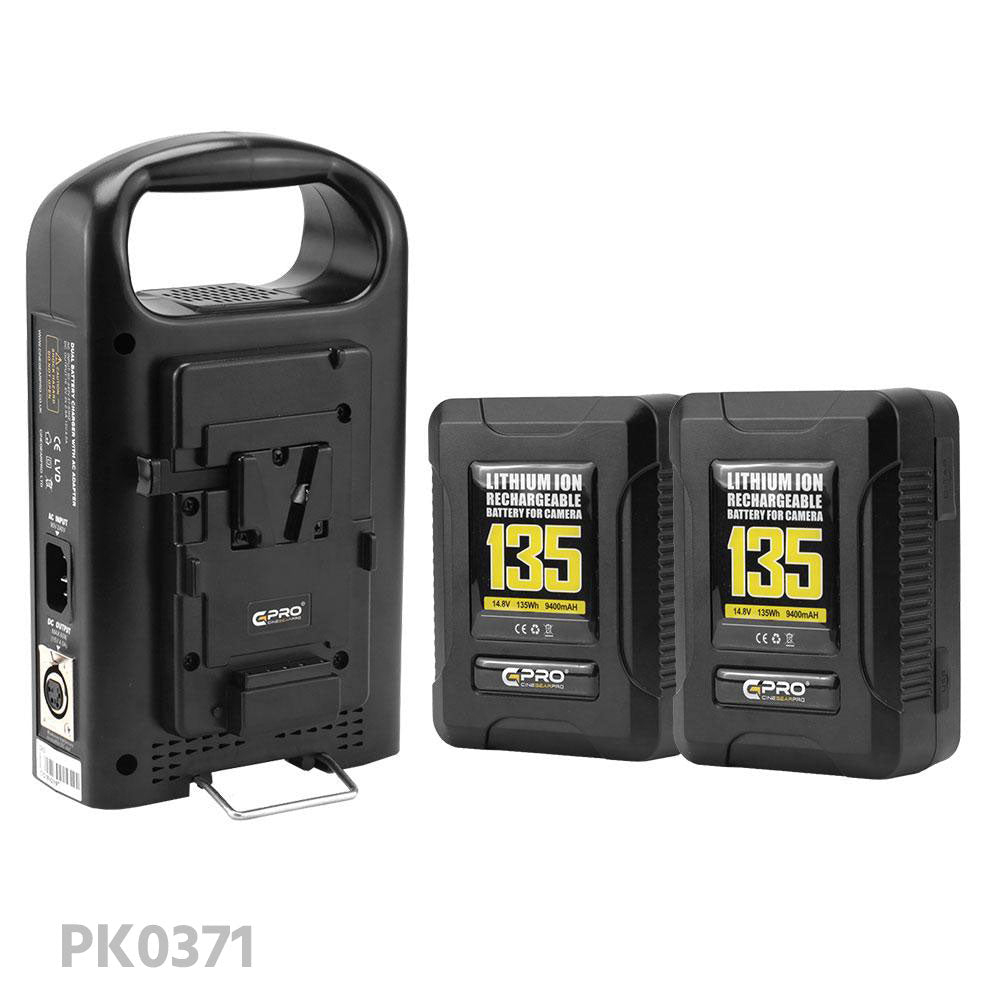

PK0371
2x CGPro 135Wh Ultra Small Size Mini V-Lock Li-Ion V-Mount Battery (531925)
1x CGPRO VC-2CH Dual-channel Charger (532015)

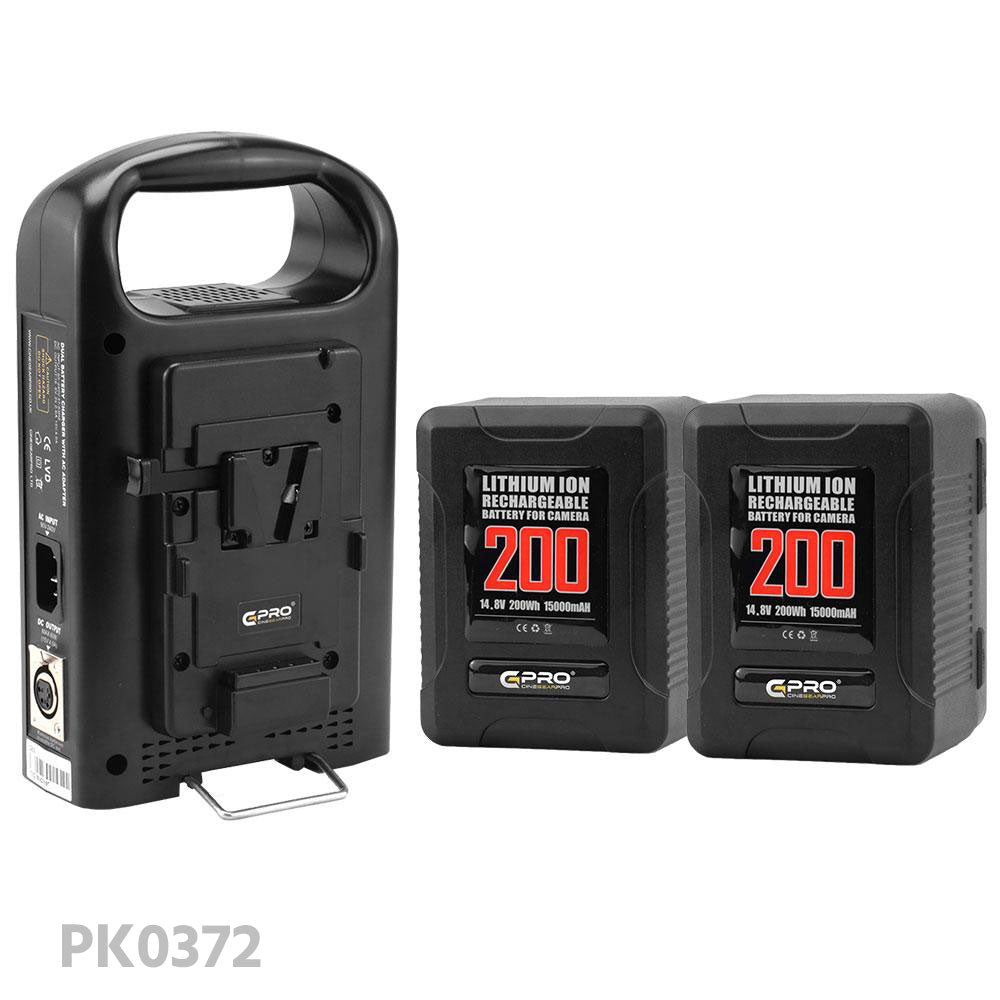

PK0372
2x CGPro 200Wh Ultra Small Size Mini V-Lock Li-Ion V-Mount Battery (531926)
1x CGPRO VC-2CH Dual-channel Charger (532015)

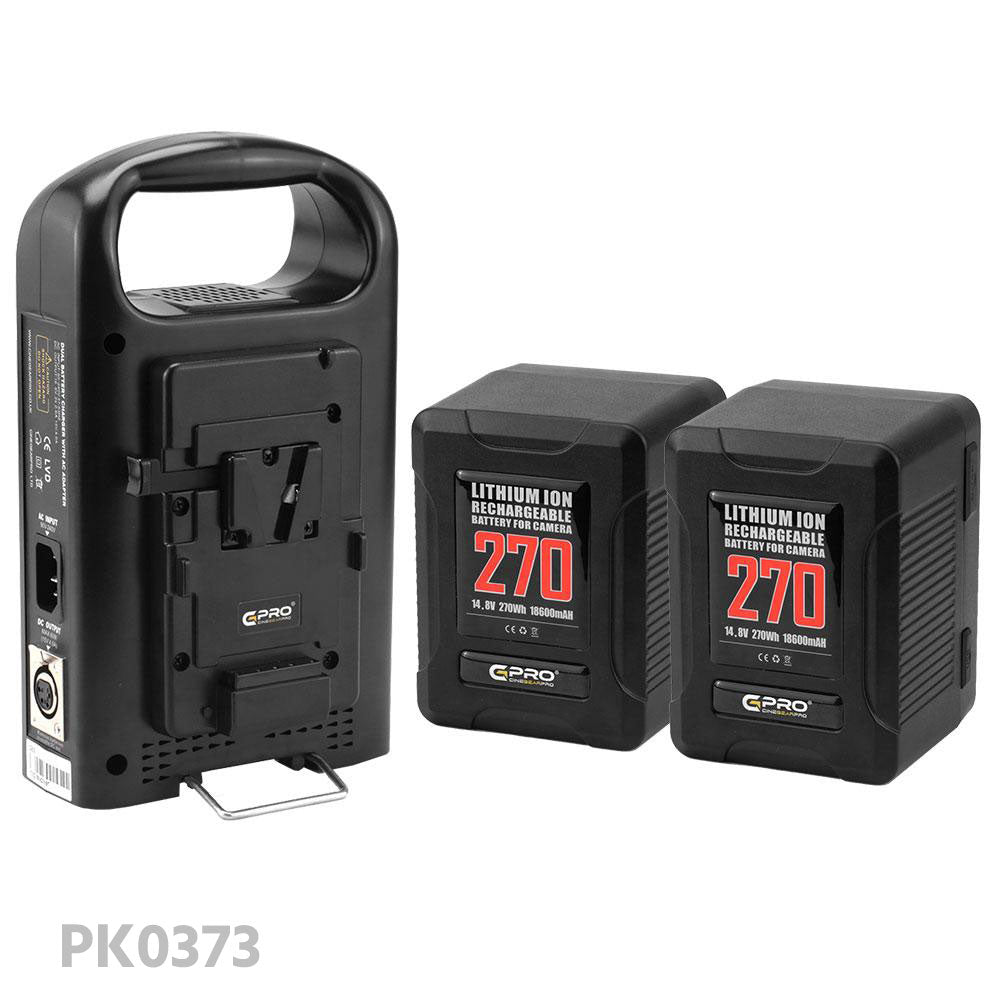

PK0373
2x CGPro 270Wh Ultra Small Size Mini V-Lock Li-Ion V-Mount Battery (531927)
1x CGPRO VC-2CH Dual-channel Charger (532015)
