TiLTA Hydra-Arm Mini Cinema Camera Crane For DJI RS2 / RS3 Pro
- Brand: TILTA
- SKU: HDA-T08-A-V
- Product code:

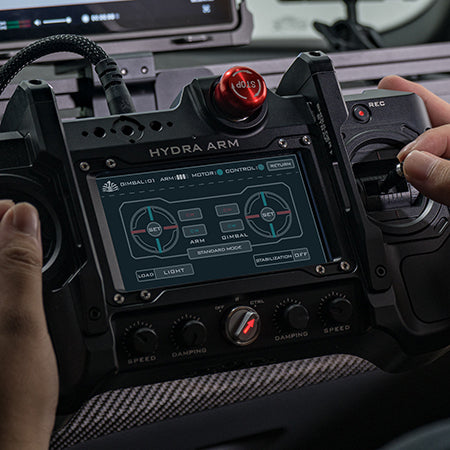

Experience Professional Control Options. Simultaneously operate the Hydra Arm Mini and a gimbal. For joystick modes support multiple control configurations. Achieve masterful camera movement.

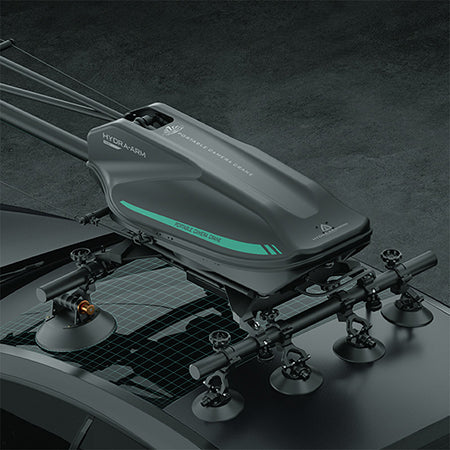

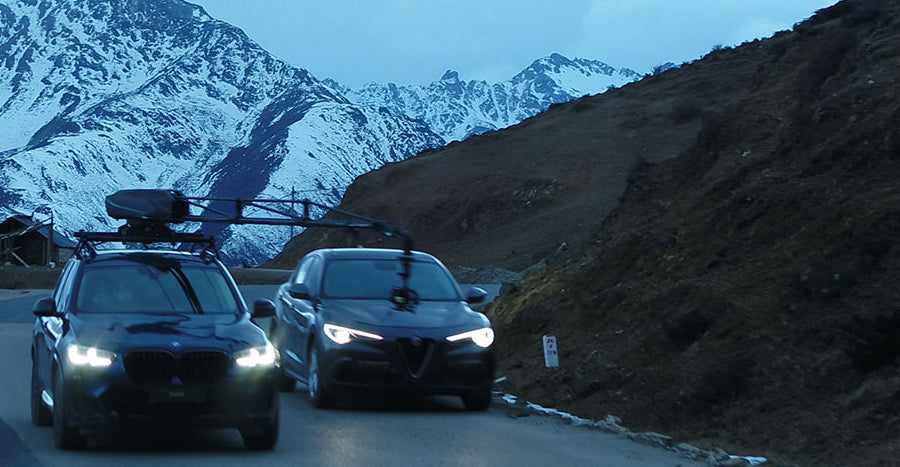

Various installation solutions to support a wide range of car mounting configurations using small and/or large cups.
The mounting brackets are made of high-strength composite carbon fiber material with optimized structural design.

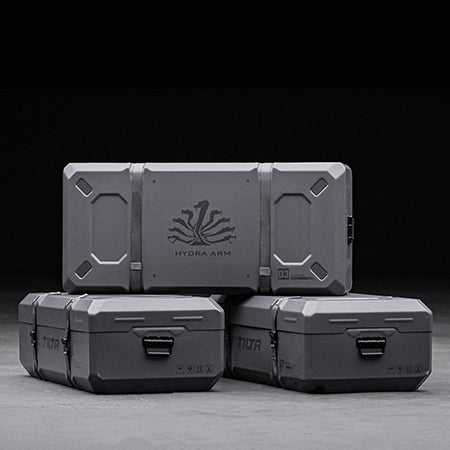

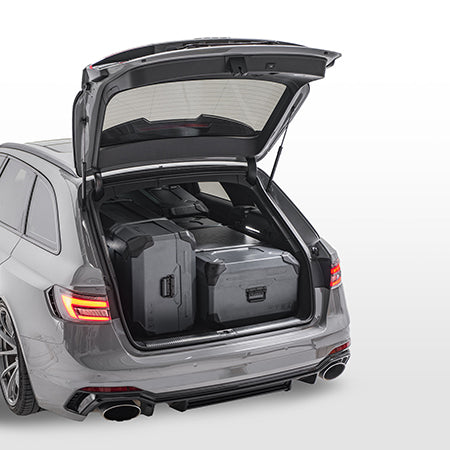

Modular design for quick packing & transportation. Supports quick assembly and efficient packing for camera cars to travel from set to set.
Each case can be made to meet the oversized baggage requirements for most commercial airlines.
WIRED CONNECTION FOR STABLE COMMUNICATION

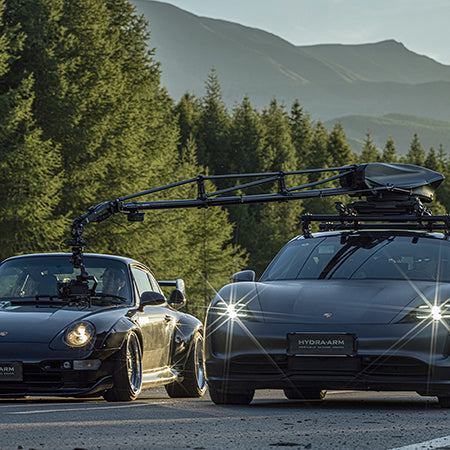

Easily achieve reliable car arm camera movements.

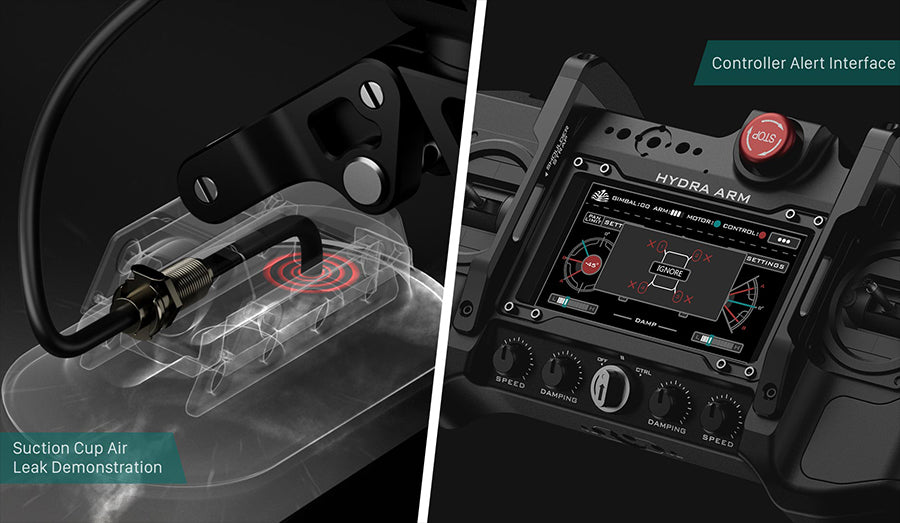

Precise control real time pressure monitoring innovative"Electronic Suction cup smart system"
The controller monitors suction pressure in real time, and provides a suction cup status report to guarantee
the equipment's safety with this optional accessory(coming soon).
TOTAL WEIGHT REDUCTION
155lbs/70kg For less load on the car roof

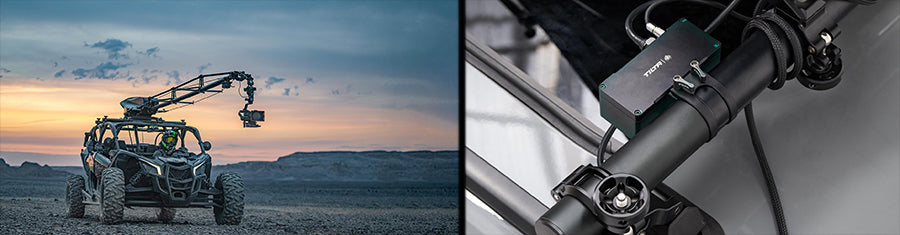

ENDURE EXTREME CONDITIONS. CHALLENGE THE IMPOSSIBLE.

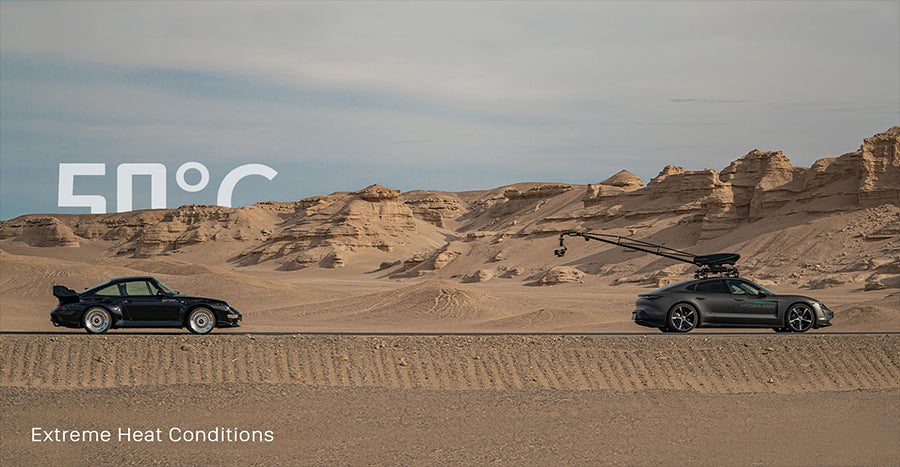

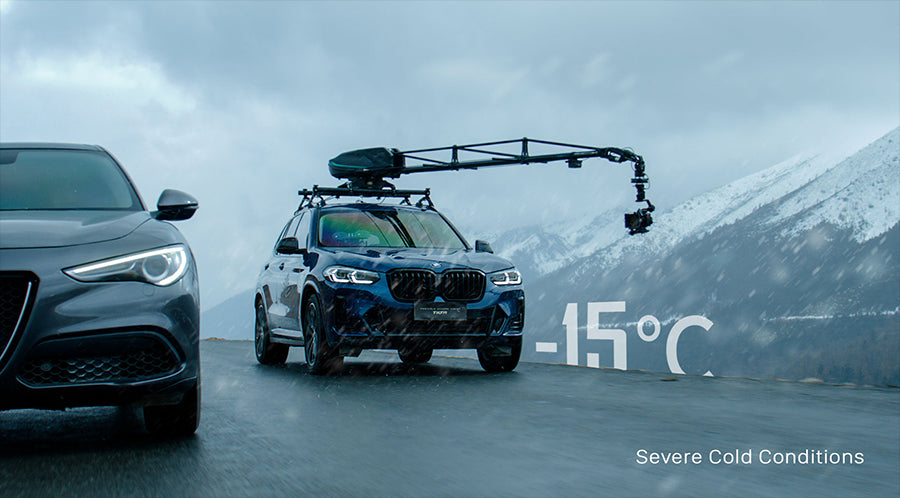

From 122°F(50°C) extreme heat to 13,780ft (4200m) altitude and 5°F(-15°C) severe cold,
Hydra Arm Mini can be operated in a range of working conditions.
HIGH COMPATIBILITY

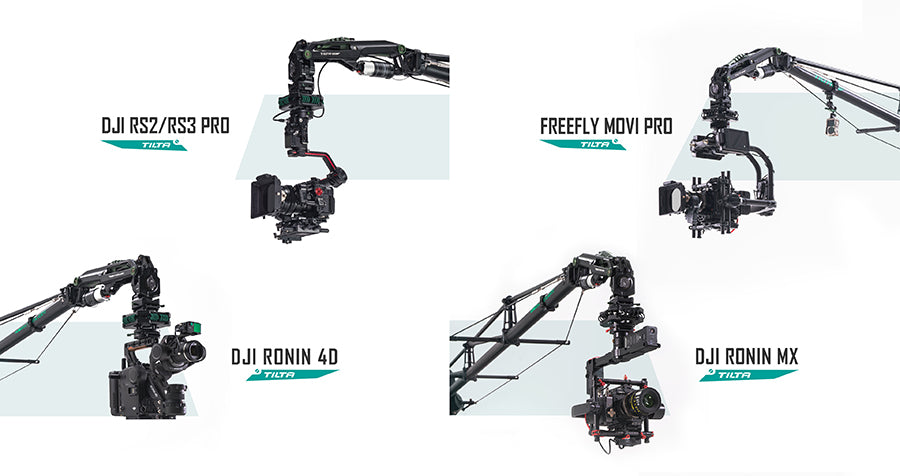

Compatible with DJI Ronin 4D, Ronin MX,RS2, RS3 PRO, Freefly Movi Pro.
Specifications

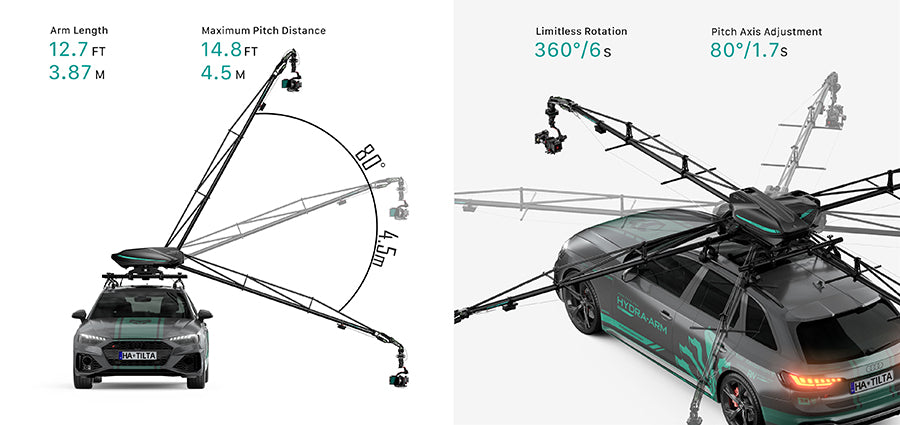

| Arm length | 12.7ft / 3.87m |
| Max pitch distance | 14.8ft / 4.5m |
| Max payload | 22lbs / 10kg |
| Pan speed | 360°/ 6s |
| Pitch adjustment | 80° / 1.7s |
| NET WEIGHT (including base) | 155lbs / 70kg |
| Packaging dimensions | 3.3 x 1.6 x1.3ft / 1x 0.5 x 0.4m |
| Compatibility | DJI RS2, RS3 Pro,Ronin 4D,Ronin MX, Freefly Movi Pro |
Package Contents:
Pro Kit(535131):
1x Pan Axis Module
2x 50mm Speed Rail
4x Suction Cup Support Bracket
1x Monitor Support Bracket for The Front Passenger Seat
2x Suction Cup
2x Articulating Arm
2x Monitor Support Bracket for The Rear Passenger Seat
1x Tilt Axis Module
2x Cable Support Rod
2x Crane Arm Piece I
1x Crane Arm Piece II
1x Shock Absorbing Arm
1x Remote Control
1x Battery Plate for Hydra Arm Mini -V Mount
1x Power Supply Base Plate for DJI Ronin
1x 220V Power Cable
1x Communication Cable
2x Support Cable
1x 2-Pin to P-tap Power Cable
2x Ratchet Strap
1x Tool Set
