PDMOVIE 3D Air Smart Intelligent Spatial/3D Filming System
- Brand: PDMOVIE
- SKU: PD-3DA-S
- Product code:
3D AIR
SOLO 3D FILMING SYSTEM
SOLO 3D FILMING SYSTEM
3D AIR is a lightweight, intelligent, and automated spatial/3D video shooting system. Its inception has completely revolutionized the traditional, heavy, and complex professional 3D filmmaking process, enabling a single person to easily create high-quality spatial/3D videos with outstanding stereoscopic effects.
In today's popular stereoscopic video shooting methods, although smartphone technology can capture 3D videos/spatial videos, the fixed and unadjustable optical axis distance, along with limitations in resolution, frame rate, and other parameters, often result in less than ideal stereoscopic effects. This can occur especially when the shooting distance is too far or too close, and in some cases, a good 3D effect may not be achievable at all.
The advantage of balanced shooting (such as stereoscopic fisheye lenses or balanced shooting systems) lies in wide-angle VR capturing. However, due to their larger horizontal spacing, visual distortion or unnatural stereoscopic effects can often occur when filming non-wide-angle scenes. The increased left-right disparity can lead to a "shock effect," which may cause visual fatigue for viewers during prolonged viewing. Therefore, while both methods are effective 3D shooting solutions, they are not the best choice for professional stereoscopic filmmaking.
Innovative Design
The 3D AIR discards the heavy body, integrating the LiDAR distance measuring module, signal module, 3D stereoscopic image processing module, electronic control module, and power supply module within the sunshade. By using locking components, the two sets of lenses and the camera are combined on the sunshade, eliminating the need for complex installation and setup steps.
Nano-Grinded Lenses
Generally, the image clarity of DSLR lenses rapidly declines beyond 70mm focal length, becoming unusable above 120mm. While lenses may appear smooth, they remain rough and uneven at the nanometer level. To address this, the DSLR lenses in 3D AIR are specially crafted using nanometer grinding technology, ensuring that images reflected at focal lengths above 200mm are sharp and clear.
Aerospatial-Grade Lightweight Material
The 3D AIR features an innovative design that combines magnesium-aluminum alloy and carbon fiber, offering multiple advantages such as lightweight, high strength, and corrosion resistance. This material combination is commonly found in high-performance components for aircraft and automobiles, providing 3D AIR with exceptional portability and durability. The magnesium-aluminum alloy is lightweight yet sturdy, with excellent heat dissipation and impact resistance, while carbon fiber boasts high rigidity and fatigue resistance, ensuring lasting strength and stability while maintaining a lightweight design. To better suit individual operators, we strictly control the weight of the 3D AIR, minimizing the user's burden and enhancing energy efficiency for a more effective user experience.
Portable and Easy to Carry: Say No to Overweight Operations
Weighing only 1159g, the 3D AIR is up to seven times lighter than traditional spatial video shooting products, with an overall size reduction of eight times. This makes mobile shooting easier and transportation more convenient.
Two Models
The 3D AIR is available in two versions: the 3D AIR SMART and the 3D AIR SMART MINI. The two models differ slightly in viewing angles, adjustable optical axis range, and appearance, allowing users to choose based on their shooting needs.
Viewing Angle Range
The maximum vertical viewing angle is 45.7 degrees, while the maximum horizontal viewing angle is 73.7 degrees, equivalent to a full-frame lens of 24-32mm.
Optical Axis Range
The adjustable optical axis range for the 3D AIR SMART is 0-60mm; the 3D AIR SMART MINI has an adjustable optical axis range of 0-46mm.
2KG * 2
3D AIR SMART / SMART MINI
Max Load Capacity
LiDAR Assistance for Enhanced Intelligence
SYNC Autofocus
SYNC Autofocus
Automatic 3D effect adjustment
AI Rapid Smart Algorithm
Our AI high-speed intelligent algorithm is innovatively developed based on over a decade of Remote Air APP user-accumulated lens data, combined with the extensive AI lens data processing experience from Motor Smart products in real-world applications. This algorithm can simulate and accurately identify the focal positions of lenses with varying focal lengths. By calculating the optimal stereo depth data for each lens based on focal distances, it enables automatic adjustment of the stereoscopic effect. Paired with high-precision refractive lenses crafted using nanometer-level grinding technology, it significantly enhances the convenience, efficiency, and accuracy of 3D shooting.
Scanning Rate Comparison
AI Human-Eye Imitation Technology
The 3D AIR is equipped with AI human-eye imitation technology, offering three preset levels of stereoscopic effects—strong, medium, and comfortable—as well as three focus speeds—fast, medium, and slow—to adapt to different shooting scenarios and needs. It supports saving five sets of lens data for quick resumption of shooting after lens changes.
Automatic Stereoscopic Depth Adjustment with Multi-Axis Coordination
During the simultaneous operation of optical axis distance and focus, the focus and convergence angle are interconnected, with the focus position serving as the convergence point. You can easily determine positive disparity (out-of-screen effect) and negative disparity (in-screen effect) based on the position of the focus, making it easier to capture stunning stereoscopic images.
Manual Control
The 3D AIR allows for manual control of the optical axis and focus synchronization through a connected controller. If you prefer not to use the automation feature, you can still choose the manual control mode. Manual control supports multi-axis synchronized interaction and allows the decoupling of focus from the convergence angle and optical axis distance, enabling finer control.
Boundless Interaction: Explore Infinite Possibilities
Built-in 3D Image Composition Processing System
The 3D AIR captures signals from two cameras, synthesizing and processing them to output a single video signal for effect monitoring of the stereoscopic effect. It supports various HD and even 4K formats of stereoscopic video signals. Whether using standard monitors, 3D monitors, AR glasses, or MR headsets, users can monitor the 3D effects in real time.
1920 * 1080 60P Anaglyphic 3D
This format allows stereoscopic effects to be viewed directly on standard monitors by wearing red-blue glasses.
1920 * 1080 60P Half Side by Side
This format can be displayed on traditional devices such as 3D monitors, televisions, and projectors to view the stereoscopic effects.
1920 * 1080 60P Side by Side(Cut)
This format is used for mechanically correcting the offset between the two camera images and calibrating the focus of both cameras.
3840 * 1080 30P Full Side by Side
This format enables viewing stereoscopic effects using head-mounted devices like Vision Pro and Thunderbirds.
3840*1080 Full side by side
Shoot and Use Immediately
During the shooting process, in addition to the internal recording material from the two cameras, video signals can also be output through the 3D composition processing system. This allows for external recording using popular external recorders or monitors with recording capabilities, skipping the post-production editing process and instantly obtaining 3D footage. It can be used for playback during shooting to review the stereoscopic effects or for a series of pre-editing tasks.
Streamline and Accelerate the Process
Click to view or download more sample formats
Multi-Compatibility
The 3D AIR supports most small cameras, camcorders, and lenses, allowing you to combine and use them based on your needs.
3D/Spatial Photos
In addition to video shooting, the 3D AIR can help you capture stunning 3D/spatial photos. You can also use the 3D AIR for various fun and creative long-duration time-lapse shots.
The 3D AIR comes standard with 10 lens thread inner rings, including 58mm, 67mm, 72mm, and 77mm. If you need other sizes, such as 49mm, 52mm, 55mm, 62mm, or 82mm, they are available.
The 3D AIR includes four lens supports, allowing you to pre-install two sets of lenses for easy switching during shooting.
Quick Installation Process
Install Lens Inner Rings - Install Lens Supports - Lock Camera to 3D AIR View Complete Tutorial Video View Complete Tutorial Video
Quick Screen Calibration
Start 3D Synthesizer - Adjust Screen Rotation Angle - Align Screen Vertically View Complete Tutorial Video
Quick Editing and Output
Import Edited L and R Material - Synthesize 3D Format Project File and Automatically Align 3D Images - Output 3D Video Format Film View Complete Tutorial Video
Function Ports
Package Contents:
3D Air Smart Mini Only PD-3DA-S(538474):
1x 3D AIR SMART MINI
1x PDL-TC-AFX
4x Lens Supports
8x Lens Supports Nuts
10x Lens Inner Rings
1x Lens Hoods
2x Li-42Bx3 Battery
2x LIR2477
1x Universal Battery Charger
3x Battery Boost Stickers
1x Lens Marking Stickers
1x LR Stickers
2x USB-C Cable 0.3m
1x USB-C Cable 0.5m
3x Micro HDMI Cable
4x 5&10cm Rod
2x Lens Cleaning Cloth
2x Anaglyphic Glasses
1x Screws & Hex Key Set
1x Calibration Card
1x Manual
1x Dedicated Storage Bag

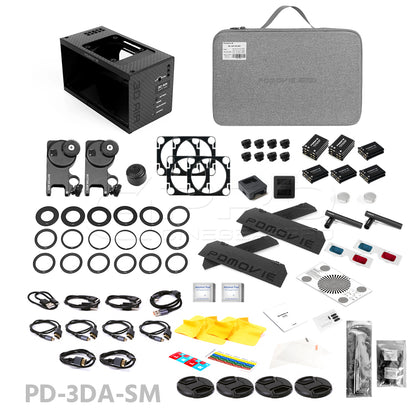

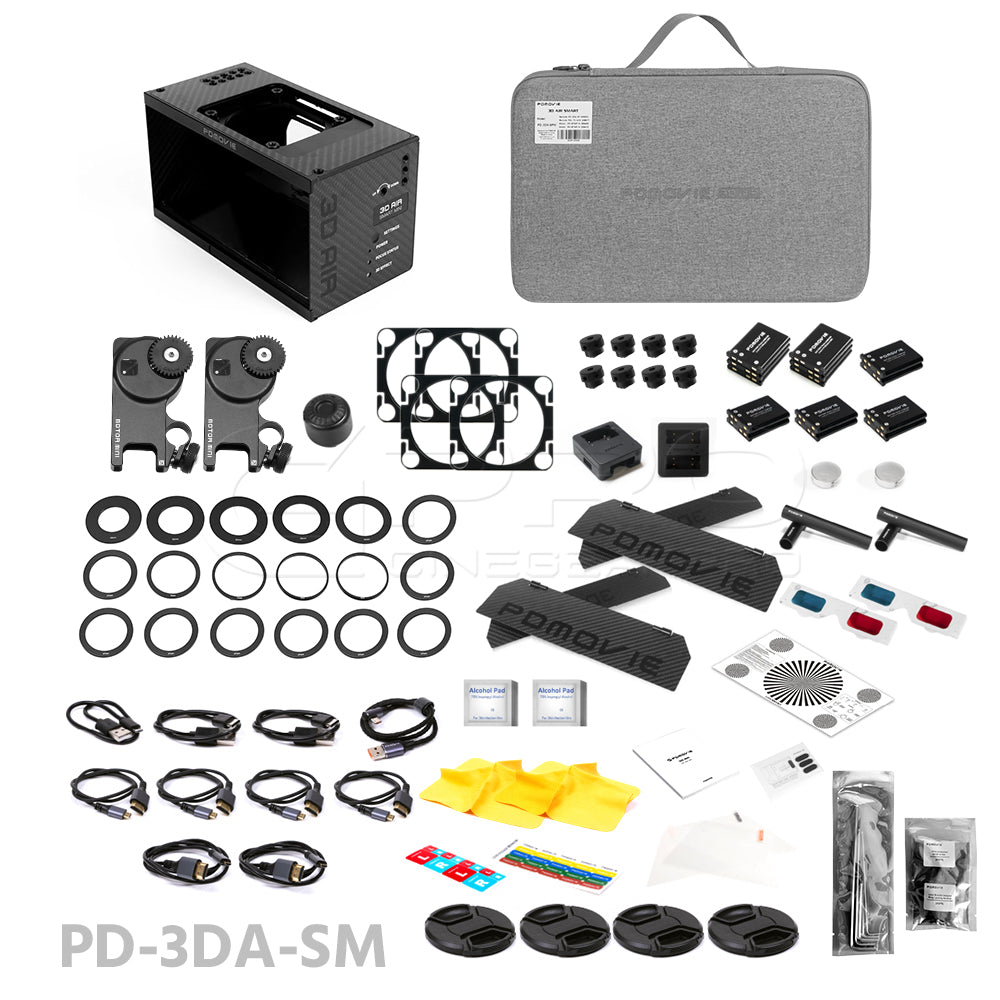

3D Air Smart Mini Motor Kit PD-3DA-SM(537649):
1x 3D AIR SMART MINI
2x PD-BTMP-N
1x PDL-TC-AFX
4x Lens Supports
8x Lens Supports Nuts
10x Lens Inner Rings
1x Lens Hoods
2x Li-42Bx3 Battery
4x Li-42Bx2
2x LIR2477
1x Universal Battery Charger
1x Li-42Bx2 Charger
3x Battery Boost Stickers
1x Lens Marking Stickers
1x LR Stickers
3x USB-C Cable 0.3m
1x USB-C Cable 0.5m
3x Micro HDMI Cable
4x 5&10cm Rod
2x Lens Cleaning Cloth
2x Anaglyphic Glasses
1x Screws & Hex Key Set
1x Calibration Card
1x Manual
1x Dedicated Storage Bag
3D Air Smart PD-3DA-SP(538475):
1x 3D AIR SMART
1x PDL-TC-AFX
4x Lens Supports
8x Lens Supports Nuts
10x Lens Inner Rings
1x Lens Hoods
2x Li-42Bx3 Battery
2x LIR2477
1x Universal Battery Charger
3x Battery Boost Stickers
1x Lens Marking Stickers
1x LR Stickers
2x USB-C Cable 0.3m
1x USB-C Cable 0.5m
3x Micro HDMI Cable
4x 5&10cm Rod
2x Lens Cleaning Cloth
2x Anaglyphic Glasses
1x Screws & Hex Key Set
1x Calibration Card
1x Manual
1x Dedicated Storage Bag

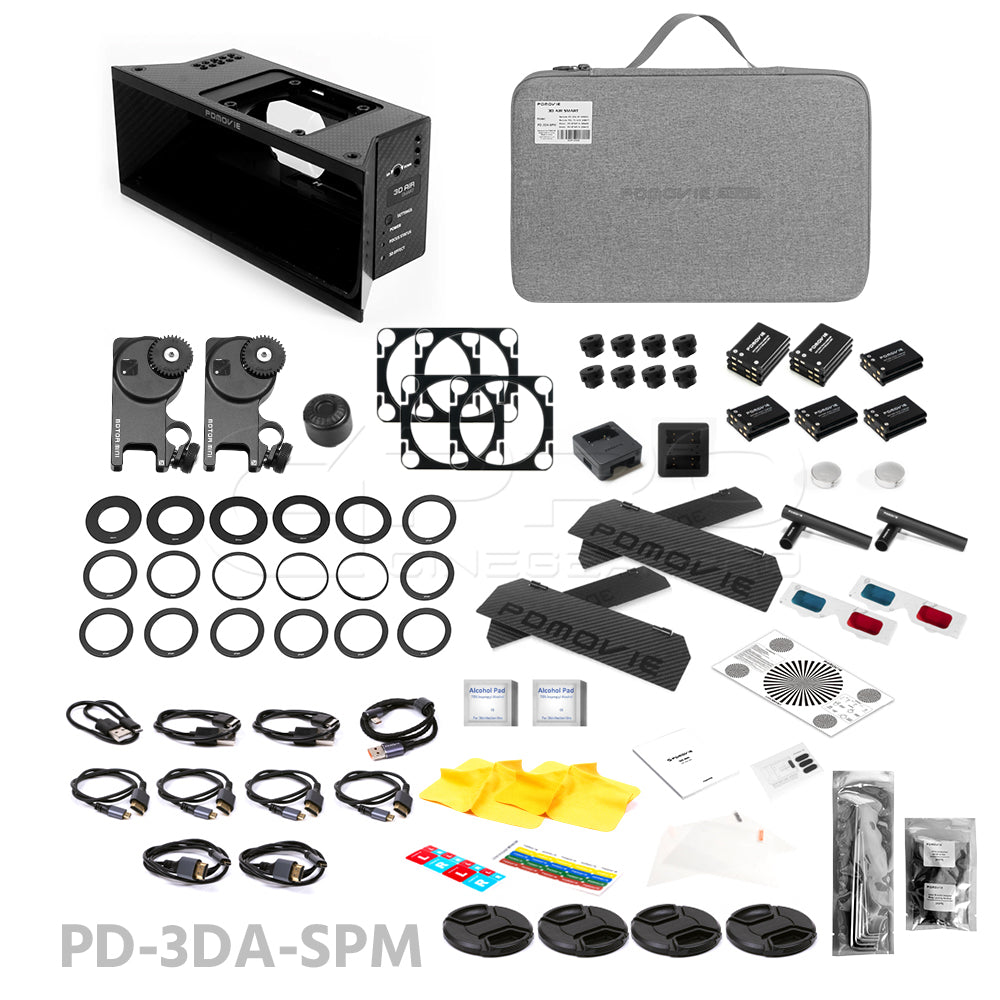

3D Air Smart Motor Kit PD-3DA-SPM(538476):
1x 3D AIR SMAR
2x PD-BTMP-N
1x PDL-TC-AFX
4x Lens Supports
8x Lens Supports Nuts
10x Lens Inner Rings
1x Lens Hoods
2x Li-42Bx3 Battery
4x Li-42Bx2
2x LIR2477
1x Universal Battery Charger
1x Li-42Bx2 Charger
3x Battery Boost Stickers
1x Lens Marking Stickers
1x LR Stickers
3x USB-C Cable 0.3m
1x USB-C Cable 0.5m
3x Micro HDMI Cable
4x 5&10cm Rod
2x Lens Cleaning Cloth
2x Anaglyphic Glasses
1x Screws & Hex Key Set
1x Calibration Card
1x Manual
1x Dedicated Storage Bag

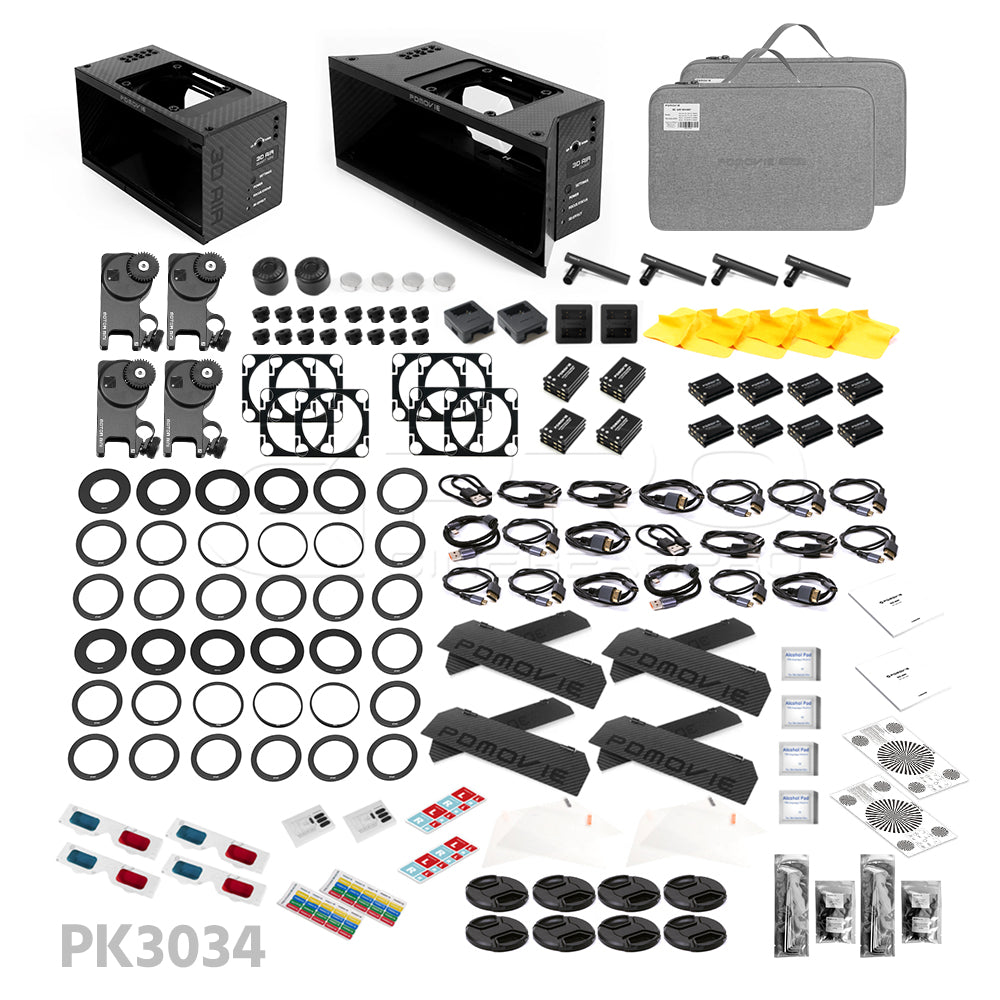

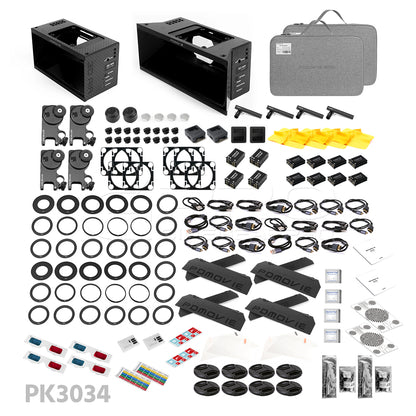

3D Air Smart Mini + 3D Air Smart Motor Kit(PK3034)
1x PD-3DA-SM(537649)
1x PD-3DA-SPM(538476)
