OSEE Mega 22S Production Monitor 21.5'' Color Self-Calibration 1500 nits Brightness Camera Field Monitor
- Brand: OSEE
- SKU: Mega 22S
- Product code:
Thoughtful Detail Design , Benefit for Life
Detail 1
There are 4 Mounting Holes on the front to install the protective screen without disassembly.
Detail 2
The latest-designed C-Stand Adapter allows you to mount it on the stand with one hand.
Specifications:
|
Panel Size |
21.5inch |
|
Resolution |
1920X1080 |
|
Brightness |
1500nits |
|
Contrast |
1100:1 |
|
Color bit Depth |
10 bits |
|
Video IO |
2x3G/HD/SD-SDI signal inputs/outputs, 1x4K@30HDMI input |
|
SDI Format |
2K (2048x1080): 23.98/24/25/29.97/30/50/59.94/60P, 23.98/24/25/29.97/30Psf |
|
HDMI Format |
4K (4096x2160): 23.98/24/25/29.97/30P |
|
Other IO |
USB Type-A x1: 3D-LUT upload, firmware upgrade |
|
3D-LUT, Camera Log |
3D-LUT: 10 User 3D LUTs |
|
Power Supply |
100-240V (50/60Hz) AC / 11~17V/5A (XLR Pin4) |
|
Power Consumption |
46W |
|
Framing Tools |
Aspect; Safe; Center; Crosshatch; Anamorphic |
|
Exposure Tools |
False Color; Zebra; Waveform; Vector; Histogram |
|
Focus Tools |
Focus Assist; Peaking |
|
Other Tools |
DE-LOG; MULTI-SCOPES; Display Rotate; Audio Meter (Only SDI); Time Code (Only SDI) |
|
Weight |
6.4Kg |
Package Contents:
Basic Kit(537807)
1x Mega 22S
1x Dedicated foam for Pelican 1600
1x Sun hood
1x Battery plate (V or AB)
1x C-stand adapter
1x Power cable
1x Cheese Plate

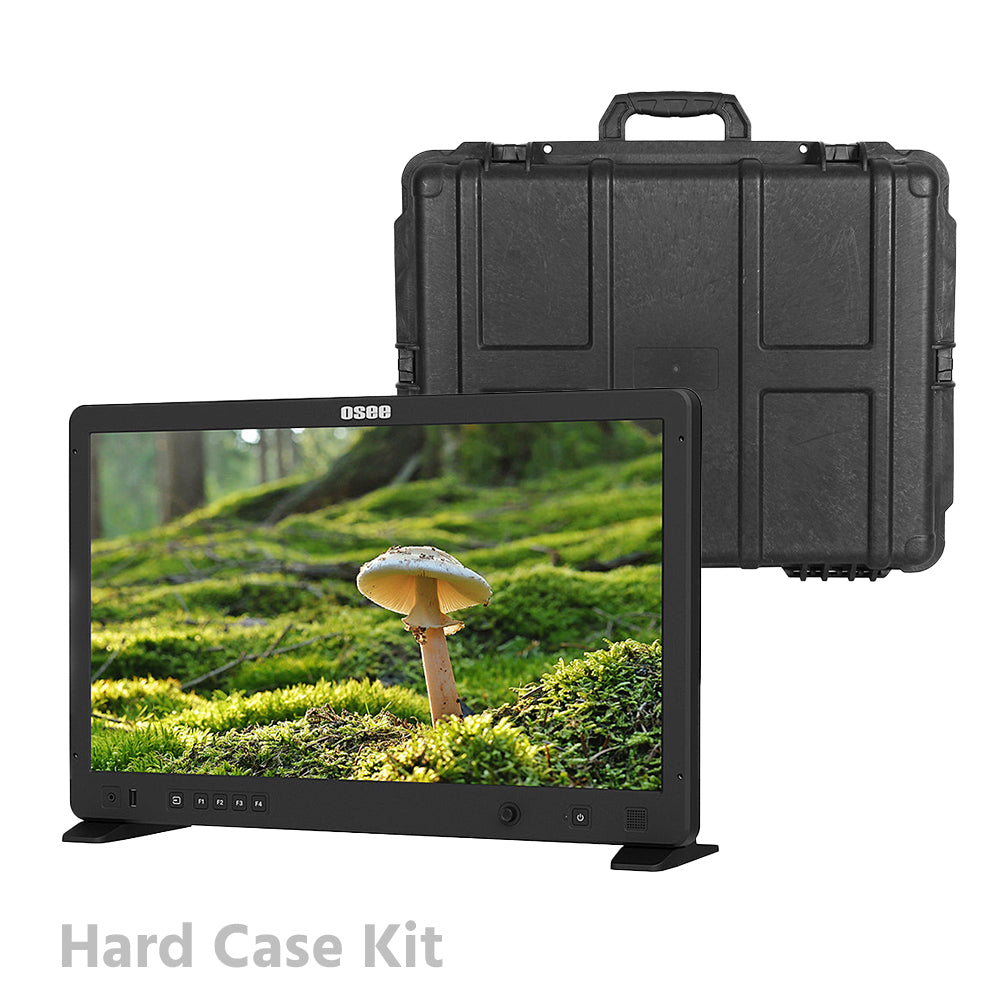

Hard Case Kit(PK2869)
1x Basic Kit(537807)
1x Hard case(537986)
