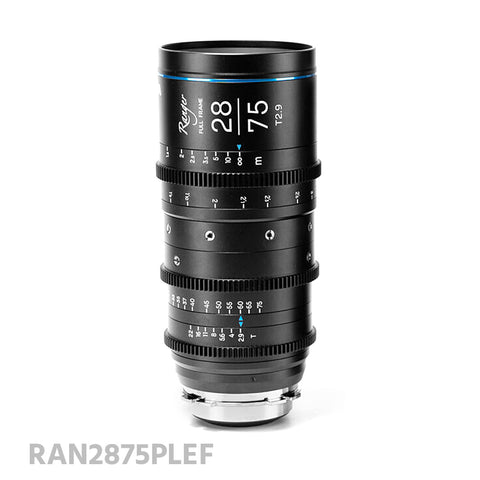

Laowa Ranger 28-75mm T2.9 Compact Full-Frame Cine Zoom Lens
- Brand: Laowa
- SKU: RAN2875PLEF
- Product code:
The Ranger boast a long versatile zoom range with more than 6.4x zoom ratio in total, with around 1.4kg／3.08lbs incredibly lightweight, allowing filmmakers to capture breathtaking shots with exquisite details at both ends of the spectrum effortlessly. Filmmakers can experience the convenience of the parfocal design, and can also enjoy focus transition with almost no focus breathing. The extremely close focus distance of 0.49m/1’6″ and 0.89m/2’9″ respectively allows for captivating close-up shots. Crafted with professional cine housing, these lenses provide the on-site friendly built-in back focus adjustment system, offering a smooth and reliable shooting experience. The Ranger cine zoom lenses are the ultimate user-friendly tools for capturing stunning cinematic masterpieces.
FULL-FRAME COVERAGE
The lenses come with a Ø 43.2mm image circle, supporting full-frame and s35 cameras.
LONG AND VERSATILE ZOOM RANGE
The 28-75mm focal length performed a 2.7x zoom ratio, and the 75-180mm focal length with a 2.4x zoom ratio. You can now have a variety of choices for your story framing: go wider to reveal a stunning landscape or go further to witness the motion of a specific object. Any frames that is possible to enrich your film can be done with the Ranger.
Constant T2.9 Aperture
Ranger offers a T2.9-T22 aperture range. The lenses maintain a constant T2.9 aperture throughout their zoom range, eliminating the need for exposure compensation when you zoom in. You can work with the lenses in dim light environment effortlessly.
Time for a footloose experience of filming. Simply pair it with your gimbal, car rigs, shoulder rigs, etc., or even shoot with handheld, to get all kinds of scenes for your film.
EXTREMELY CLOSE FOCUSING DISTANCE
0.49m/1’7″ closest focusing distance for the 28-75mm, 0.89m/2’11” closest focusing distance for the 75-180mm.
All the desirable details can be captured, and preserved with a decent depth of field.
Let your lens become a powerful tool for evoking emotions by capturing the subject’s essence intimately.
You are able to keep the object in focus whenever zooming in or out,
even shoot with the intense zoom at ease without focusing off.
The amount of breathing can be well contained for you to have a seamless focus shifting.
PROFESSIONAL CINE HOUSING
BUILT-IN BACK FOCUS ADJUSTMENT – No more redundant shimming process is needed,
you can have simple and easy focus calibrating on site.
0.8 MOD GEAR – For both aperture and focus ring
DUAL SCALE DESIGN – Both imperial and metric scales are available on the lens
UNIFIED GEAR POSITION – All Ranger lenses can be switched quickly between focal lengths to work with the same set of gears
80MM OUTER DIAMETER AND 77MM FILTER THREAD – Designed to accommodate the common matte boxes or filters
LENS SUPPORTING THREAD – To have your tripods and gears screwed into the right place and distance needed
270° FOCUS THROW & 100° ZOOM THROW – Support a finer and more accurate degree of change in such versatile focal distance
Specifications:
|
Focal length |
16-30mm |
28-75mm |
75-180mm |
|
Aperture range |
T2.9-22 |
||
|
Format |
Full Frame |
||
|
Image circle diameter |
Ø43.2mm |
||
|
Angle of view |
107°-71.6° |
75.4°-32.2° |
32.2°-13.7° |
|
Zoom Ratio |
1.875X |
2.7X |
2.4X |
|
Lens structure |
18 elements in 12 |
22 elements in 18 groups |
17 elements in 14 groups |
|
Aperture blades |
11 |
||
|
Aperture throw |
42° |
||
|
Zoom throw |
100° |
270° |
100° |
|
Focus throw |
100° |
270° |
270° |
|
Min. focusing distance |
33cm/ 1’1’’ |
49cm/ 1’7’’ |
89cm/ 2’11’’ |
|
Focus indicator |
Metric & Imperial (Dual Scale) |
||
|
In-focus driving mode |
Manual (MF) |
||
|
Max. Magnification |
0.145X |
0.23X |
0.217X |
|
Gear mod |
0.8 Mod |
||
|
Dimensions for Filter Thread |
Ø77mm |
||
|
Front Diameter |
Ø80mm |
||
|
Dimensions |
Ø80*107.4mm/ |
Ø84.8*179.3mm/ 3.34’’*7.06” |
Ø84.8*189.5mm/ 3.34’’*7.46’’ |
|
Weight |
Standard:~799g/~1.76lbs Lite: ~738g/~1.63lbs |
Standard: ~1416g/~3.12lbs Lite: ~1264g/~2.8lbs |
Standard: ~1339g/~2.95lbs Lite: ~1226g (~2.7lbs) |
|
Mounts |
ARRI PL (Optional: Canon EF, Canon RF. Sony E, Nikon Z, L Mount) |
||
Package Contents:
1x Laowa Ranger 28-75mm T2.9 Compact Full-Frame Cine Zoom Lens
