REVLUTIONARILY TINY
SUPER35 + COVERAGE
MORE FLARE OPTIONS
2 Flares options are available, Blue & Amber. Anamorphic lenses with blue flares are very common in the market and they fit perfectly with a sci-fi and cooler vibe . However, they do not necessarily go well with human skin tones. The new amber option we introduced, could deliver a warmer and passionate vibe which is suitable for narrative and day/night shots.
CINEMATIC WIDESCREEN
From 16:9 to cinematic 2.4:1 widescreen
With a 1.5x squeeze, you will have a 2.66:1 on a 16:9 sensor after de-squeeze. Comparing to 1.33x anamorphic lens, Laowa Nanomorph delivers a much more pronounced anamorphic & cinematic look. For 1.8x/2x squeeze, the lens will become huge and a lot more image will be wasted when pairing with 16:9 sensor.
CINEMATIC OVAL BOKEN
A 1.5x squeeze ratio also renders stretched oval bokeh which gives an artistic touch to the image.
SHORT FOCUSING DISTANCE
Anamorphic lenses tend to have longer closest focusing distance due to restriction of optical design. Nanomorph has one of the Shortest Close Focusing Distance among all anamorphic lenses in the market. Filmmakers could obtain a very close-up shots which renders much shallower depth of field and stronger bokeh. This offers a much higher flexibility in framing.
(From the subject to sensor)
Nanomorph 27mm T2.8 1.5x Cine - 43cm / 16.9"
Nanomorph 35mm T2.4 1.5x Cine - 60cm / 23.6"

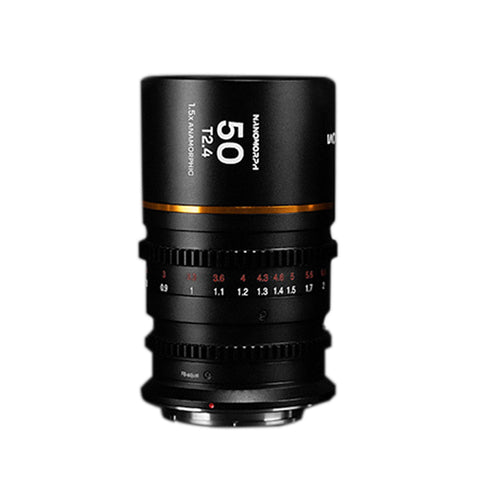

Nanomorph 50mm T2.4 1.5x Cine - 70cm / 27.5"
NO ANAMORPHIC MUMPS
In some cheaper anamorphic lenses with synchro focus design in the market, the squeeze ratio varies when focus close and hence changes the actual size of the subject. That's what we called anamorphic mumps. There is no way to correct in post and is not usable in professional shootings. Our Nanomorph guarantees a constant squeeze ratio at ALL focusing distance.
NEW PATENTED ANAMORPHIC STRUCTURE
For cheaper anamorphic lenses, anamorphic mumps made the lens un-usable at closer distance (e.g. a 1.8x lens will become 1.62x when focused at 4m). For more professional design out there, the lens is bulky and costs a fortune. That's the reason why Laowa decided to develop and invented this unique patented anamorphic design to guarantee a uniform squeeze ratio, promising optical quality, tiny size and affordable price which solves the struggles of every anamorphic user.
The anamorphic blocks are put behind the spherical elements and the focusing groups. These two groups compress the image, and hence the smaller anamorphic blocks can be used, which makes the lens tinier. Moreover, the image is formed and focused before the anamorphic blocks which maintains a constant squeeze ratio no matter if the focus changes.
CINE LENS HOUSING
Unified gear position
The unified gear position allows users to switch lenses quickly and without readjustment on the focus gear.
55mm filter thread for screw-in filters
55mm filters can be attached directly on the lens which filmmakers can combo a handy set-ups. It is favorable when doing a Run-And-Gun shot or flying it with a drone.
0.8 Mod Gear
Industry standard 0.8 mod gear is installed on both aperture and focus rings.
Flange adjustment
Filmmakers could fine tune the back focus quickly by a 0.9mm hex key (included in the package), which ensures the scale is still accurate and aligned after changing cameras.
Dual Scale
Both imperial and metric scale are printed on the lens body.
