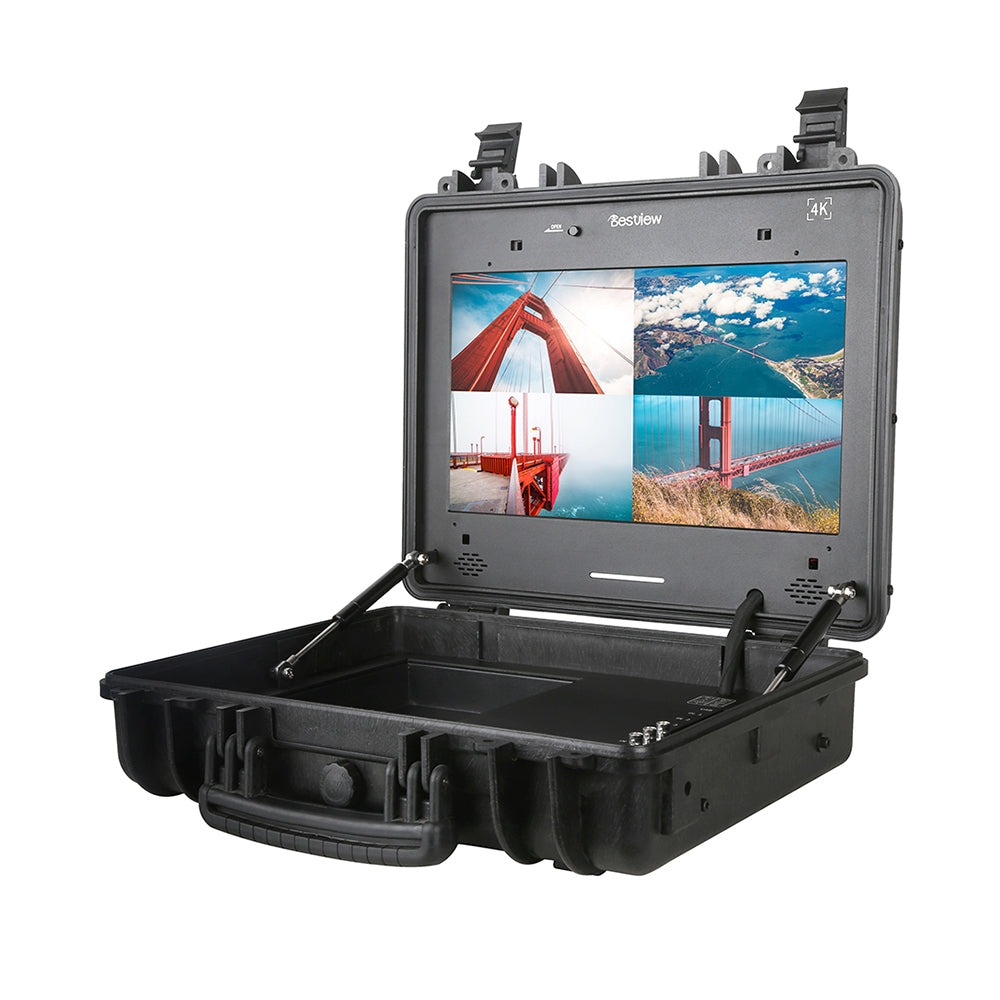

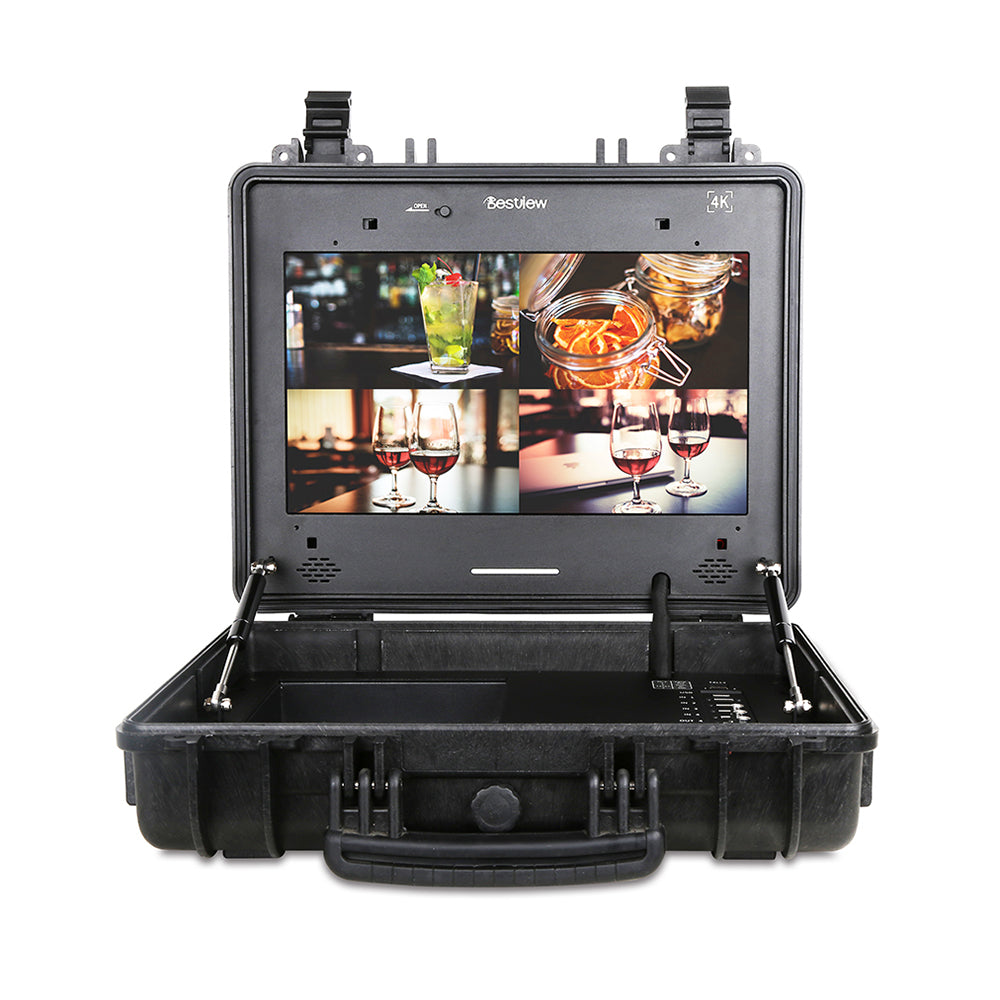

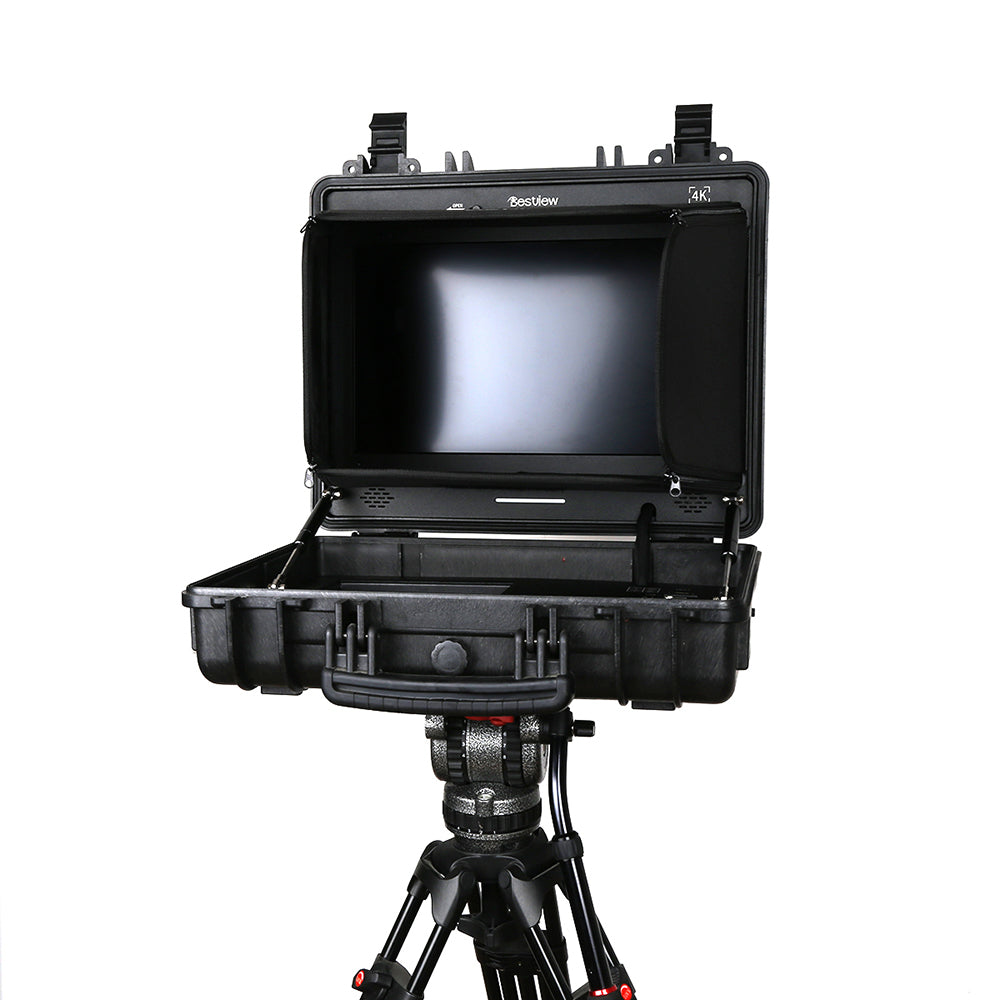

Desview SP17-HDR 17.3’’ UHD 4K HDMI Quad-split Broadcast Monitor
- Brand: Desview
- SKU: SP17-HDR
- Product code:
• 17.3 inch 4K display panel
• UHD resolution 3840*2160
• HDR function
• 4xHDMI input,1x HDMI output
• 2x 3G-SDI input,1x 3G-SDI output • 1000:1 contrast ratio
• 178 degree viewing angle
• 400nit brightness
• PIP/PBP capable
• Battery information display
• Professional color calibration
• Build in 3D-LUT(SMPTE/EBU/REC709/DCI-P3) • Gamma selection(2.4/2.6)
• Video assist functions
Specifications:
Screen Parameters
|
Screen Size |
17.3 inch |
|
Resolution |
3840*2160 |
|
Display area |
382.12(W) ×214.94H)mm |
|
Contrast Ratio |
1000:1 |
|
Brightness |
400nit |
|
Viewing Angle |
178°(H/V) |
|
Backlight |
LED |

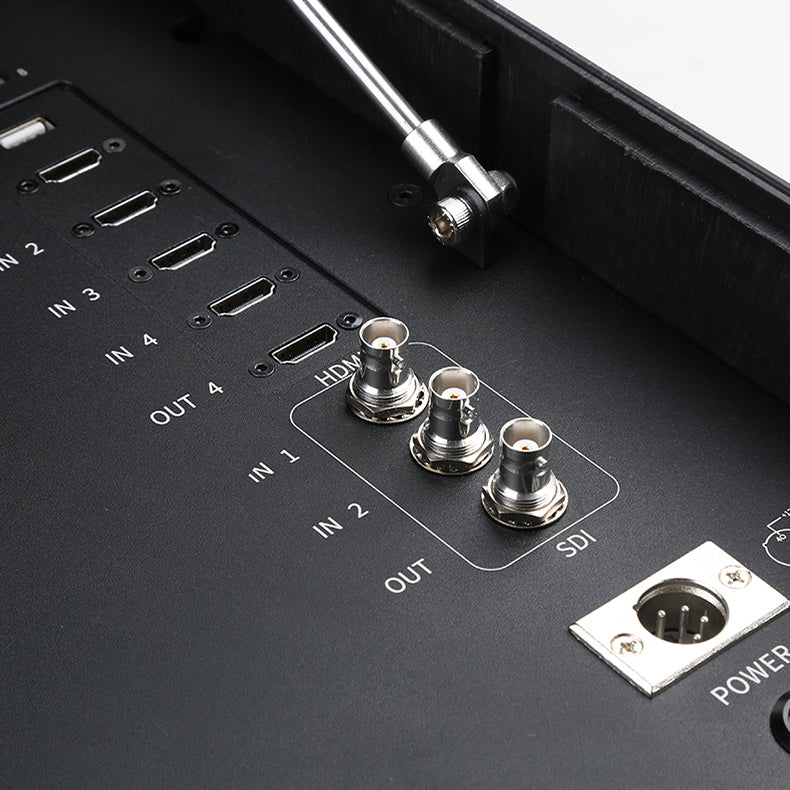

Signal Interface
|
Input |
|
|
2x HDMI2.0(1/2) |
2x 3G-SDI(1/2) |
|
2x HDMI1.4 (3/4) |
|
|
Output |
|
|
1x HDMI(4) |
1x 3G-SDI |
|
Audio Input / Ouput |
|
|
Speaker out x2 |
3.5mm Headphone Jack |
Signal Format
|
HDMI |
720*480i&720*480p @59.94, 60Hz |
|
3G-SDI |
720*480i @59.94, 60Hz |
Other Parameters
|
Installion |

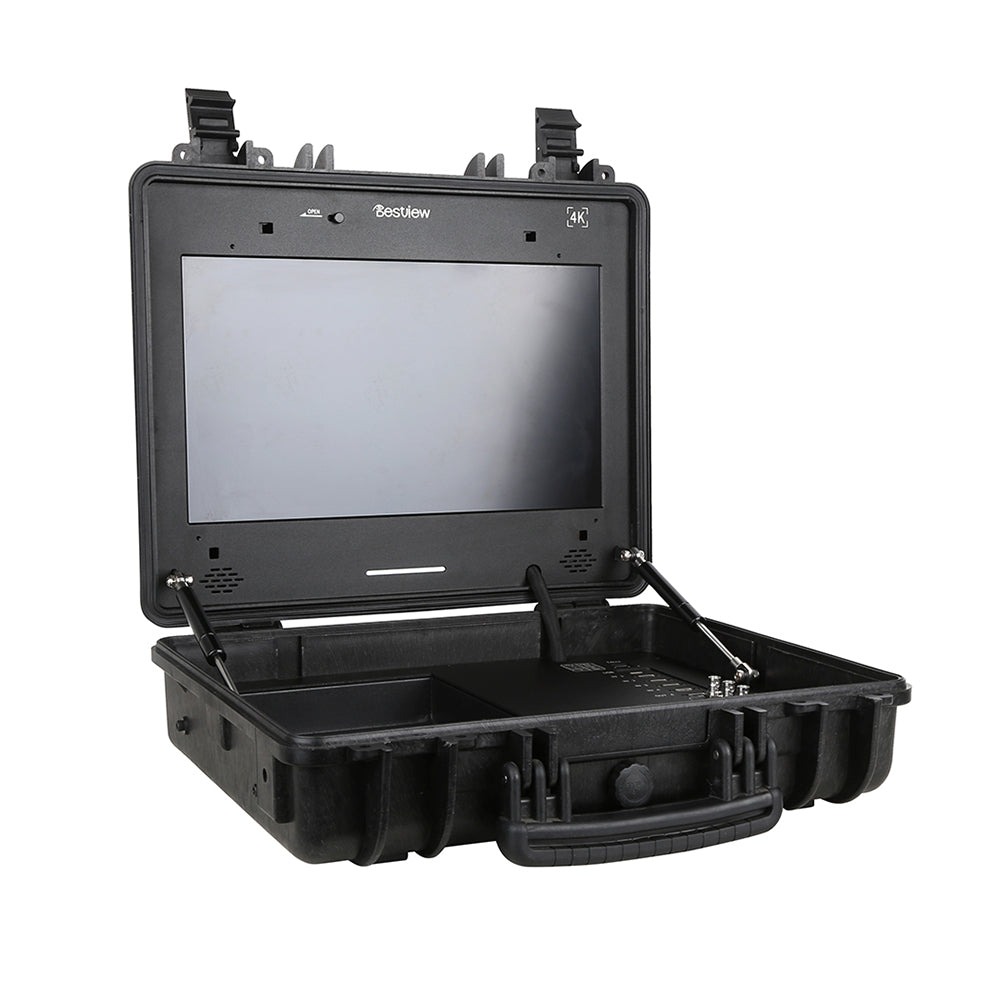

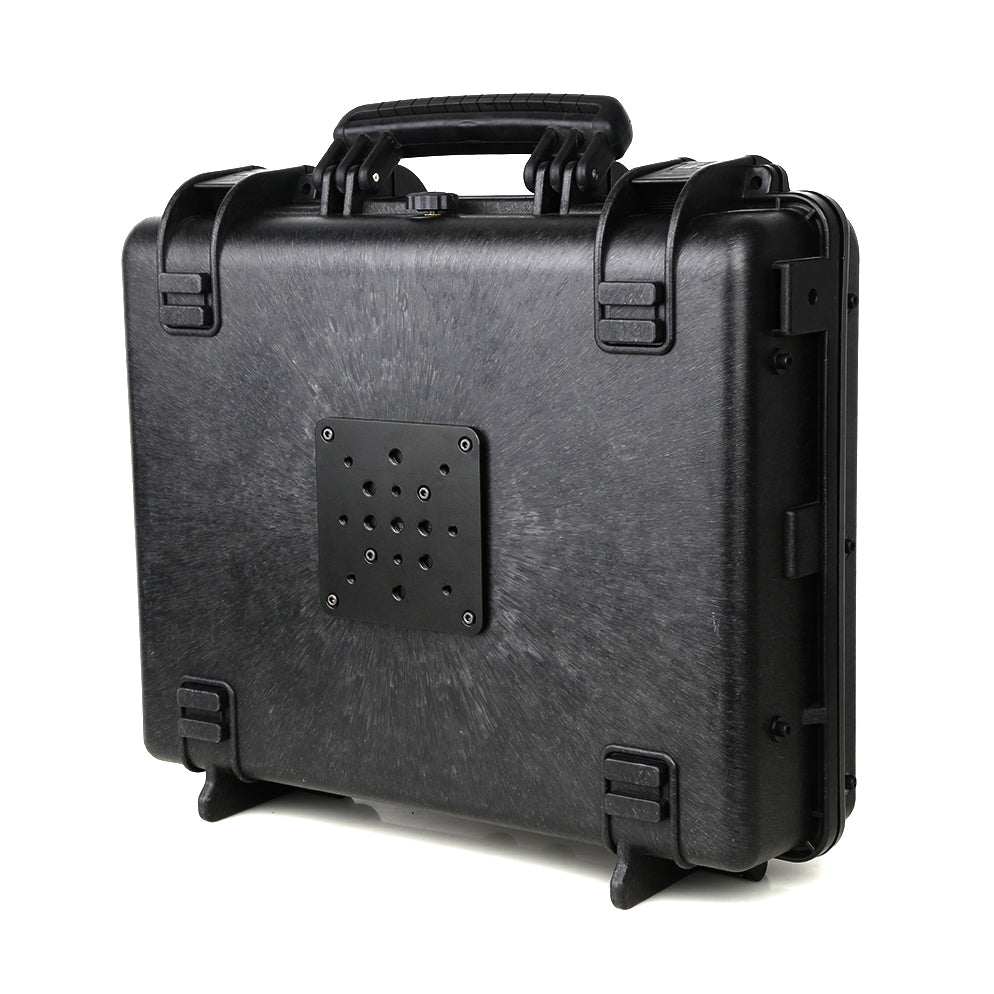

Portable case |
|
AC Input Voltage |
AC100-240V |
|
Power Dissipation |
≤26W |
Package Contents:
1x Bestview 17.3’’ UHD 4K HDMI Quad-split Broadcast Monitor

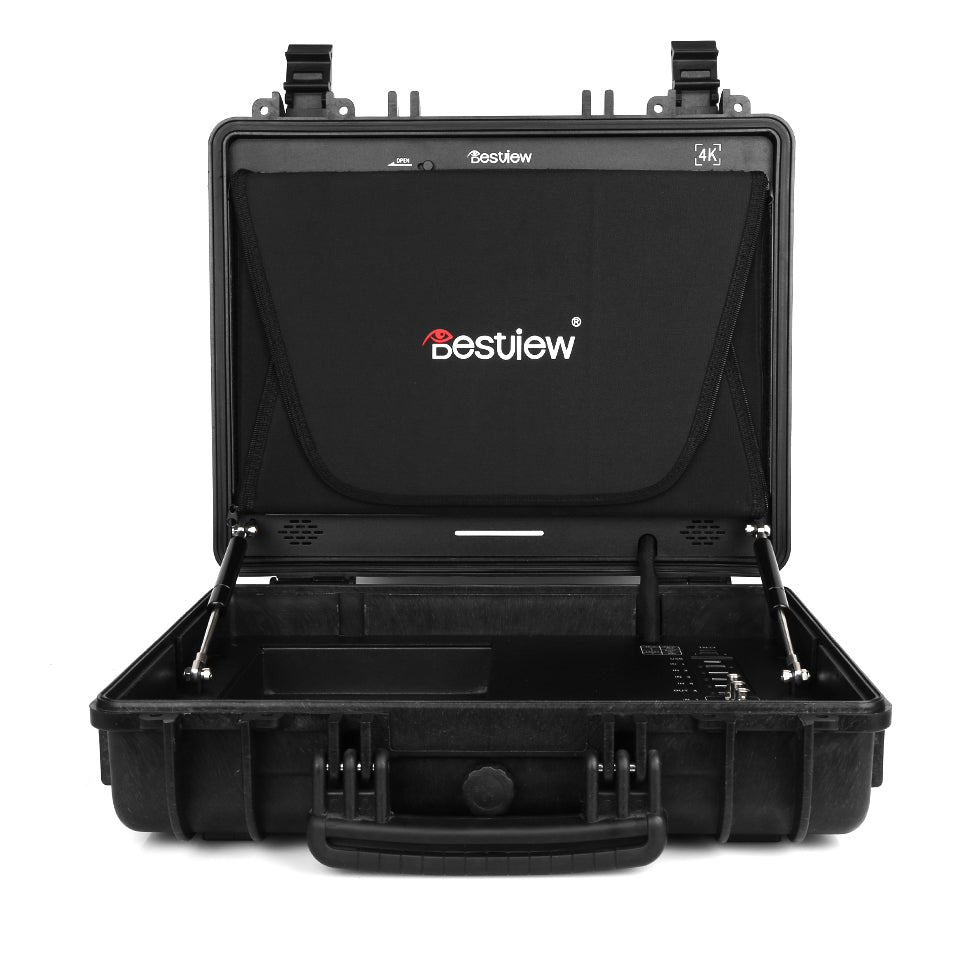

1x Sun-hood
1x Power Adapter
1x HDMI Cable(A/A)
