DESVIEW S14-HDR 14" 4K HDMI/3G-SDI Multi-View Broadcast Monitor
- Brand: Desview
- SKU: 535848
- Product code:

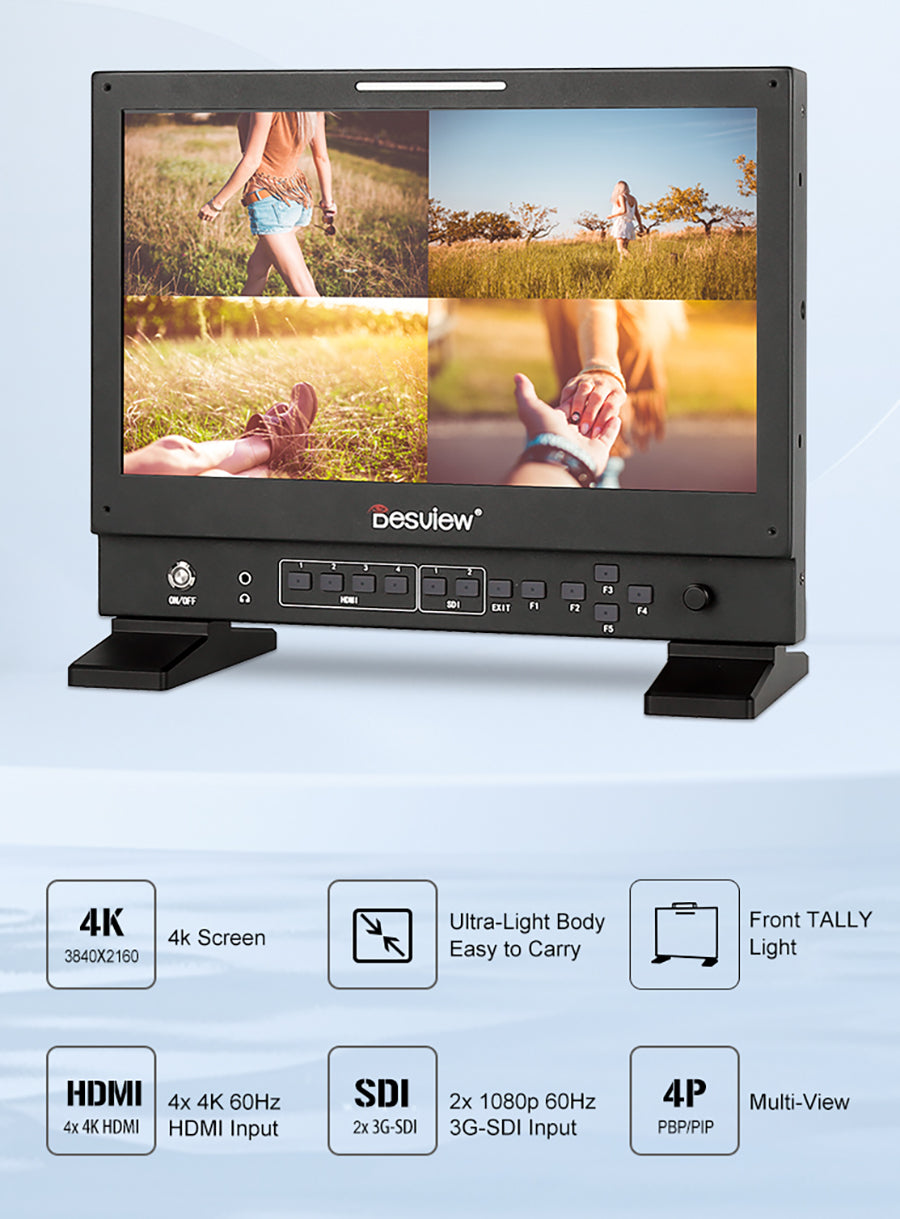

14‘’ Multi-View Broadcast Monitor
UHD Portable Broadcast Monitor

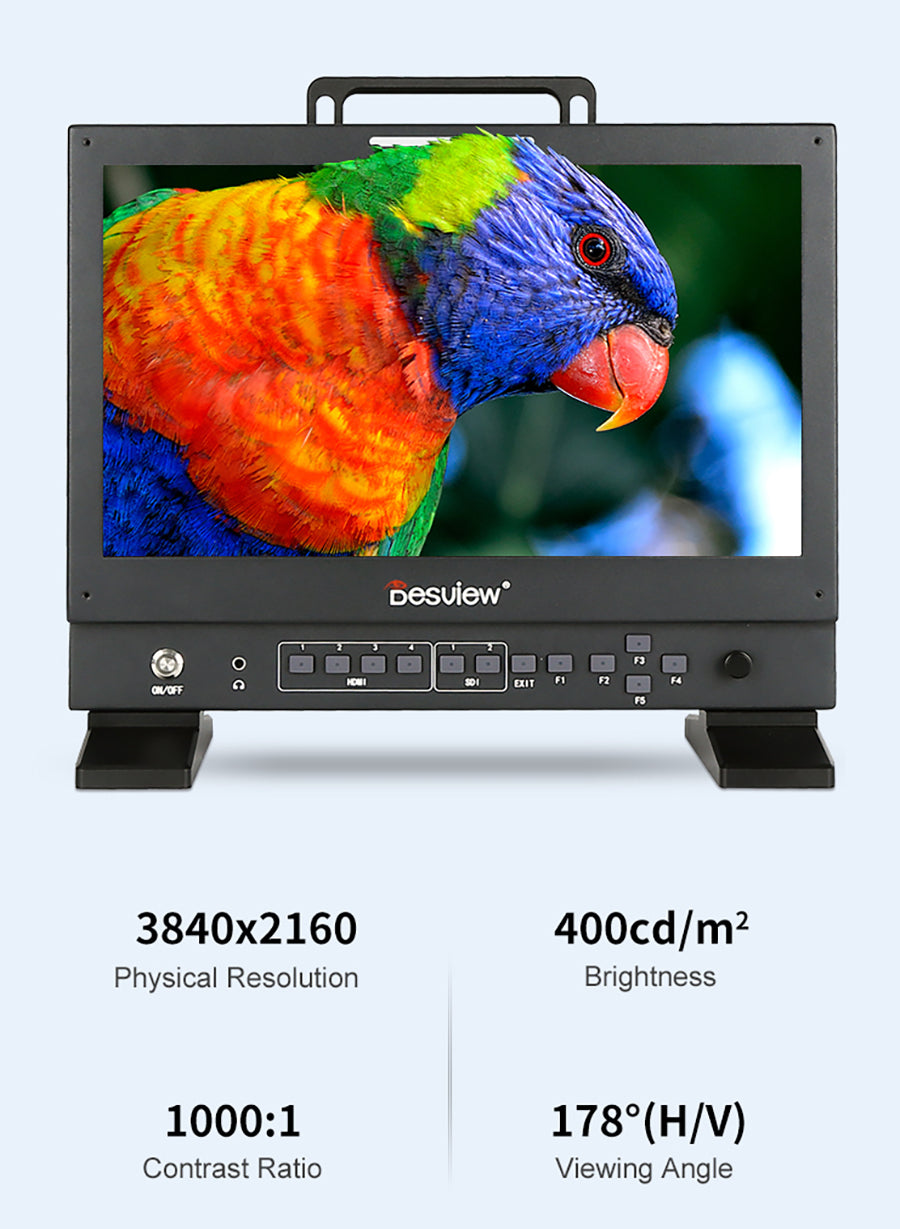

4K UHD Resolution View More Details
The monitor adopts 4K UHD 3840x2160 resolution which can present accurately every detail and provide efficient visual effects.
Support 4K HDR Monitoring
More dynamic range and image details, the image level more clear

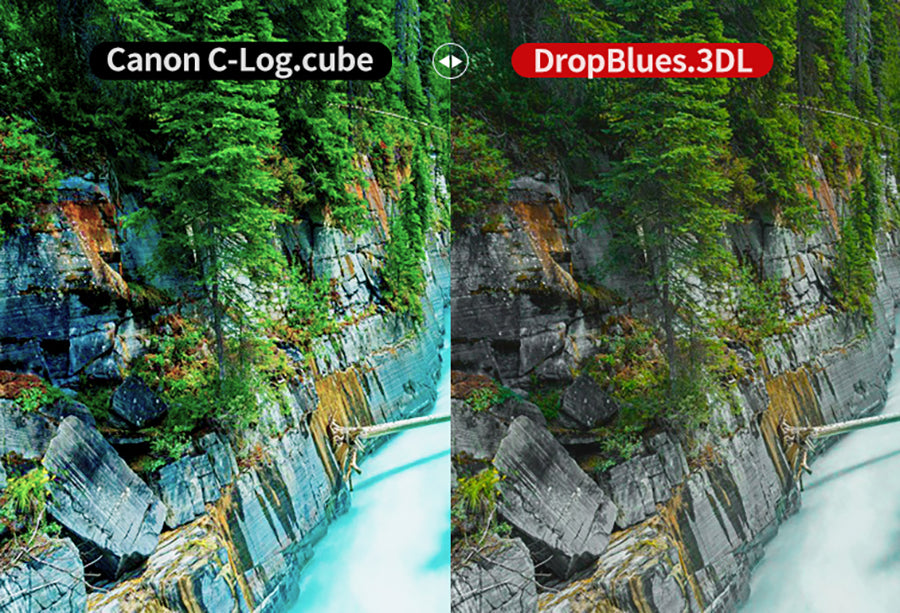

Bulid in Luts, Multiple Colour Spaces for Optional
EBU/SMPTE_C/Rec.709/DCI-P3

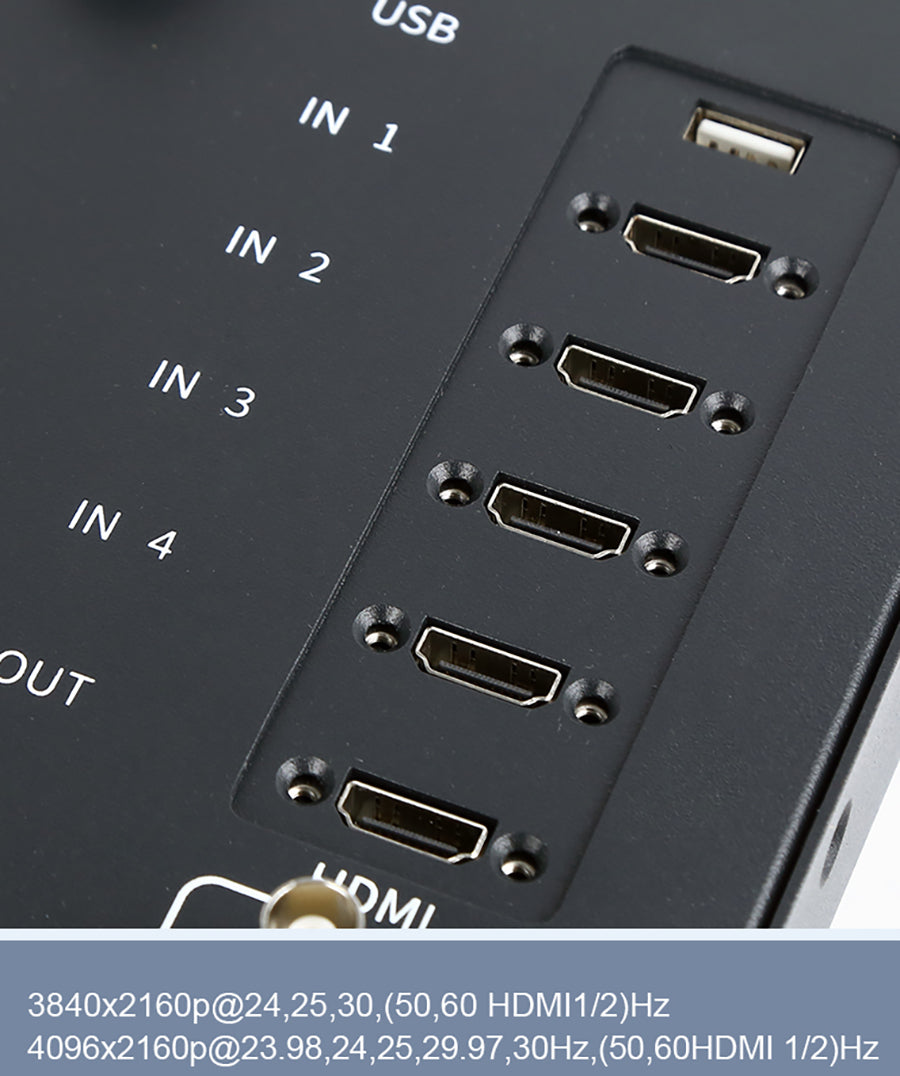

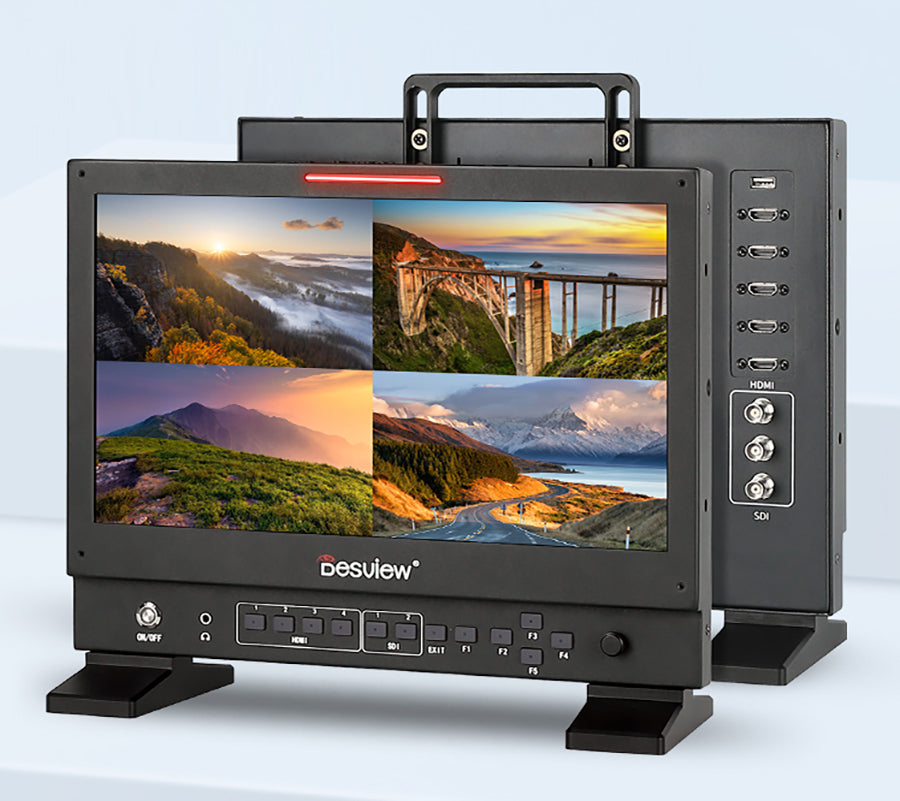

4K HDMI Supported 4x HDMI Input 1x HDMI Output
The monitor can support four channel HDMI signals input from four camcorders, and also
supports the fourth channel 4K HDMI signals output to other device

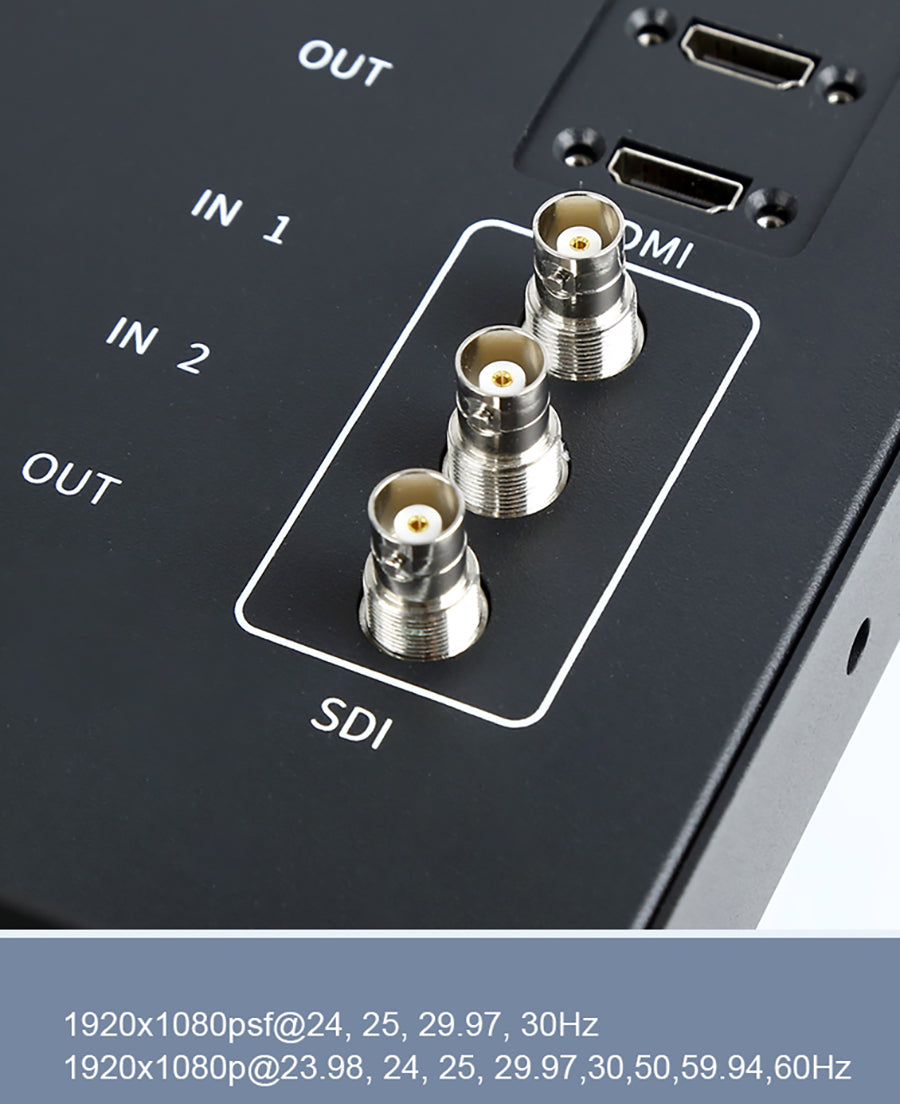

3G-SDI Supported 2x 3G-SDI Input 1x 3G-SDI Output
The monitor supports 3G-SDI signal input from 2 camcorders, and also can
output 1 channel 3G-SDI signal to other device by BNC port
Broadcast Grade TALLY Light System
The front panel hans a TALLY light, and the TALLY light can be controlled by inputting through the RJ45 interface on the back panel.

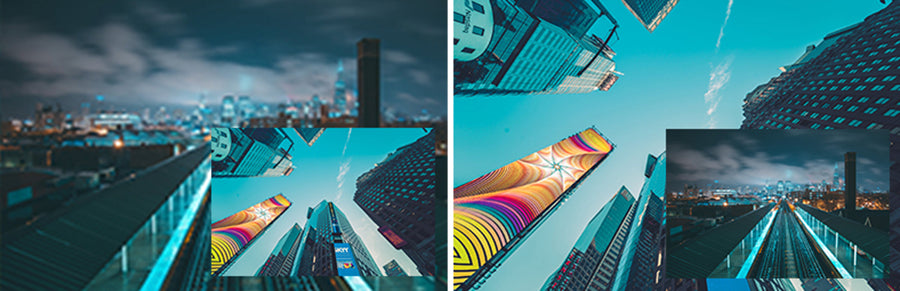

Multi-View Mode PBP/PIP Display
In the case of monitoring multiple shooting positions, you do not need multiple broadcast monitors.One monitor can achieve this,as the S14 monitor supports 1P/2P_LR/2P_TB/2P_PIP/4P such multiple display modes to choose from.
Functions

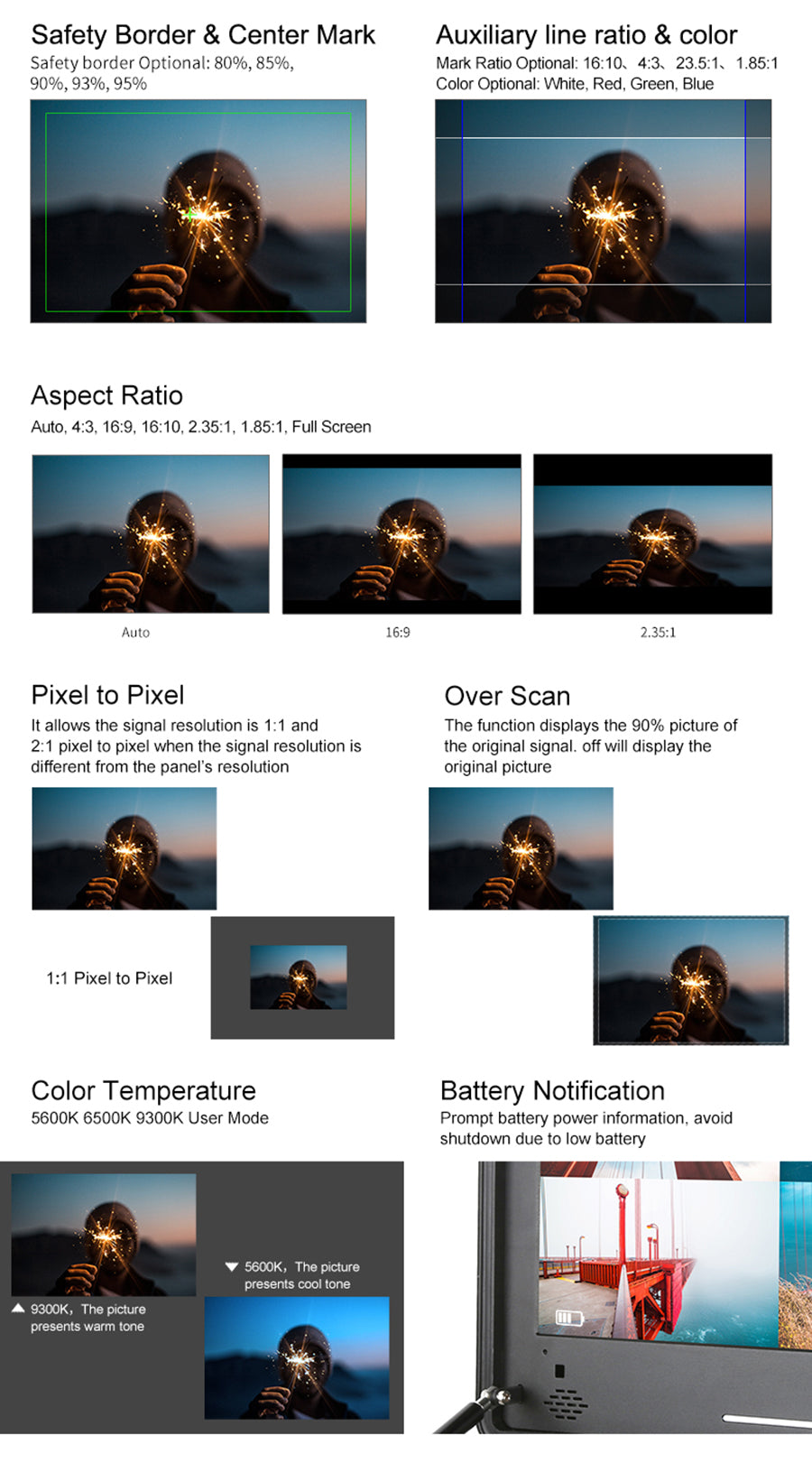

Composition Functions And Image Setting
Make the early stage composition easier, so that the post-production is more relaxed

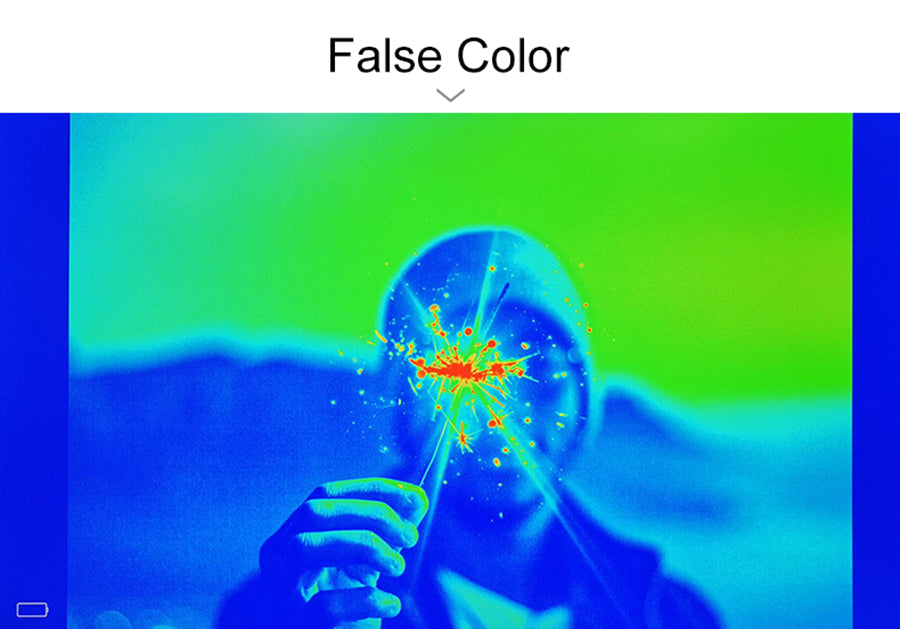

Picture Exposure
The monitor comes with false colour function, which can mark the brightness information in the screen with different colors, so that it is easy to check the high brightness position in the picture

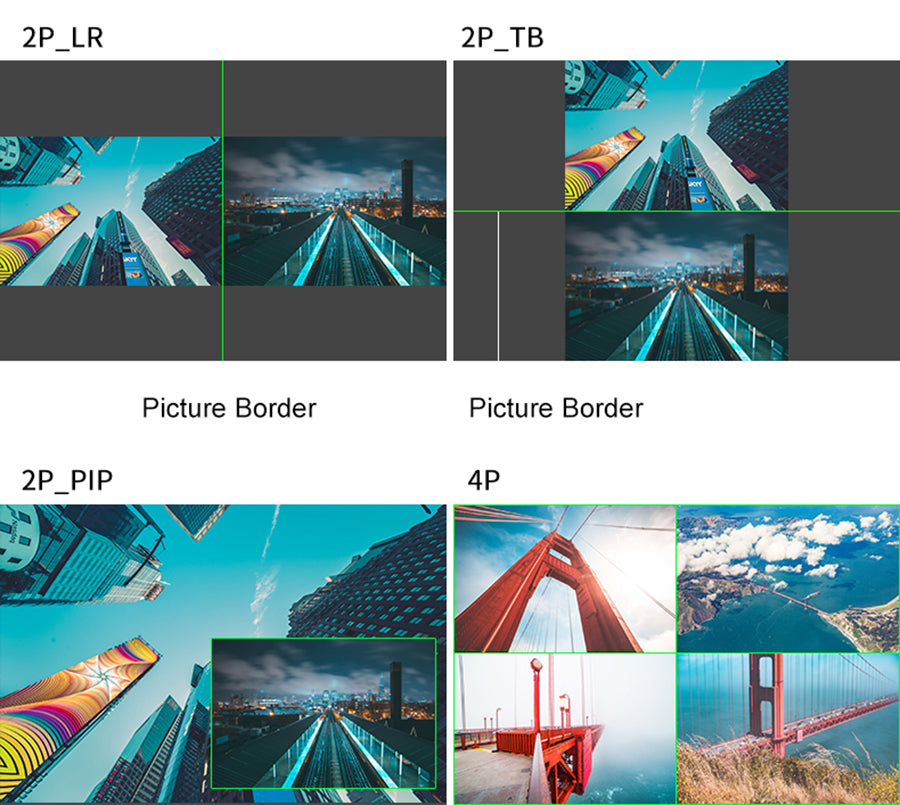

Multi-Pictures Display And Picture Border
1P/2P_LR/2P_TB/2P_PIP/4P multiple display mode for optional, the colour of picture border can be changed at auxiliary line colour
Picture Exchange
This function can be used and can exchanged the display pictures only under 2P mode(2P_LR/2P._PIP)

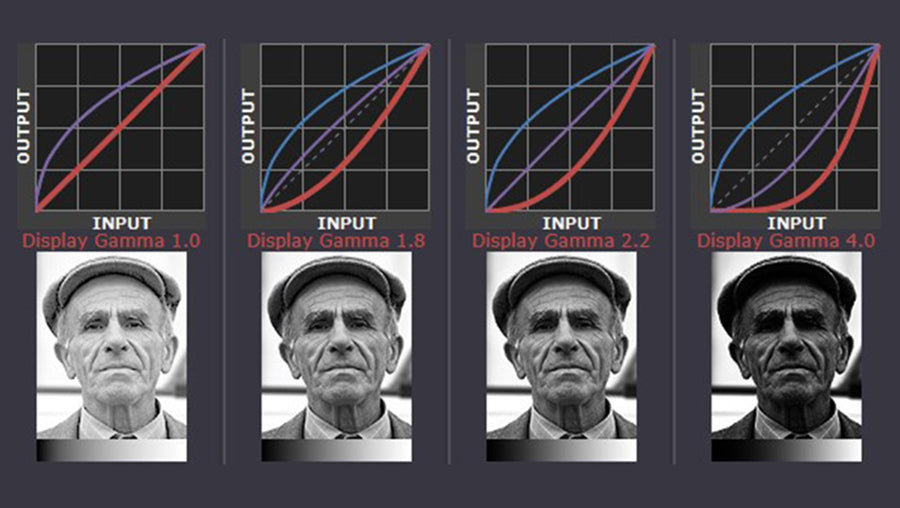

GAMMA Optional
Gamma Preset Option: 2.2/2.4/2.6
PS: Gamma correction is a way of editing the gamma curve of the image to edit the nonlinear colour of the image. It can detect the dark part and light part in the image signal and make the ratio of the increase, so as to improve the image contrast effect

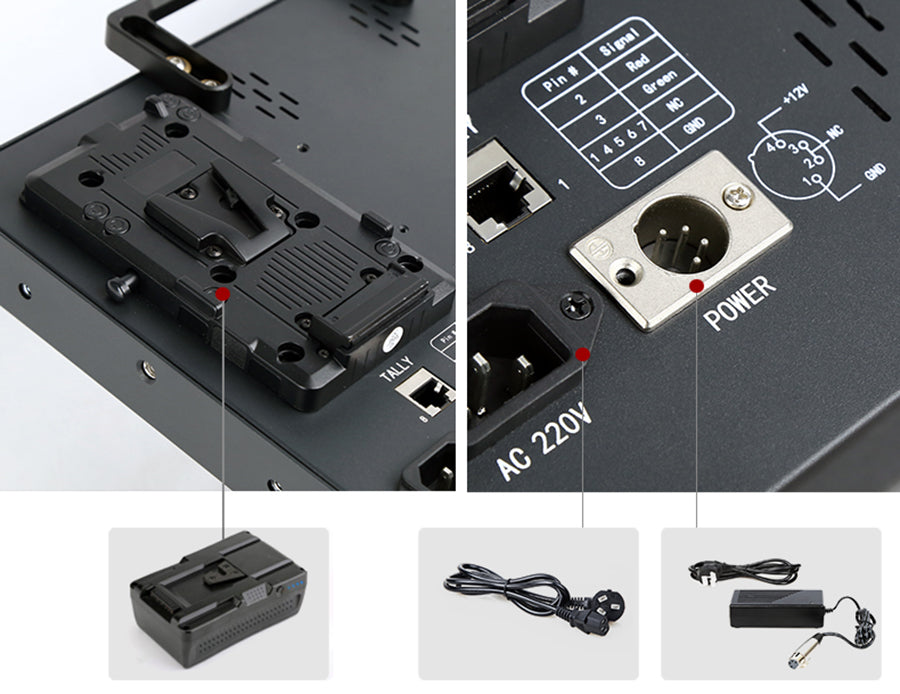

Multiple Modes of Power Supply
The monitor support V mount battery and AC220V
(AC Power Adapter/XLR Power Adapter)
Package Contents:
Specifications:
|
Model |
S14-HDR |
|
Screen Size |
14inch |
|
Resolution |
3840x2160 |
|
Viewing Angle |
178°(H/V) |
|
Contrast Ratio |
1000:1 |
|
Brightness |
400cd/m² |
|
Input |
4x HDMI、2xBNC(SDI)、USB、Tally |
|
Output |
1x HDMI、1xBNC(SDI) |
|
Audio Output |
3.5mm Stereo Headphone Hole |
|
Speaker |
x2 (2Ω8W） |
|
Power Consumption |
≤26W |
|
Voltage |
AC110-240V/DC12-24V |
|
Signal Format(HDMI) |
4096x2160p@23.98,24,25,29.97,30, [50,59.54,60Hz(HDMI 1/2)] 3840x2160p@24,25,30, [50,60Hz(HDMI 1/2)] 1920x1080psf@23.98,24,25,29.97,30,50,59.94,60Hz 1920x1080psf@24,25,29.97,30Hz 1920x1080i@50,59.94,60Hz 1280x720p@50,59.94,60Hz 720x480p&720x480i@59.94Hz,60Hz |
|
Signal Format(3G-SDI) |
1920x1080p@23.98,24,25,29.97,30,50,59.94Hz,60Hz 1920x1080psf@24,25,29.97,30Hz |

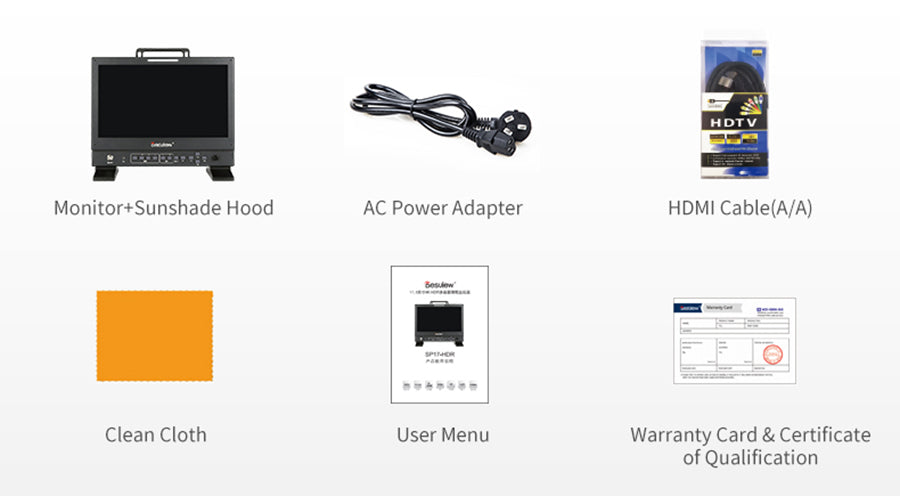

Package Contents:
Basic Kit (535848):
1x DESVIEW S14-HDR 14" 4K HDMI/3G-SDI Multi-View Broadcast Monitor + Sunshade Hod
1x AC Power Adapter
1x HDMI Cable(A/A)
1x Clean Cloth
Hard case Kit (535850):
1x Basic Kit(535848)
1x Hard case
