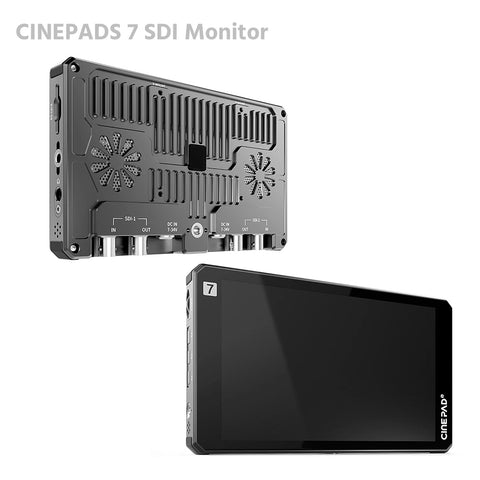

The CINEPADS 7 is a brilliant monitor for creative professionals. With its strong and lightweight aluminum chassis, CINEPADS 7 is designed for use in all kinds of harsh environments. The 1500 nits touch display with 100% DCI-P3 color gamut makes viewing and adjusting exposure in direct sunlight possible. With dual power and video inputs design, CINEPADS 7 works perfectly on set all day long. CINEPADS 7 will be the workhorse monitor in your camera crew.
The CINEPADS 7HS is a brilliant monitor for creative professionals. With its strong and lightweight aluminum chassis, CINEPADS 7HS is designed for use in all kinds of harsh environments. The 1500 nits touch display with 100% DCI-P3 color gamut makes viewing and adjusting exposure in direct sunlight possible. CINEPADS 7HS will be the workhorse monitor in your camera crew.
Specifications:
CINEPADS 7：
Display:
| Panel Type | IPS LCD | Contrast | 1200:1 |
| Diagonal Size | 7.02 | Gamut | 100%DCI-P3 Coverage |
| Resolution | 1920x1200 | Colour Depth | 10-bit Processing (8-bit panel) |
| Pixel Density | 322 PPI | Viewing Angel | 160 |
| Aspect Ratio | 16:10 | Backlight Type | LED |
| Active Area | 151.2mm x 94.5mm | Adjustable Backlight | Yes |
| Brightness | 1500 nits |
Input:
3G-SDI Input:
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50
HD-SDI Input:
YCC 4:2:2 @ 12-bits, 8/10/12/16 bit colour in RGB& YCC 4:4:4 1080p60,1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
Output:
3G-SDI Output:
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50
HD-SDI Output:
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
Audio Output:
SDI- Incoming Audio Stream is sent downstream Via SDI connection
Connector Type:
| SDI | 2x 3G SDI input and 2x 3G SDI output |
| Audio | 1x 3.5mm 3-pin Stereo Headphone Jack |
| Power in | LEMO 2-Pin Connector |
Power:
| Connector | LEMO 2-Pin Connector |
Battery Types | V Mount |
| Voltage | DC in- 7V minimum to 34V maximum |
Overload Protection | DC input: Reverse polarity |
| Consumption | 17.3 watts(1080P60,100%bright,tools enabled),(1.4A@12V,0.7A@24V) |
Battery Charging Time | Monitor does not support the charging of batteries |
| Battery Plate Include | V Mount optional accessories |
||
| Power Supply | Recommend DC 12-15V @2.5 amp or greater |
Software:
| Pixel Zoom | 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adiustable via pinch & zoom |
| Frame Guides | Preset Aspect Ratios & Customizable |
| Anamorphic De-Squeeze | 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x |
| Image Rotate | Automatic or Manual Control |
| Image Flip | Automatic or Manual Control |
| Focus Assist | User Adjustable Colour Style and Intensity |
| Peaking | User Adjustable Intensity |
| False Colour | Rainbow, Arri Style, Custom with up to 10 nodes |
| Zebra | Dual - User Configurable |
| Waveform | Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting |
| RGB Parade | Fully User Customizable |
| Image Capture | Yes |
| Custom LUTS | Loaded from SD Card, can be downstream by SDI output |
| Overlay | With Opacity Slider and Blink Setting |
| Audio Meters | SDI up to 4 channel |
General：
| Item Weight (g) | 480 | Compliance | FCC, IC,CE, RoHS |
| Package Weight (g) | 678 | Operating Temperature | -10℃ to 40℃ |
| Height (mm) | 20 | Storage Temperature | -10°C to 40℃ |
| Width (mm) | 111 | Mount Points | Four ¼-20 Mount Points (Right, Bottom, and Back) |
| Length/Depth (mm) | 184 | Construction | Anodized aluminum chassis |
CINEPADS 7HS：
Display:
| Panel Type | IPS LCD | Contrast | 1200:1 |
| Diagonal Size | 7.02 | Gamut | 100%DCI-P3 Coverage |
| Resolution | 1920x1200 | Colour Depth | 10-bit Processing (8-bit panel) |
| Pixel Density | 322 PPI | Viewing Angel | 160 |
| Aspect Ratio | 16:10 | Backlight Type | LED |
| Active Area | 151.2mm x 94.5mm | Adjustable Backlight | Yes |
| Brightness | 1500 nits |
Input:
3G-SDI Input:
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50
HD-SDI Input:
YCC 4:2:2 @ 12-bits,1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
HDMI Input:
YCC 4:2:2 @ 12-bits,8/10/12/16 bit colour in RGB& YCC 4:4:4 1080p60,1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
Output:
3G-SDI Output:
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50
HD-SDI Output:
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
HDMI Output:
YCC 4:2:2 @ 12-bits, 8 bit colour in RGB & YCC 4:4:4 1080i60, 1080i59.94, 1080i50
Audio Output:
HDMI & SDI- Incoming Audio Stream is sent downstream Via HDMI or SDI connection
Connector Type:
| SDI | 1x 3G SDI input and 1x 3G SDI output |
| HDMI | 1x HDMI input and 1xHDMI output |
| Audio | 1x 3.5mm 3-pin Stereo Headphone Jack |
| Power in | LEMO 2-Pin Connector,DC Barrel |
Power:
| Connector | LEMO 2-Pin Connector |
Battery Types | V Mount
or Sony F-970 type |
| Voltage | DC in- 7V minimum to 34V maximum |
Overload Protection | DC input: Reverse polarity |
| Consumption | 17.3 watts(1080P60,100%bright,tools enabled),(1.4A@12V,0.7A@24V) |
Battery Charging Time | Monitor does not support the charging of batteries |
| Battery Plate Include | V Mount or Sony F-970 type optional accessories |
||
| Power Supply | Recommend DC 12-15V @2.5 amp or greater |
Software:
| Pixel Zoom | 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adiustable via pinch & zoom |
| Frame Guides | Preset Aspect Ratios & Customizable |
| Anamorphic De-Squeeze | 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x |
| Image Rotate | Automatic or Manual Control |
| Image Flip | Automatic or Manual Control |
| Cross Conversion | Yes: HDMI-SDI&SDI-HDMI |
| Focus Assist | User Adjustable Colour Style and Intensity |
| Peaking | User Adjustable Intensity |
| False Colour | Rainbow, Arri Style, Custom with up to 10 nodes |
| Zebra | Dual - User Configurable |
| Waveform | Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting |
| RGB Parade | Fully User Customizable |
| Image Capture | Yes |
| Custom LUTS | Loaded from SD Card, can be downstream by HDMI/SDI output |
| Overlay | With Opacity Slider and Blink Setting |
| Audio Meters | HDMI & SDI up to 4 channels |
General：
| Item Weight (g) | 480 | Compliance | FCC, IC,CE, RoHS |
| Package Weight (g) | 678 | Operating Temperature | -10℃ to 40℃ |
| Height (mm) | 20 | Storage Temperature | -10°C to 40℃ |
| Width (mm) | 111 | Mount Points | Four ¼-20 Mount Points (Right, Bottom, and Back) |
| Length/Depth (mm) | 184 | Construction | Anodized aluminum chassis |
