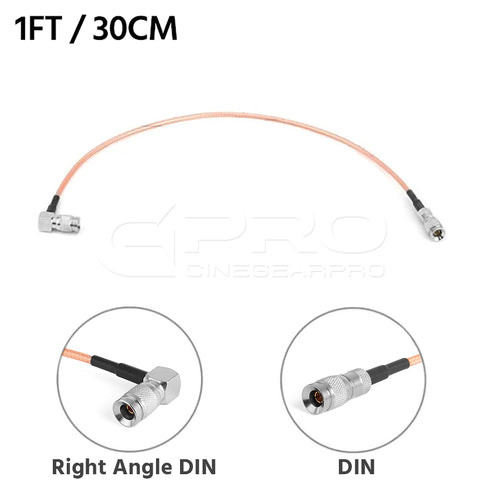

CGPro Ultra Thin Right Angled 1.0/2.3 DIN to DIN HD-SDI 6G-SDI Cable
- Brand: CGPro
- SKU: CGP-SDI-G30
- Product code:
This Ultra-Thin 6G/HD-SDI cable featuring with 1.0/2.3 DIN to Right Angled DIN Male connectors designed for connecting equipment or video distribution gear that employ the DIN 1.0/2.3 connection include Blackmagic Design HyperDeck Shuttle, Video Assist Monitor, BMMCC(Blackmagic Micro Studio Camera 4K) and RED One products... it is highly flexible and lightweight perfect for Gimbal, Monitors and HD Cameras use.
Please note: The DIN Port of this Cable is NOT compatible with BlackMagic Design Video Assist 5'' 12G Micro BNC SDI Port.
Features:
• Standard DIN connectors, compatible with 6G/HD/SD-SDI.
• Ultra-Thin and flexible coaxial cable.
• Double shelter, aluminium-foil paper+internal copper net.
• Available Length: 30cm/1ft, 60cm/2ft, 90cm/3ft.
Specification:
• Connector type: Right Angled 1.0/2.3 DIN male to DIN male
• Length: 1FT/30CM
• Impedance: 75 ± 3 Ohms
• Frequency: 0~2GHz
• Weight: 15g
• Connector type: Right Angled 1.0/2.3 DIN male to DIN male
• Length: 2FT/60CM
• Impedance: 75 ± 3 Ohms
• Frequency: 0~2GHz
• Weight: 20g
• Connector type: Right Angled 1.0/2.3 DIN male to DIN male
• Length: 3FT/90CM
• Impedance: 75 ± 3 Ohms
• Frequency: 0~2GHz
• Weight: 25g
Package contents:
1 x CGPro Ultra Thin Right Angled 1.0/2.3 DIN to DIN HD-SDI 6G-SDI Cable
