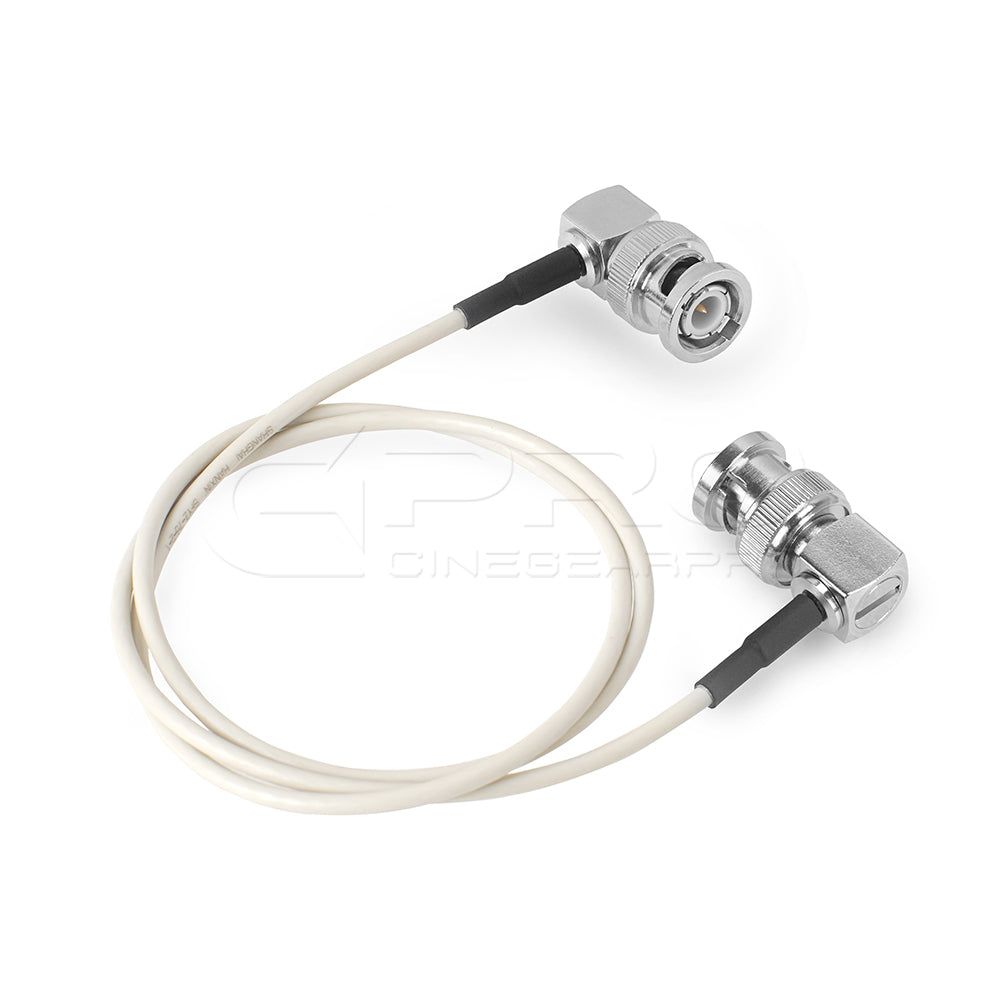

CGPro 12G SDI Cable Right Angle BNC to Right Angle BNC
- Brand: CGPro
- SKU: CGP-WSDIRARA-4FT
- Product code:
The CGPro ultra-thin 12G-SDI shielded coaxial cable is designed for connecting 12G-SDI rated cameras and equipment and carrying a UHD 4K signal up to 120fps. This 12G-SDI cable is ideal for the transmission of uncompressed high definition video for professional environments, such as in the field of television, wireless transmission, viewfinder, or monitoring of cinema cameras.
The 12G-SDI cable features high quality PVC jacket body and outer diameter is only 3.5mm that give it flexibility and long life. The cable consists of 75-ohm male BNC connectors at both ends, with gold-plated contacts and highly foamed PE insulation for optimal attenuation. It's suitable for studios, mobile trucks, and installations among virtually all other applications.
With the copper foil and high-density tinned copper braided shielding, this 12G-SDI cable offering professional broadcast performance, guarantees a reliable signal transmission for the highest frequencies.
This ultra-thin 12G-SDI shielded coaxial cable compatible with a wide variety of popular software and hardware, including Blackmagic, AJA, Grass Valley, Evertz, Marshall, Cobalt Digital, Atomos, Postium, AVID, and Red Camera.
Features:

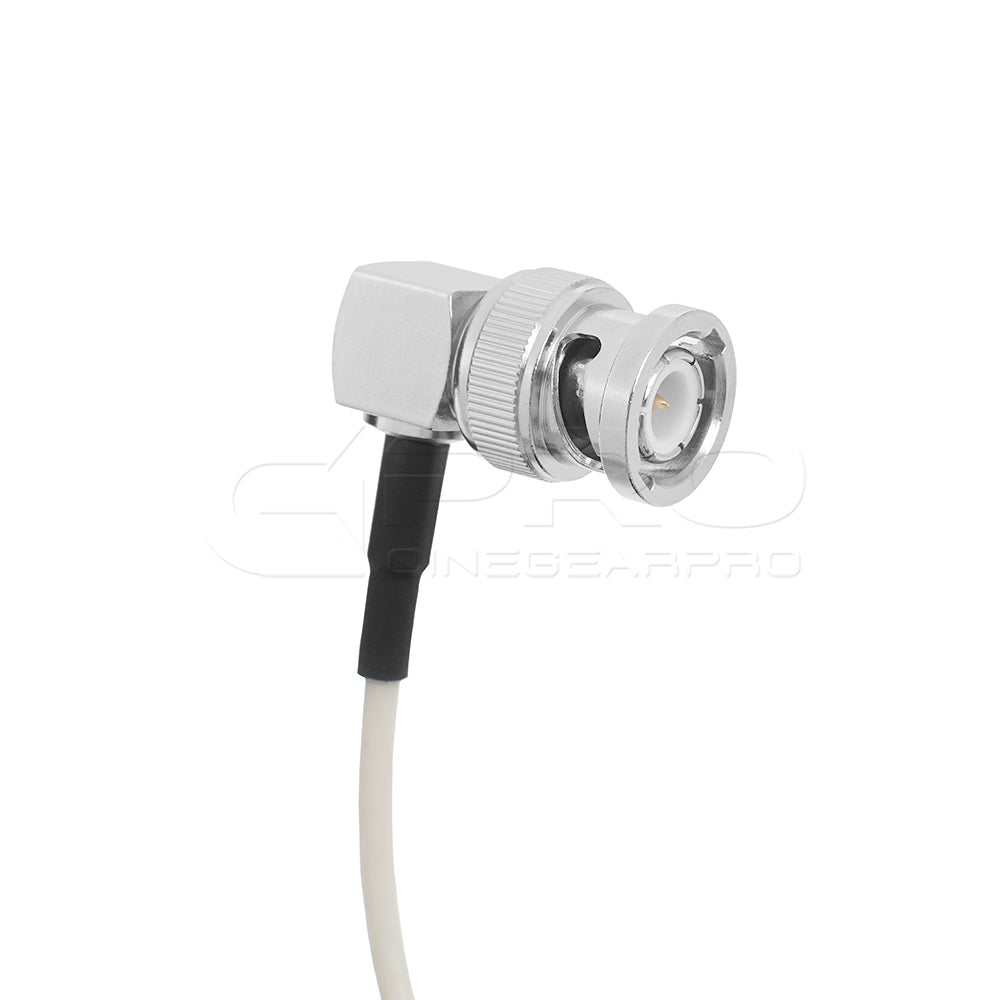

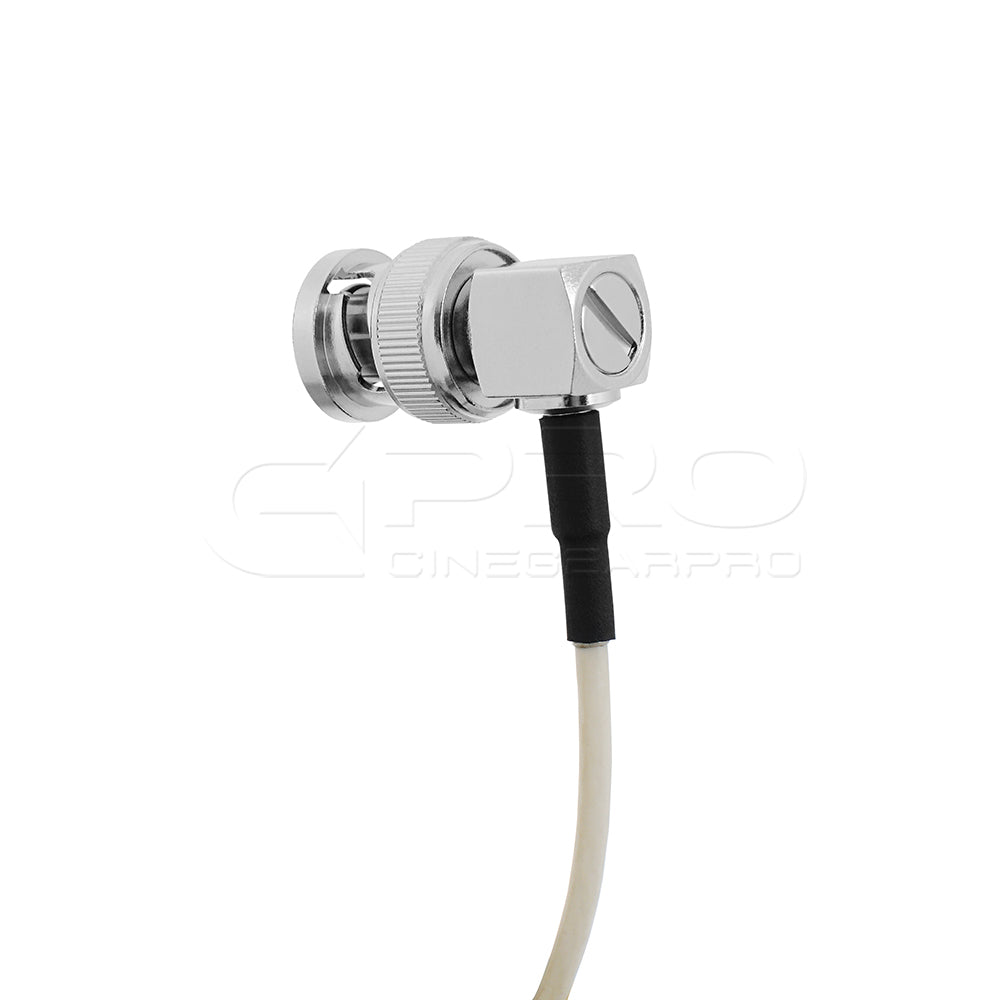

- Male BNC to Male BNC 75-ohm Alloy Connector
- Diameter is 3.5mm, Ultra-Thin Flexible Cable
- 12G-SDI Rated, Video Signal Support Up to 4K 120fps
- High-Density Tinned Copper Braided Shielding
- Lightweight and High Quality PVC Jacket Body For Long-term Use
- Different Length Adaptation

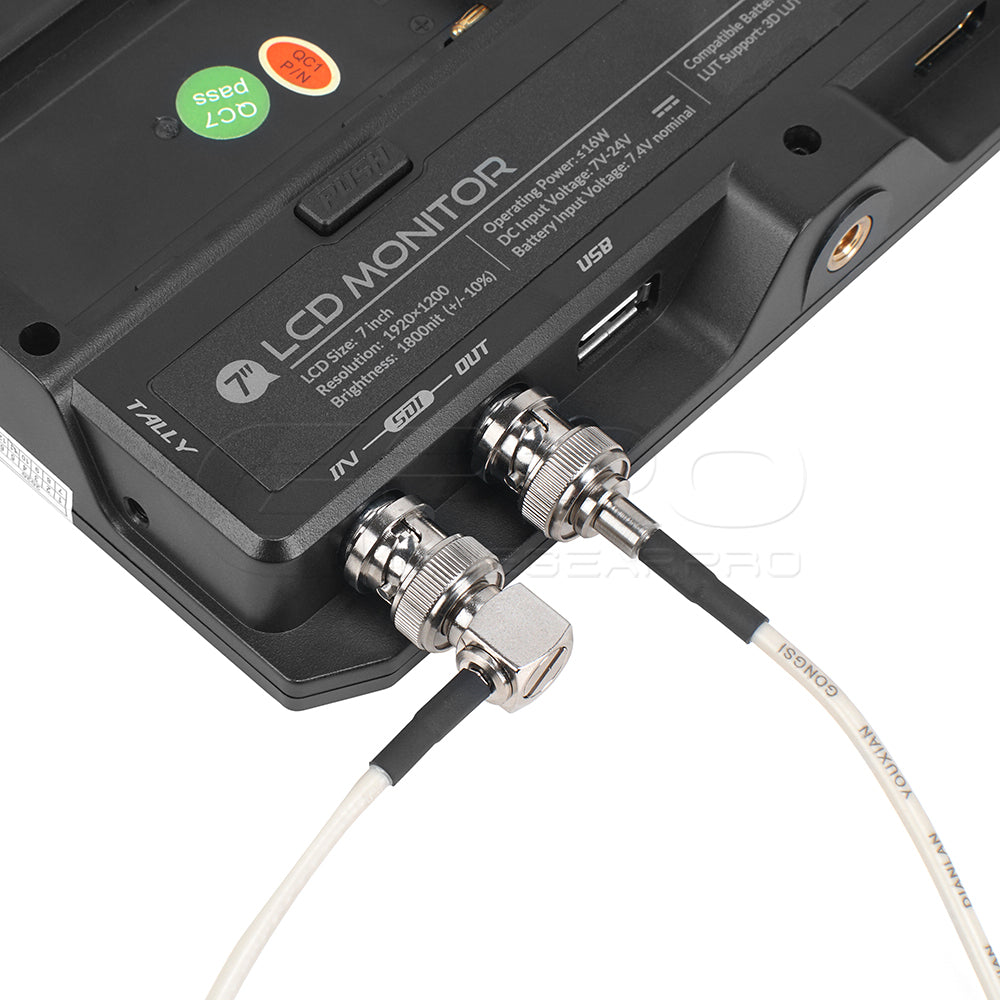

- Wide Compatibility for Professional Monitoring
Specifications :
Construction:
|
|
Material |
Structure |
|
Inner Conductor |
Bare Copper |
1/0.27 ± 0.01 mm |
|
Insulation |
PE - Polyethylene |
1.60 ± 0.05 mm |
|
Wire Braid |
Bare Copper |
80 x 0.10 mm |
|
Jacket |
PVC - Polyvinyl Chloride |
2.80 ± 0.10 mm |
Electrical Physical and Properties:
|
|
Value |
|
Frequency |
Nom. Attenuation |
|
Capacitance |
67 ± 5 pE/m |
10MHz |
14 dB / 100m |
|
|
Impedance |
75 ± 3 Ω |
100MHz |
17 dB / 100m |
|
|
Velocity Ratio |
66% |
200MHz |
46 dB / 100m |
|
|
Bent Radius |
14 mm |
400MHz |
76 dB / 100m |
|
|
Max Voltage |
1500 VMS |
900MHz |
115 dB / 100m |
|
|
Max Frequency |
3000 MHz |
1500MHz |
143 dB / 100m |
|
|
Temperature Scope |
-20 ~ +80 ℃ |
2000MHz |
165 dB / 100m |
Dimension:
Available Length:
|
BNC To BNC 12G SDI Cable: |
||
 1FT / 30CM
|
 2FT / 60CM
|
 4FT / 120CM |
|
BNC To Right Angle BNC 12G SDI Cable: |
||
 1FT / 30CM
|
 2FT / 60CM
|
 4FT / 120CM
|
|

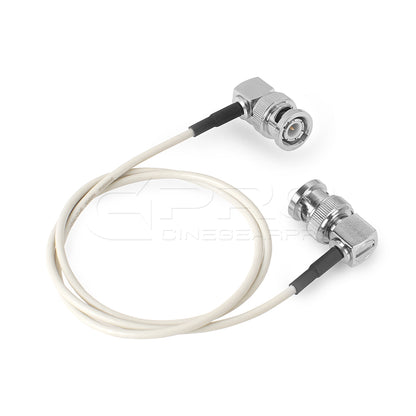

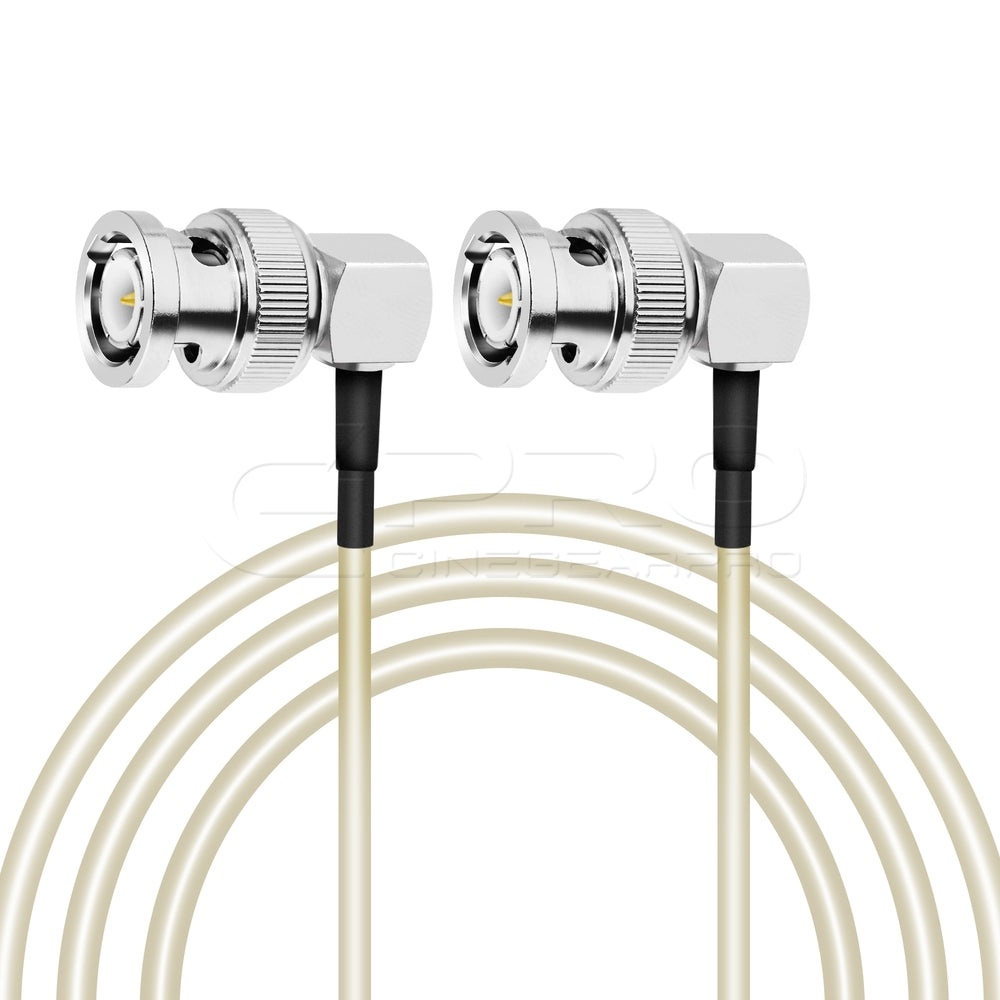

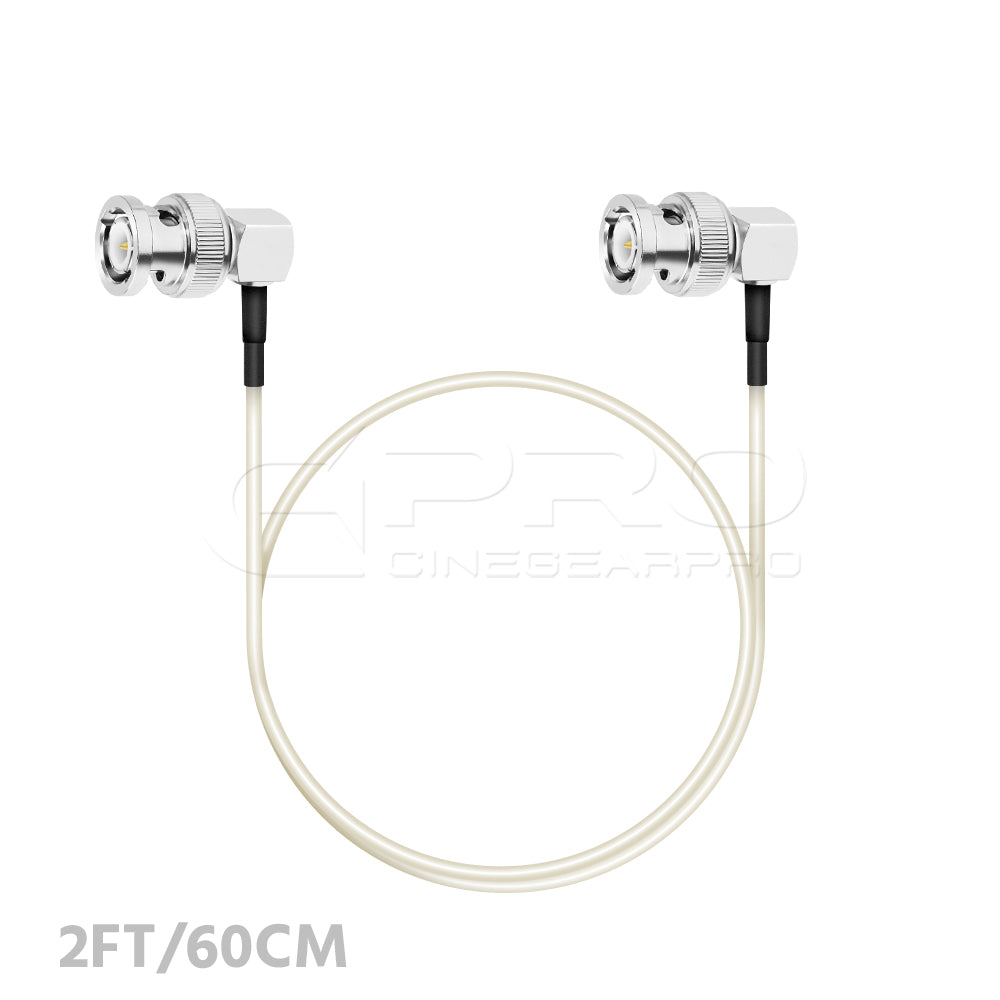

Right Angle BNC To Right Angle BNC 12G SDI Cable: |
||

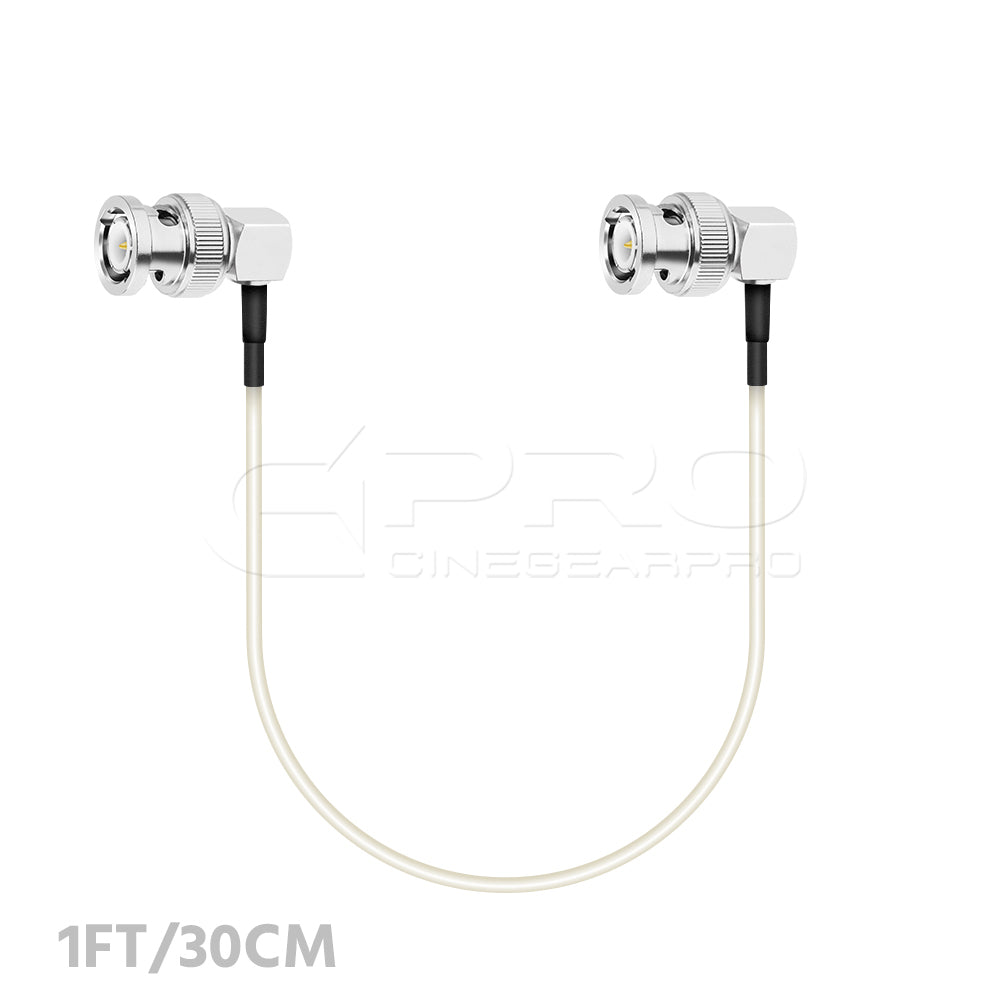

 1FT / 30CM
|

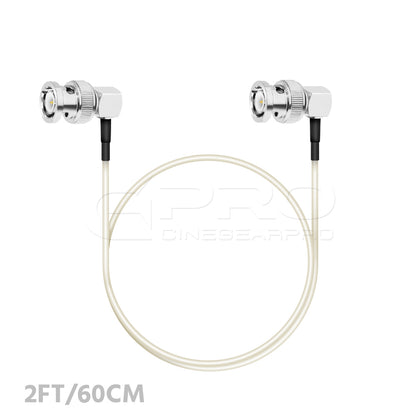

 2FT / 60CM
|

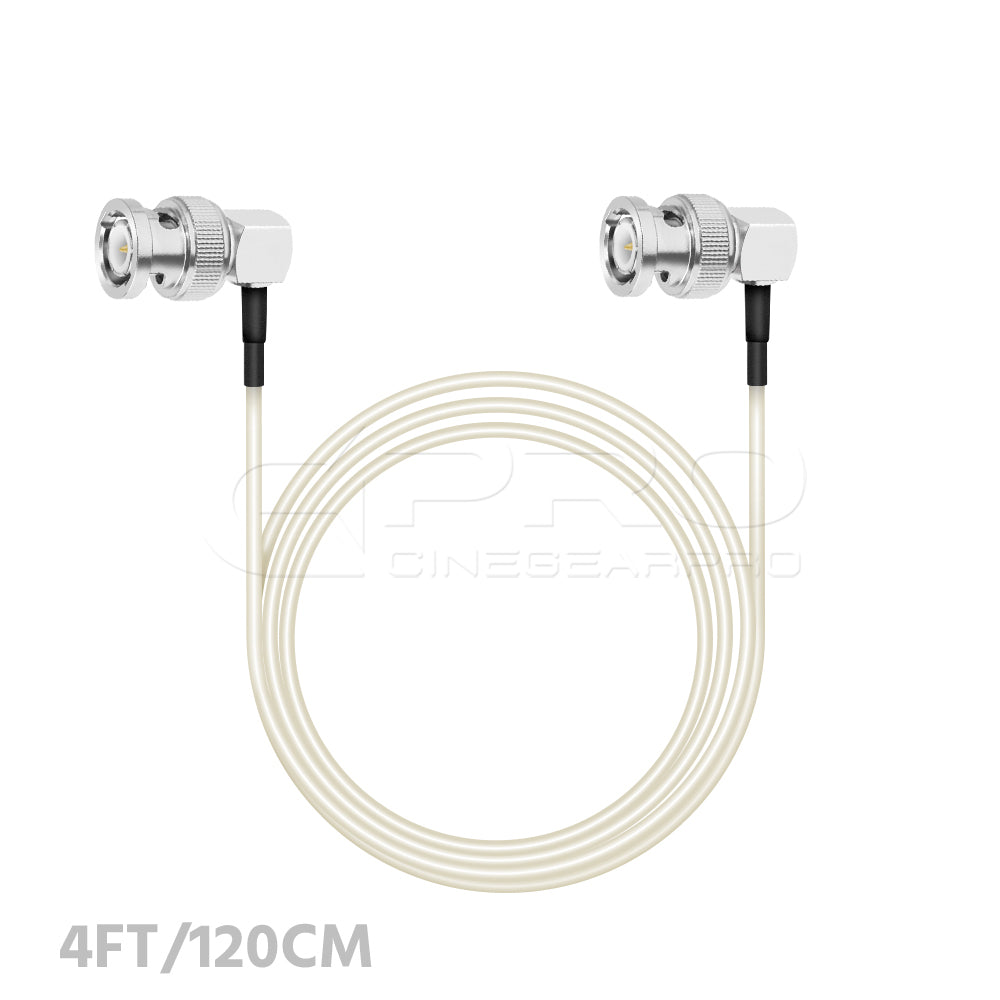

 4FT / 120CM
|
Package Contents:
1x Ultra-Thin Flexible 12G-SDI Cable
