Aputure LS 600d Pro Light Storm 600W Daylight LED Light (V-Mount)
- Brand: Aputure
- SKU: LS600D pro
- Product code:

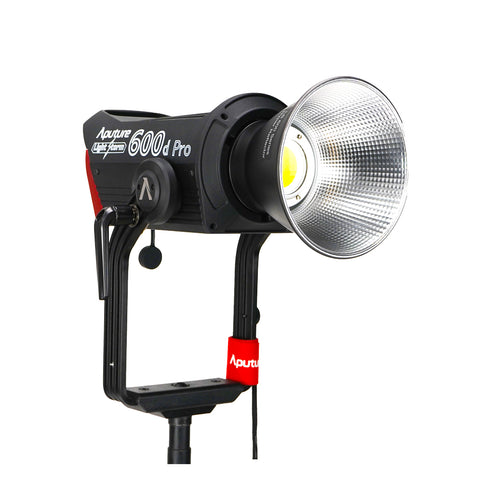

The LS 600d Pro is the latest and brightest flagship light in the AputureLight Storm COB product line. Its immensely bright 600W COB LED output positions the 600d Pro as one of the brightest point source LEDs on the market. With only a 720W Max Power Draw, this light is able to approach the brightness of 1200W HMIs at only a fraction of their total energy consumption, allowing you to power more than one from a single household circuit.
In addition, the 600d Pro takes advantage of the lower power consumption requirements of LEDs compared to hot lights, allowing it to draw power from both V & Gold Mount cinema batteries. Its multi-voltage battery plates make it compatible with 14.4V, 26V, and 28.8V batteries, for a wide variety of power options. The 600d Pro’s battery plates also include revolutionary charging functionality, giving the LS 600d Pro the ability to refill batteries when plugged into AC power between scenes. The control box is also capable of accepting 48V (15A) DC power via 3-pin XLR, allowing it to be powered via external battery power stations or block batteries.
The LS 600d Pro’s weather-resistant design renders it capable of withstanding inclement weather conditions like light rain and water spray.
Features:
- 29,300+ lux @ 3m with the F10 Fresnel
- 8,500+ lux @ 3m with the Hyper-Reflector
- Comparable to a 1200W HMI or Joker 800
- 0-100% Stepless Brightness Control
- CRI≥96, TLCI≥96, SSI (D55): 72
- Dust & Light Rain Weather-Resistant
- Multiple Control Methods: 2.4GHz Remote, SidusLink Bluetooth App Control, Built-in Wireless DMX, Art-net, Ethernet, 5-Pin DMX512 In & Out
- Dual Battery Plate Power Supply Supports Multiple Voltages up to Half or Full Power (14.4V / 26V / 28.8V)
- Can Achieve Half Output with 2x V-Mount / Gold Mount Batteries (14.4V/15A, 26V/8.5A, 28.8V/7.5A)
- Can Achieve Max Power with 2x V-Mount / Gold Mount Batteries (26V/18A, 28.8V/16A)
- Can Charge V-Mount / Gold Mount Batteries When Plugged into AC Power (14.4V / 26V / 28.8V)
- Supports 48V DC Input Power @ 15A, Including Battery Power Stations & Block Batteries (3-Pin XLR)
- Optimized LS 600 Series Hyper Reflector for Increased Output
- Accepts Bowens Mount Light Modifiers
- Curved, Handbrake-Locking Yoke with 360°Rotation
- Dual Junior/Baby Pin for Easy Mounting
- Separate Control Box for a Lighter Lamp Head
- 6m Weatherproof Locking NeutrikPower Cable
- Built-in Lightning Clamp Quick Release Plate
- 4 Dimming Curves: Linear, Exponential, Log, S-Curve
- 8 Built-in Lighting FX: Paparazzi, Fireworks, Lightning, Faulty Bulb, TV, Pulsing, Strobe, & Explosion
Specifications:
Photometrics:
|
Distance
|
|
1m
|
3m
|
5m
|
|
Bare Bulb
(105°)
|
Lux
|
22,150
|
2,600
|
1,020
|
|
Fc
|
2,058
|
242
|
95
|
|
|
Hyper-Reflector (55°)
|
Lux
|
98,500
|
8,500
|
3,000
|
|
Fc
|
9,150
|
790
|
280
|
|
|
F10 Fresnel (Flood 45°)
|
Lux
|
89,200
|
11,440
|
4,260
|
|
Fc
|
8,289
|
1,063
|
395
|
|
|
F10 Fresnel (Spot 15°)
|
Lux
|
224,200
|
29,300
|
10,580
|
|
Fc
|
20,836
|
2,723
|
983
|
|
CCT
|
5600K±200K
|
|
CRI
|
≥96
|
|
TLCI
|
≥96
|
|
CQS
|
≥94
|
|
SSI (D55)
|
≥72
|
|
Beam Angle
|
105°
|
|
BeamAngle
(600SeriesHyperReflector)
|
55°
|
|
Power Consumption
|
≤720W
|
|
Operating Current
|
3A
|
|
Operating Voltage (Power Supply)
|
100V~240V, 50Hz/60Hz
|
|
Operating Voltage
V-Mount (Two Batteries)
Half Output Mode
|
12.5V-16.8V (14.4/15A)
22V-33.6V (26V/8.5A, 28.8V/7.5A)
|
|
Operating Voltage
V-Mount (Two Batteries)
Full Output Mode
|
22V-33.6V (26V/18A, 28.8V/16A)
|
|
Operating Voltage
3-Pin XLR (48V DC)
|
48V/15A
|
|
BatteryCharging(Voltage)
|
16.8V/29.4V
|
|
BatteryCharging(Amperage)
|
3A
|
|
Operating Temperature
|
-20°C~45°C
|
|
Control Methods
|
On-board, 2.4GHz, SidusLink(SidusMesh™), Art-net,LumenRadio
|
|
Wireless Operating Range (2.4GHz)
|
≤100m
|
|
Wireless Operating Range (Bluetooth)
|
≤80m
|
|
WirelessOperatingRange
(LumenRadio)
|
≤100m
|
|
ScreenType
|
Adaptive Brightness LCD
|
|
FirmwareUpgradeable
|
USB(FAT16/FAT32), SidusLink OTA
|
|
Cooling Method
|
Active Cooling
|
|
Weatherproofing
|
Dust & Light Rain Resistant
|
|
Head Cable
|
LS 600 Series 5-Pin Weatherproof Head Cable (3m)
|
|
MaxHead Cable Length
|
6m
|
|
Power Cable
|
Neutrik® powerCONAC Power Cable (6m)
|
|
Weight
|
||
|
Lamp Head w/ Yoke
|
4.64kg / 10.23lbs
|
|
|
Control Box
|
V-Mount
|
5.8kg / 12.79lbs
|
|
Gold Mount
|
5.8kg / 12.79lbs
|
|
|
Lightning Clamp
|
670g / 1.48lbs
|
|
|
Total w/ Case
|
18.2kg / 40.12lbs
|
|
|
|
||
|
Dimensions
|
||
|
Lamp Head w/o Yoke
|
30.8*15.61*15.01cm / 12.13*6.15*5.91in
|
|
|
LampHeadw/Yoke
|
30.8*25.03*45.6cm / 12.13*9.85*17.95 in
|
|
|
Control Box
|
V-Mount
|
32.41*17.9*14.28cm / 12.76*7.05*5.62in
|
|
Gold Mount
|
32.41*17.9*13.27cm / 12.76*7.05*5.22in
|
|
|
Lightning Clamp
|
10.35*8.74*12.5cm / 4.07*3.44*4.92in
|
|
|
Case
|
62.5*43.5*39cm / 24.61*17.13*15.35in
|
|
|
Accessory Mount
|
BowensMount
|
|
Mounting
|
16mm / 28mm | 5/8in (Baby Pin) / 1.125in (Junior Pin)
|
|
CarryingCase
|
TelescopingHandle,Wheels
|
Package Contents:
600D Pro Basic Kit (533336):
1x Aputure LS 600d Pro Light Storm Daylight LED Light (V-Mount)
1x Control Box
1x Hyper Reflector
1x Weatherproof Head Cable
1x Neutrik AC Cable
1x VA Remote RC1+
1x Lightning Clamp
1x Rolling Carry Case
600D Pro + Light Octadome 120 (PK1831):
1x Aputure LS 600d Pro LED Light Basic Kit (V-Mount)(533336)
1x Aputure Light Octadome 120 (534846)
600D Pro + Light Dome 150 (PK1577):
1x Aputure LS 600d Pro LED Light Basic Kit (V-Mount)(533336)
1x Aputure Light Dome 150 Softbox (534244)
600D Pro Basic Kit + F10 Fresnel (PK1407):
1x Aputure LS 600d Pro LED Light Basic Kit (V-Mount)(533336)
1x Aputure F10 FRESNEL 10” Bowens Mount Glass Fresnel Lens (533338)
600D Pro Basic Kit + F10 Fresnel + F10 Barndoor (PK1671)
1x Aputure LS 600d Pro LED Light Basic Kit (V-Mount)(533336)
1x Aputure F10 FRESNEL 10” Bowens Mount Glass Fresnel Lens (533338)
1x Aputure F10 10” Metal Barndoors for the F10 Fresnel Bowens (533339)
600D Pro Basic Kit + Light Dome II (PK1451):
1x Aputure LS 600d Pro LED Light Basic Kit (V-Mount)(533336)
1x Aputure Light Dome II Soft Box (532051)
600D Pro + DELTA Pro (PK2138):
1x Aputure LS 600d Pro LED Light Basic Kit (V-Mount)(533336)
1x EcoFlow DELTA Pro 3600Wh Portable Power Station(535376)
|
600d Pro Accessory Compatibility List
|
||
 Lantern 532599  |
 F10 FRESNEL 10” Bowens Mount Glass Fresnel Lens 533338
|
 F10 10” Metal Barndoors 533339 |
 LANTERN 90 533688
|
 LIGHTDOME SE 533689 |
 Light Dome Mini II Soft Box 532052 |
 Light Dome II Soft Box 532051
|
 Spotlight Bowens Mount 532479
|
|
