TILTA ES-T21-BP Power Plate For Blackmagic Design PYXIS 6K

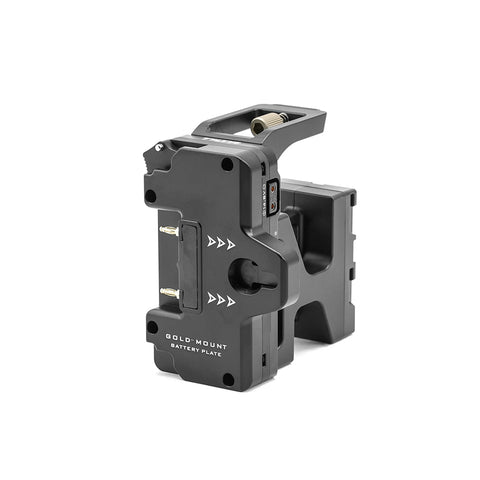

Introducing the Battery Plate for Blackmagic PYXIS 6K

This Battery Plate easily mounts and locks into the battery compartment of the Pyxis in order to provide power through a dummy battery style connection.

This allows users to power their camera and accessories via higher capacity V-Mount or Gold Mount batteries, which can greatly expand the camera’s runtime compared to internal batteries.

The Battery Plate features 2x 14.8V P-Tap ports, 1x 14.8V 2 Pin Lemo Port, 1x USB-C Port and one DC Power Input Port.

This DC input port is perfect for hot swapping batteries or for lightweight builds as it allows users to power the battery plate via an external power source. (power cable not included)

If using the Top Plate (not included) this Battery Plate can be further secured via a thumbscrew.


Features:

• CUSTOM DESIGNED for the Blackmagic Design PYXIS Camera Body
• POWER OUTPUTS (1) 2 Pin Lemo Ports, (2) P-Tap Port, and (1) USB-C Port
• POWER INPUT Allows Users to Power the Battery Plate via External Power (Cable Not Included)
• SECURITY ATTACHMENT Provides an Additional Point of Contact for Battery Plate with Top Plate (Optional)
• HIGH CAPACITY V-Mount or Gold Mount Batteries Provide Longer Lasting Power for the Camera and Accessories

Specifications:
Dimensions: 7.5 x 5.5 x 3.5 inches
Weight: 1 lbs
Materials: Aluminum alloy
Color: Black


Package Contents:

V Mount(538283)
1x Battery Plate for Blackmagic PYXIS 6K – V Mount

Gold Mount(538302)
1x Battery Plate for Blackmagic PYXIS 6K – Gold Mount
