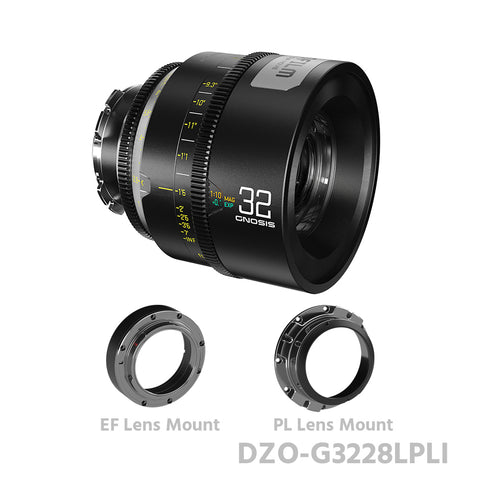

DZOFILM Gnosis 32mm T2.8 Macro 1:1 Prime Lens LPL+PL+EF Mount
- Brand: DZOFiLM
- SKU: DZO-G3228LPLI
- Product code:
Cinematic imaging in great details
From the MFD to INF, Gnosis provides excellent image quality with extreme sharpness from the center of frame right out to the edges. The color rendition is uniformly and naturally clean from in-focus to out-of-focus, presenting a stunning image rich in gradation.
Reliable and precise mechanics for smooth creation
Precisely control and shift the focus with a 300 degree rotation to get a stable and comfortable performance and perfect your work.
All-inclusive meet multiple needs in filmmaking
LPL / PL / EF Mount
These lenses cover wide-angle, standard, and telephoto focal lengths, providing flexible shooting distance and field of view options to meet the demand of macro creation in common focal lengths and adapt to a wider range of subjects.
Specifications:
|
FOCAL LENGTH |
24 mm |
32 mm |
65 mm |
90 mm |
|
COLOUR |
Black |
|||
|
MOUNT |
PL / EF / LPL |
|||
|
T-STOP |
T2.8-T22 |
|||
|
IMAGE CIRCLE |
∮46.5 (VV/FF) |
|||
|
OPTICAL CONSTRUCTION |
12 Elements in 10 Groups |
11 Elements in 9 Groups |
11 Elements in 8 Groups |
11 Elements in 9 Groups |
|
FLANGE DISTANCE |
52mm (PL) / 44mm (EF) / 44mm (LPL) |
|||
|
CLOSE FOCUS [ FROM SENSOR PLANE ] |
0.155m/6.1in |
0.167m/6.6in |
0.237m/9.36in |
0.258m/10.2in |
|
MAGNIFICATION RATIO |
0.8X |
1.0X |
1.33X |
1.5X |
|
IRIS CONTROL |
Manual (rotation angle 62°) |
Manual (rotation angle 55°) |
Manual (rotation angle 67°） |
Manual (rotation angle 68°） |
|
FOCUS CONTROL |
Manual (rotation angle 300°） |
|||
|
FRONT DIA. |
∮114mm |
|||
|
LENGTH |
100mm |
112mm |
||
|
IRIS BLADE |
16 |
|||
|
FILTER SIZE |
M105 |
|||
|
GEAR PITCH |
0.8 Mod |
|||
|
MATERIAL |
Aluminium alloy |
|||
|
WEIGHT |
≈1265g |
≈1460g |
≈1447.5g |
≈1280.5g |
Package Contents:
1x DZOFILM Gnosis 32mm T2.8 Macro Prime Lens LPL Mount lens
1x PL mount bayonet
1x EF mount bayonet
1x Hard Case
