Aputure Light OctaDome 120 Bowens Mount Octagonal Softbox with Grid (47.2") For 1200d Pro/600x Pro/600d Pro/300X/300d II
- Brand: Aputure
- SKU: APA0226A30
- Product code:

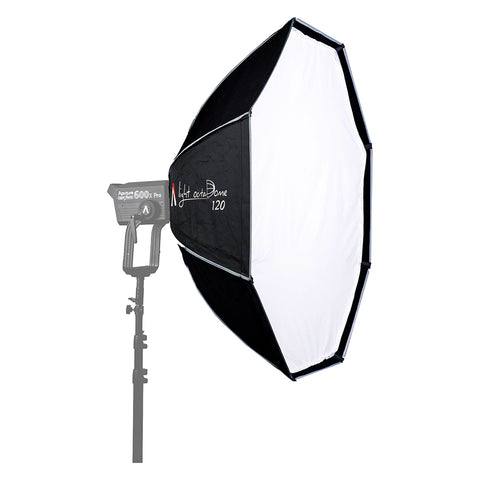

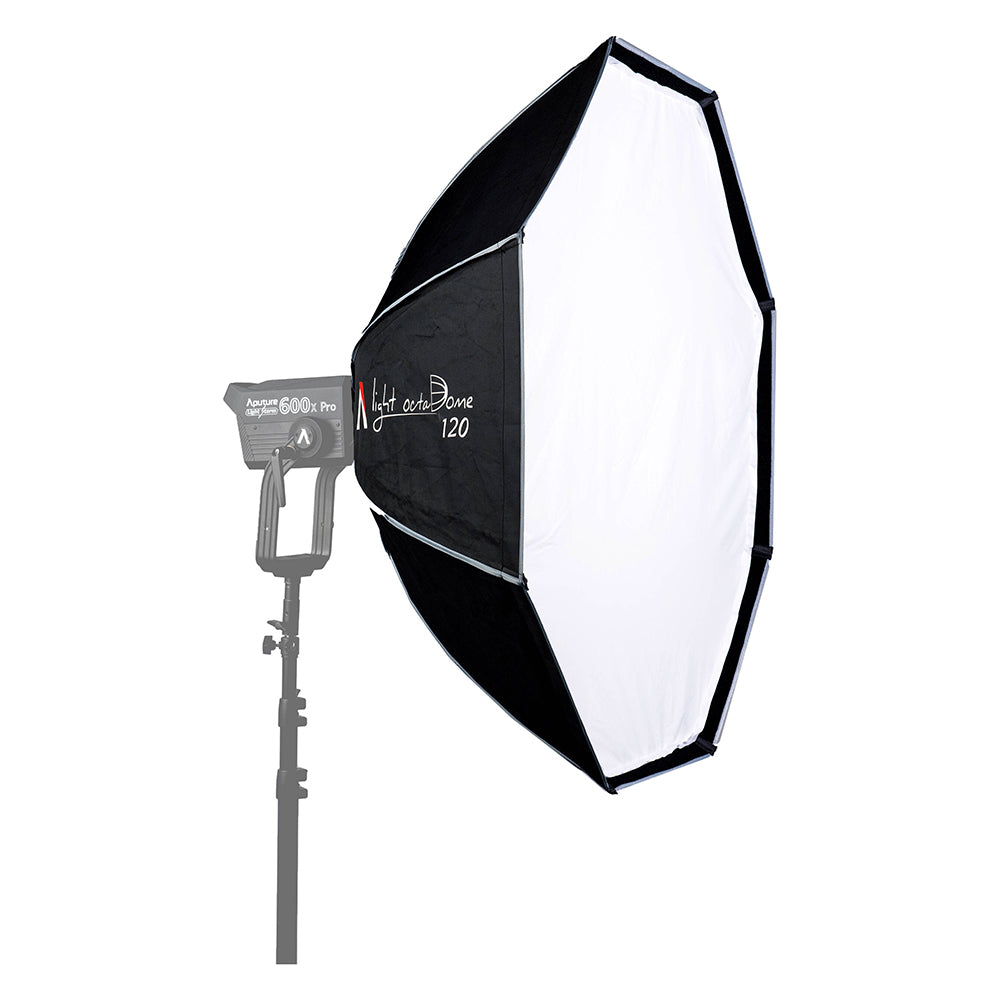

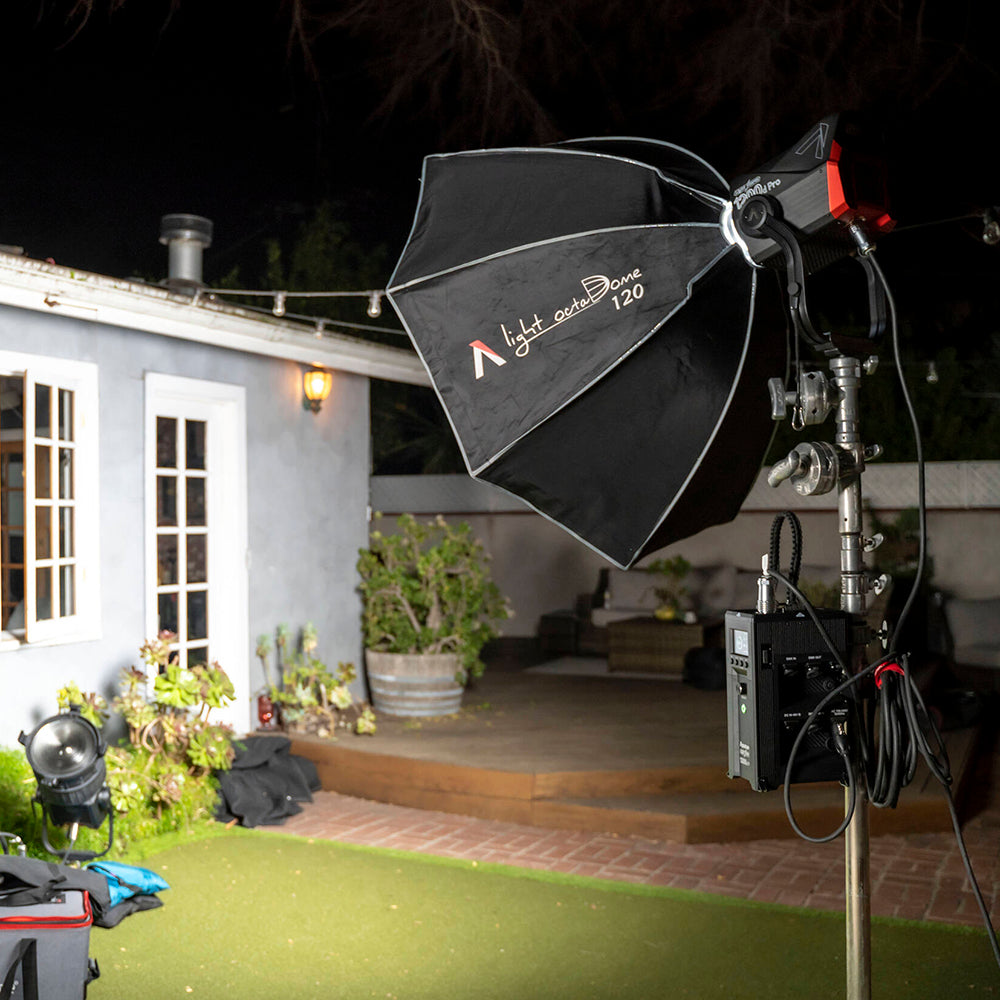

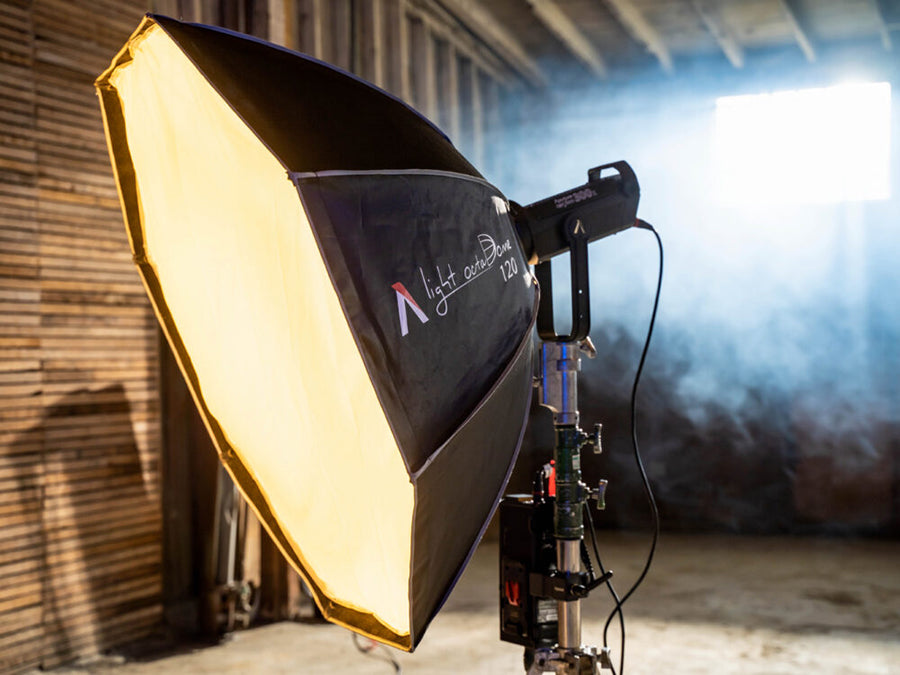

The Light OctaDome 120 is a 120cm (47.2in) Bowens Mount Octagonal Softbox. This 8-sided softbox transforms any point source Bowens Mount light fixture into an ultra-soft area light, blanketing your set in diffused light.
![](https://cdn.shopifycdn.net/s/files/1/1258/4351/files/10001_b5705279-e3e2-464e-a767-c718f3d6bb9f.jpg?v=1645753839)
REPLACE GEL FRAMES

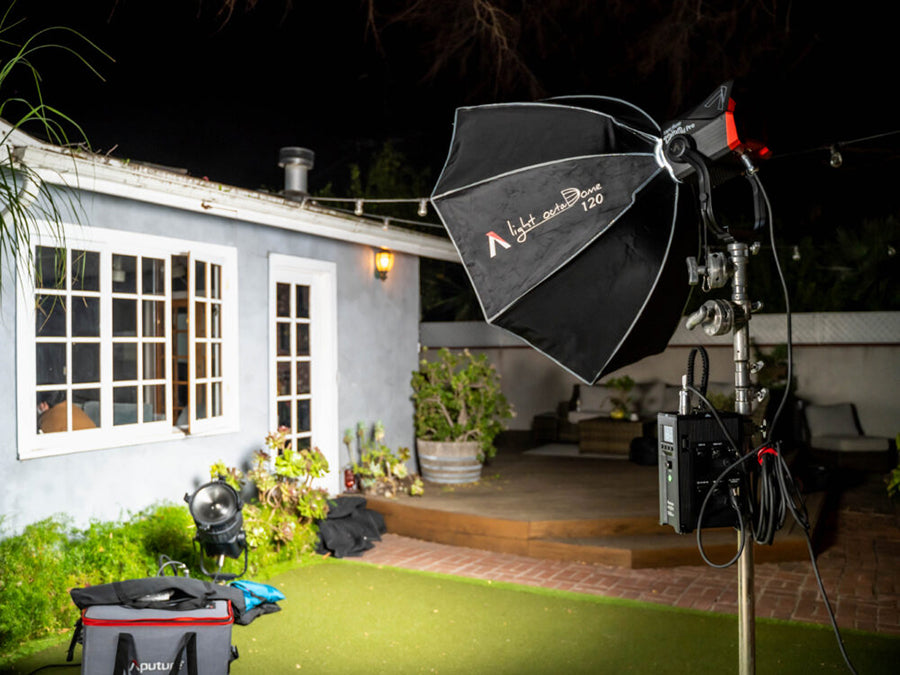

The OctaDome's 8-sided design creates a more natural, round eye light than a 4' x 4' gel frame. And because you can easily mount it directly to your light fixture and even add a control grid, you can say good riddance to all the stands, arms, and sandbags you’d need to set up a similar frame.
![](https://cdn.shopifycdn.net/s/files/1/1258/4351/files/10002_a6a1e642-1d6d-4782-9b0e-8aa8aa4292f8.jpg?v=1645753855)
FINE-TUNE DIFFUSION

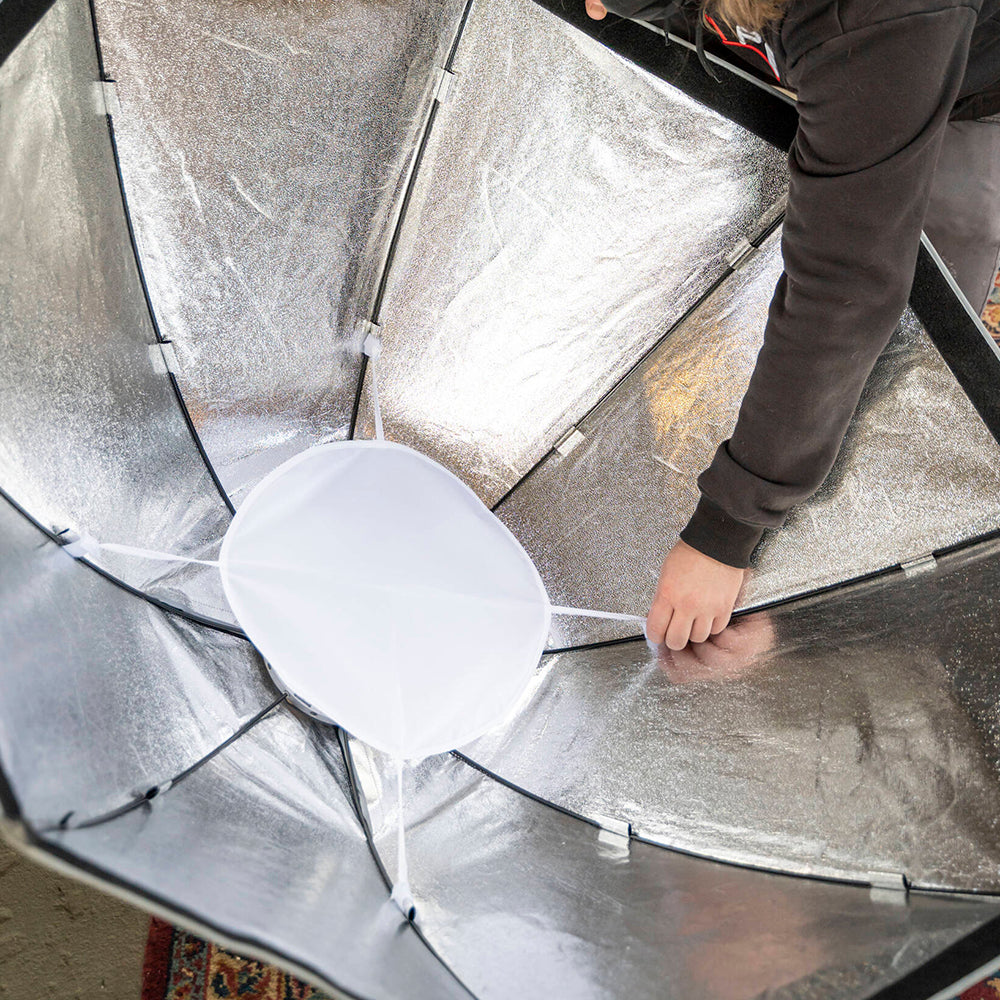

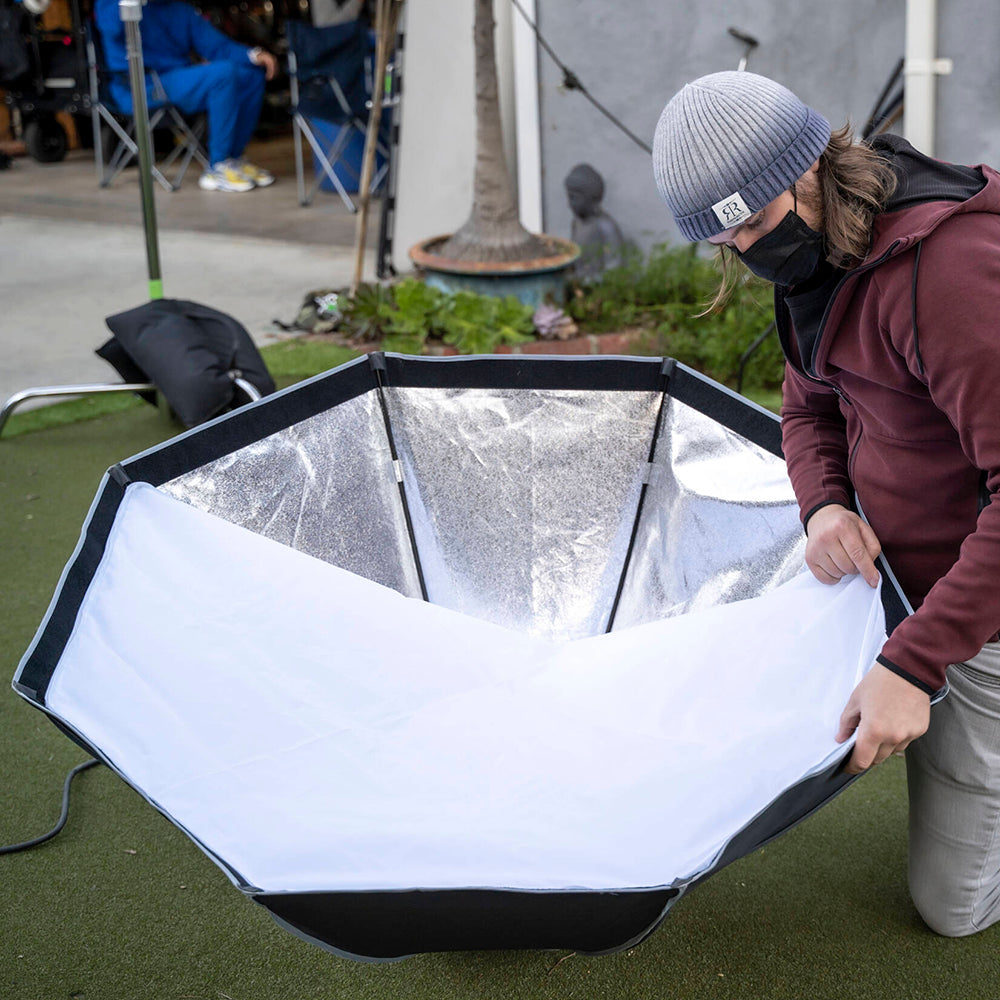

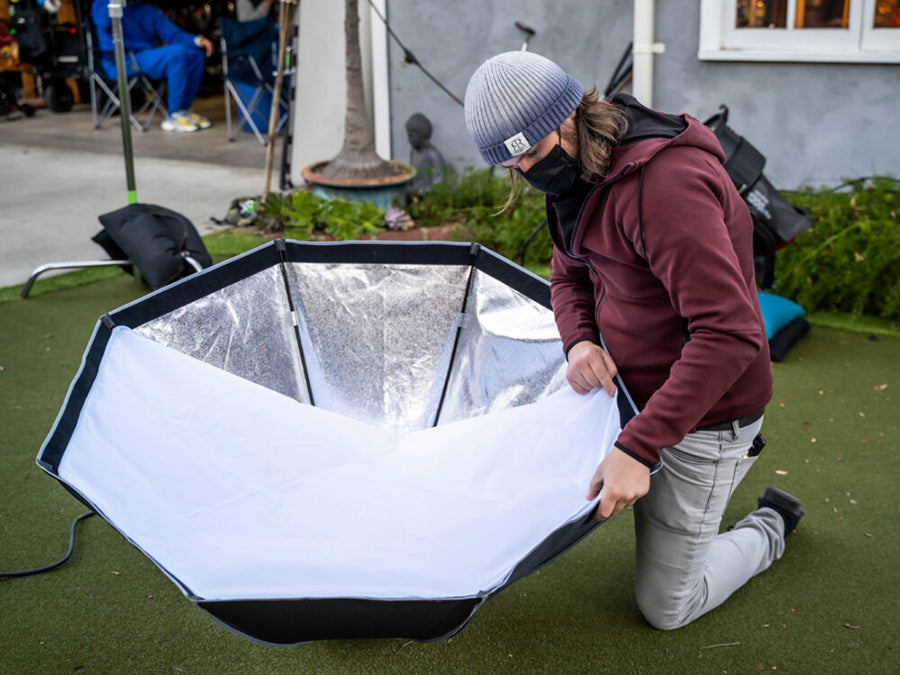

The Light OctaDome 120 includes two diffusion strengths (1.5 and 2.5 stops) and an inner baffle to allow users to fine-tune their intensity and light quality.
![](https://cdn.shopifycdn.net/s/files/1/1258/4351/files/10003_1b4a5974-b366-4410-9c0b-c5b6a4d49755.jpg?v=1645753876)
LIGHTWEIGHT CONSTRUCTION
The OctaDome 120 is also perfect softbox for on-the-go shooting, combining its flat-pack ability, compact carrying bag, lightweight 1.7kg (3.75lbs) construction, and the ideal balance between a square frame or a fully circular softbox.
![](https://cdn.shopifycdn.net/s/files/1/1258/4351/files/10004_1c303129-9daa-46ec-b723-ae2989bb4d52.jpg?v=1645753894)
WARNING: The OctaDome 120 should only be used for inside studio use. Due to the lightweight build quality, it is not designed for regular dismantling and does not have a quick release setup. Outdoor use is not advised. Therefore any damage and wear and tear caused on this product is not covered under the standard 1 year warranty.

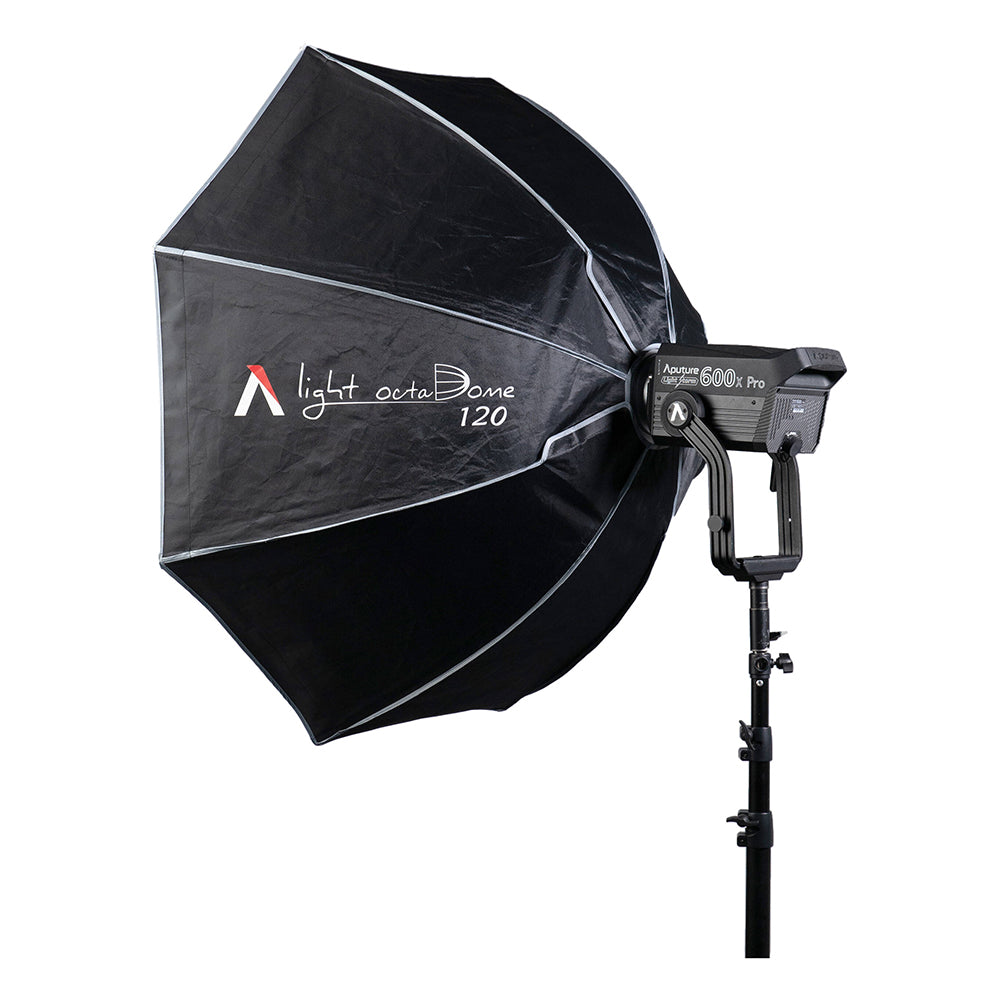

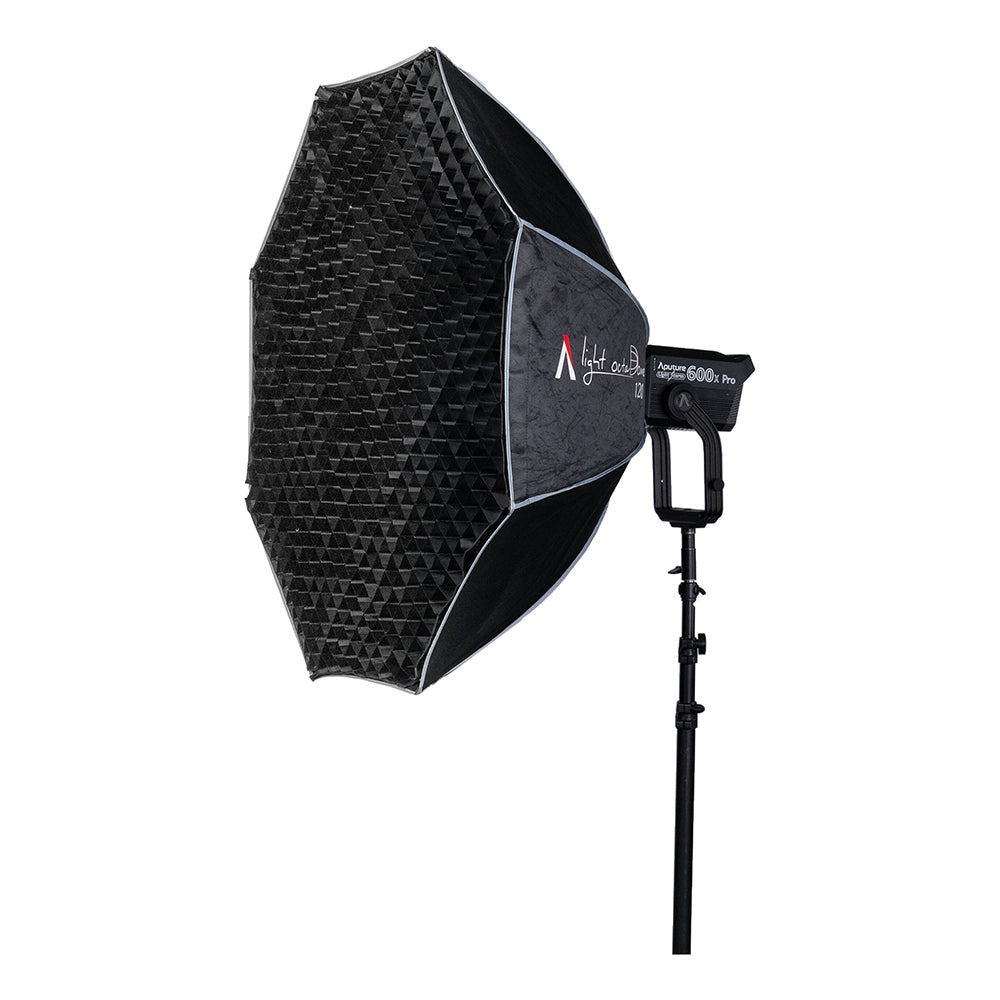

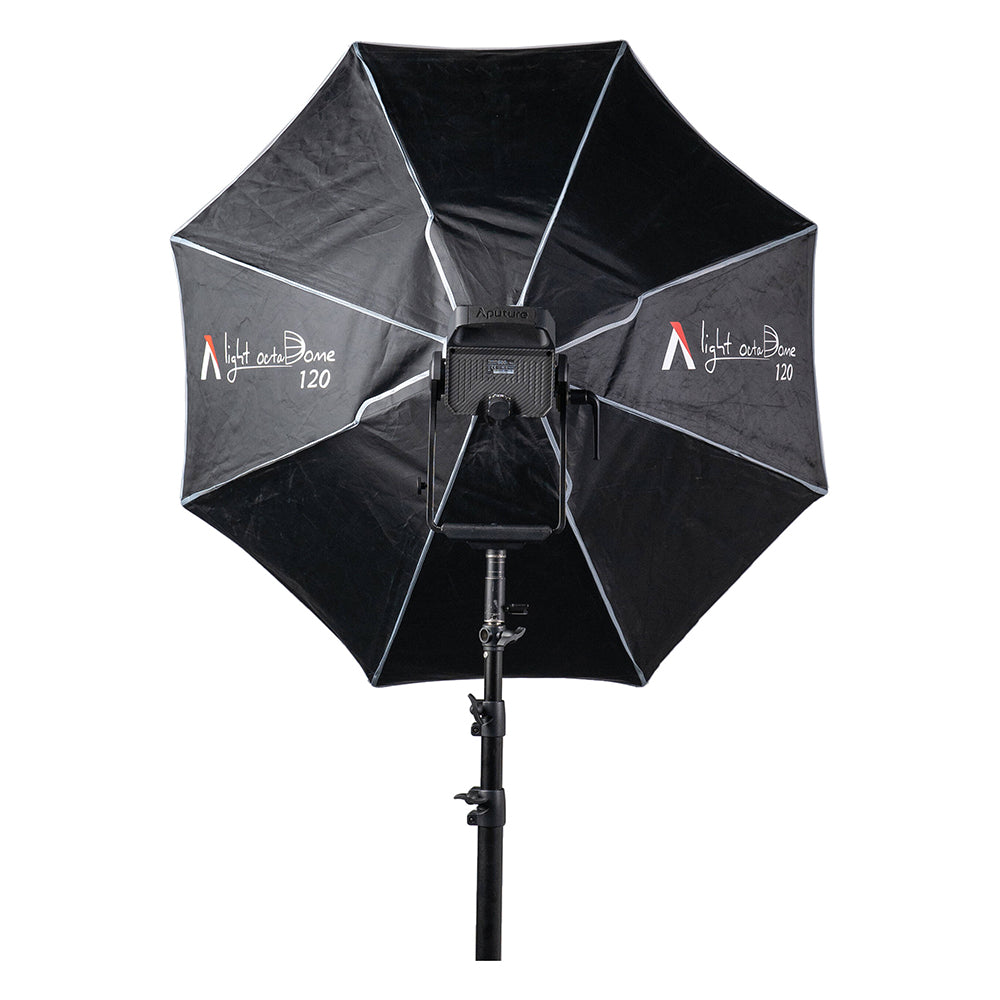

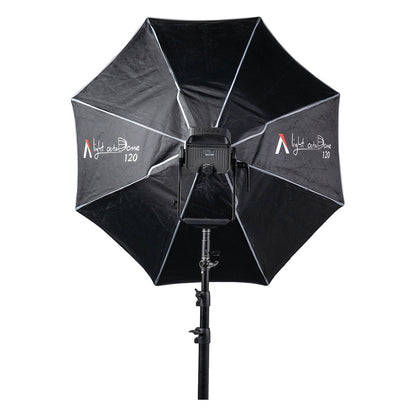

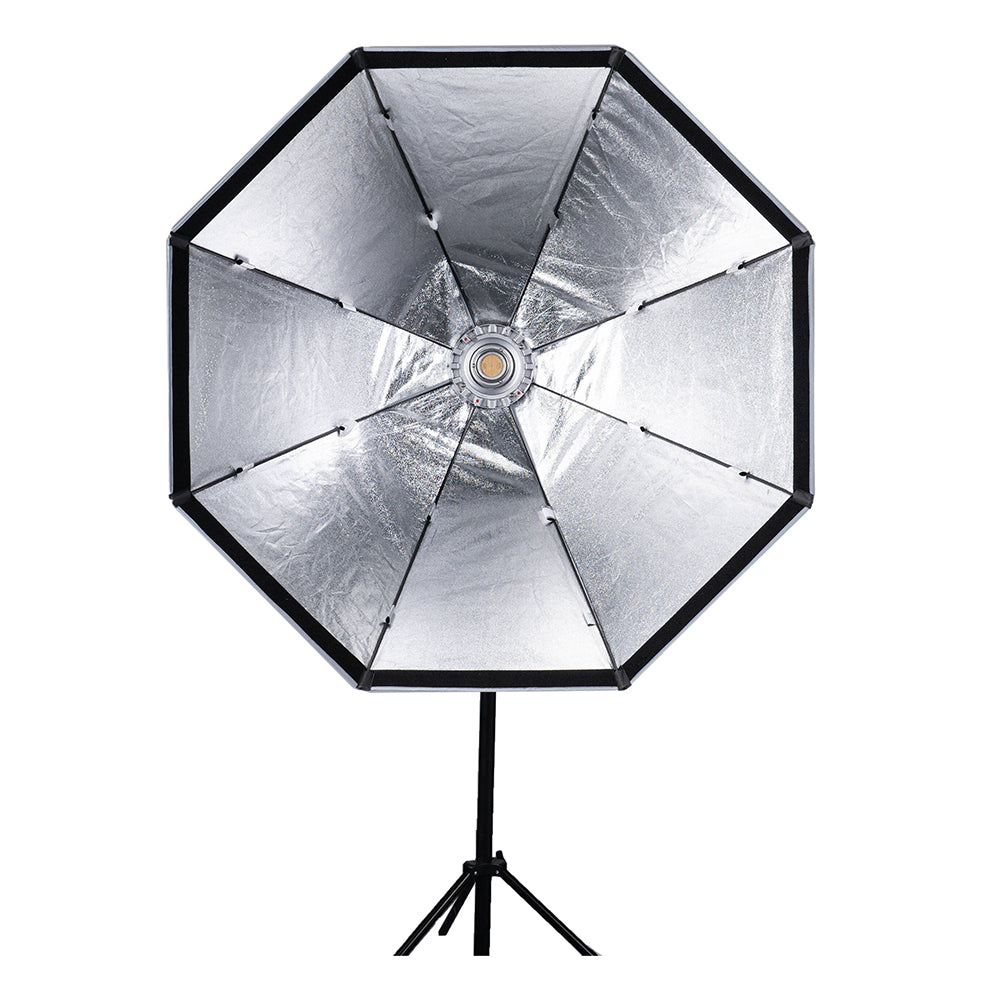

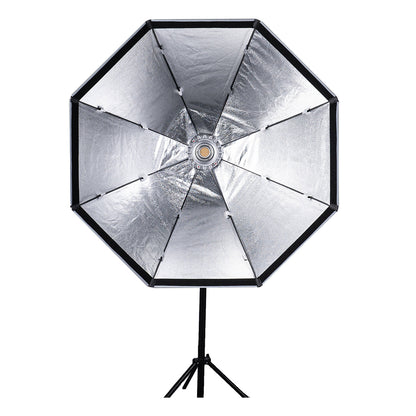

The Light OctaDome 120 Bowens Mount Octagonal Softbox from Aputure has eight sides to transform any point source Bowens-mount light fixture into an ultrasoft area light, blanketing your subject or set in diffused light. It has a large 47" diameter and two front diffusers, plus an inner baffle to allow you to fine-tune intensity and light quality. The shape offers balance between a square frame or a fully circular softbox. It is lightweight at 3.75 lb and can be flat packed for on-the-go shooting. The OctaDome 120 features a silver interior to maximize light output, and includes a foldable 45° grid to add directional output and reduce light spill. The set includes a Bowens-type speed ring, but is also compatible with other types of standard speed rings.
Features:

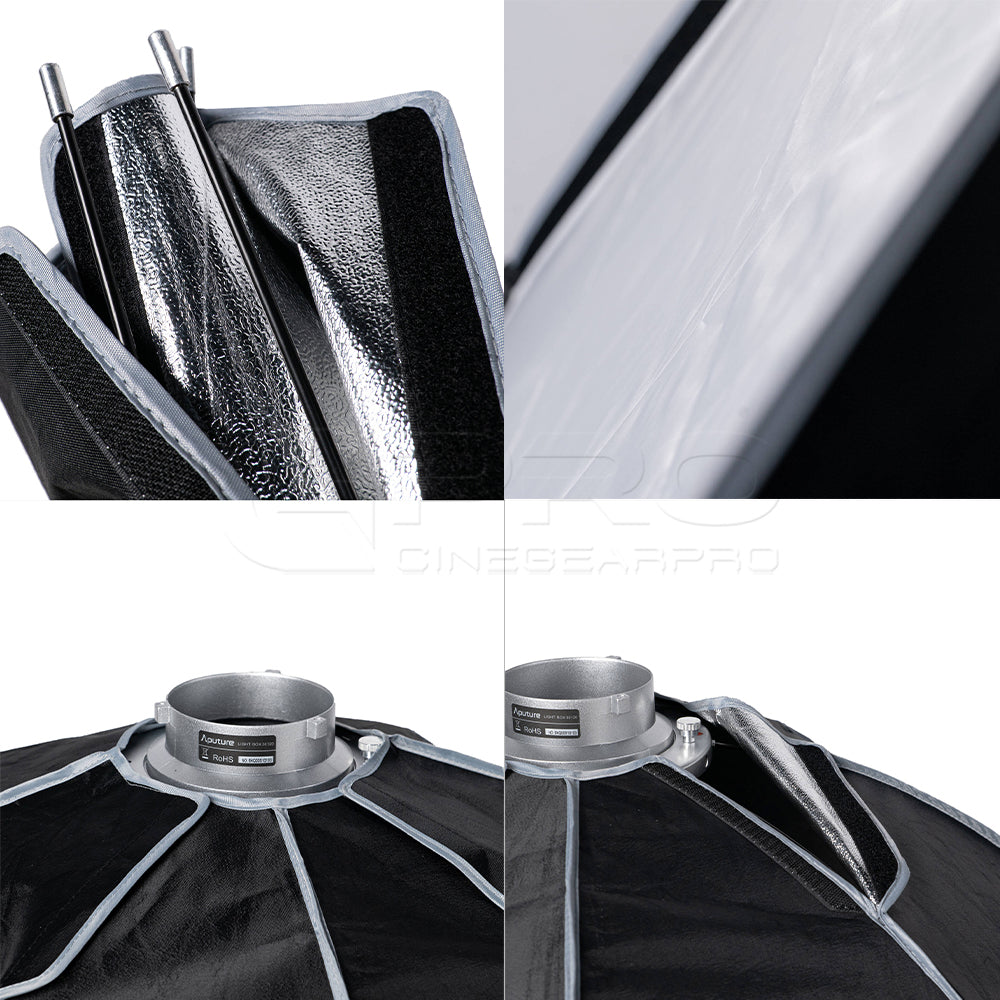

- 8-Sided Octagon with Silver Interior
- 21" Depth, 45° Fabric Grid
- 1.5-Stop Front Diffusion Fabric
- 2.5-Stop Front Diffusion Fabric
Specifications:
Item Type | Softbox (8-Sided Octagon Shape) |
Interior Color | Silver |
Light Compatibility | Includes Speed Ring with Aputure / Bowens S Mount |
Quick Open Type | No |
Accepts Grids | Yes (Not Included) |
Removable Front Face | Yes |
Removable Interior Baffle | Yes |
Light Loss/Gain | 1.5-Stop Loss (with Diffuser) 2.5-Stop Loss (with Diffuser) |
Materials | Fabric |
Front Fabric Diffusion 1 | Diffusion Stops 1.5 Stops Dimensions Φ120cm / 47.24in |
Front Fabric Diffusion 2 | Diffusion Stops 2.5 Stops Dimensions Φ120cm / 47.24in |
Inner Baffle Diffusion | Diffusion Stops 1.5 Stops Dimensions Φ120cm / 47.24in |
Dimensions | Built : Φ120 x 53cm / Φ47.24 x 21.06 in Collapsed : 76 x 15.x 3cm / 30 x 5.9 x 1.18 in |
Weight | 3.7 lb / 1.7 kg |
Photometrics:
Fixture | Distance | 1.5 Stop Diffusion | 2.5 Stop Diffusion |
LS 1200d Pro | 1M | 20,280 lux / 1,884 fc | 17,670 lux / 1,642 |
3M | 3,280 lux / 305 fc | 2,666 lux / 248 fc | |
5M | 1,267 lux / 118 fc | 1,012 lux / 94 fc | |
LS 600x Pro (5600K) | 1M | 6,040 lux / 561 fc | 5,230 lux / 486 fc |
3M | 1,020 lux / 95 fc | 825 lux / 77 fc | |
5M | 386 lux / 36 fc | 308 lux / 29 fc | |
LS 600d Pro | 1M | 8,830 lux / 820 fc | 8,030 lux / 746 fc |
3M | 1,522 lux / 141 fc | 1,231 lux / 114 fc | |
5M | 587 lux / 55 fc | 486 lux / 45 fc | |
LS 300x | 1M | 2,660 lux / 247 fc | 2,335 lux / 217 fc |
3M | 416 lux / 39 fc | 347 lux / 32 fc | |
5M | 167 lux / 16 fc | 136 lux / 13 fc | |
LS 300d II | 1M | 4,710 lux /438 fc | 4,120 lux / 383 fc |
3M | 797 lux / 74 fc | 639 lux / 59 fc | |
5M | 298 lux / 28 fc | 246 lux / 23 fc |
Package Contents:
1x Aputure Light OctaDome 120 Bowens Mount Octagonal Softbox with Grid (47.2")
1x 1.5-Stop Front Diffuser
1x 2.5-Stop Front Diffuser

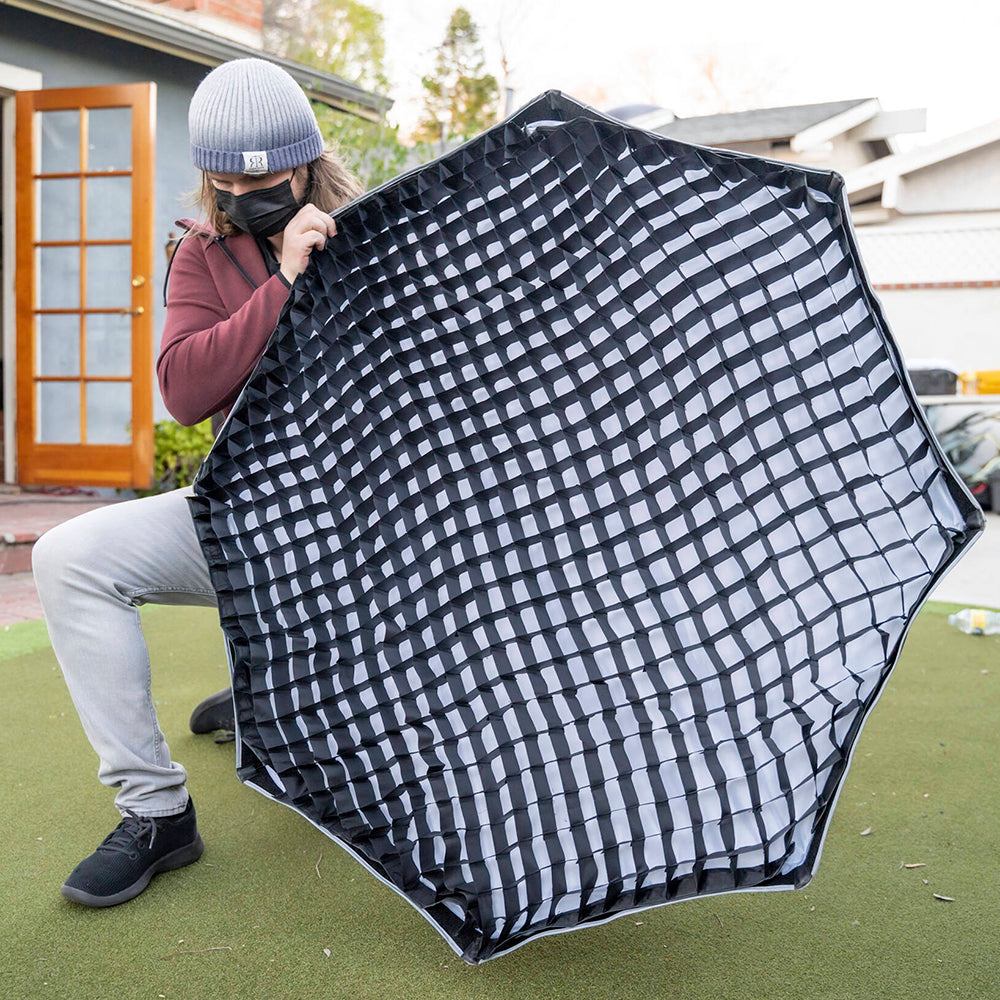

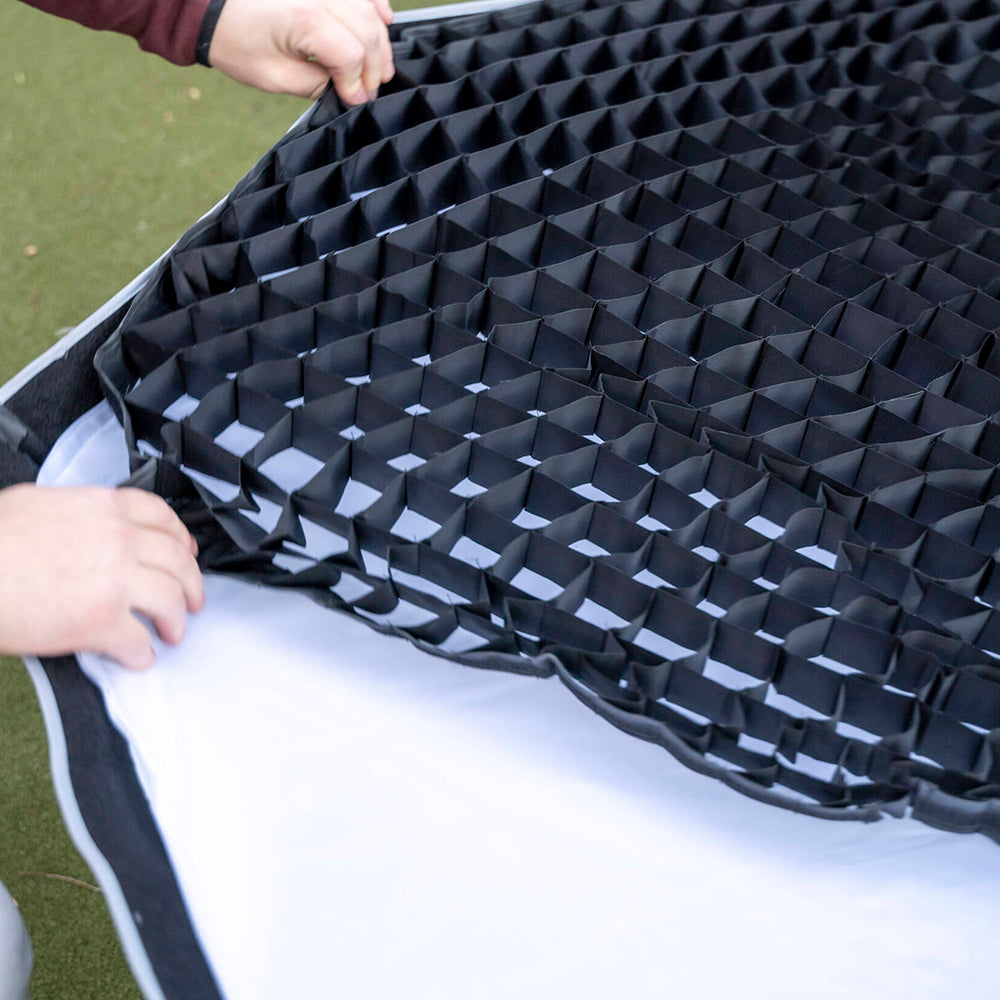

1x 45° Fabric Grid

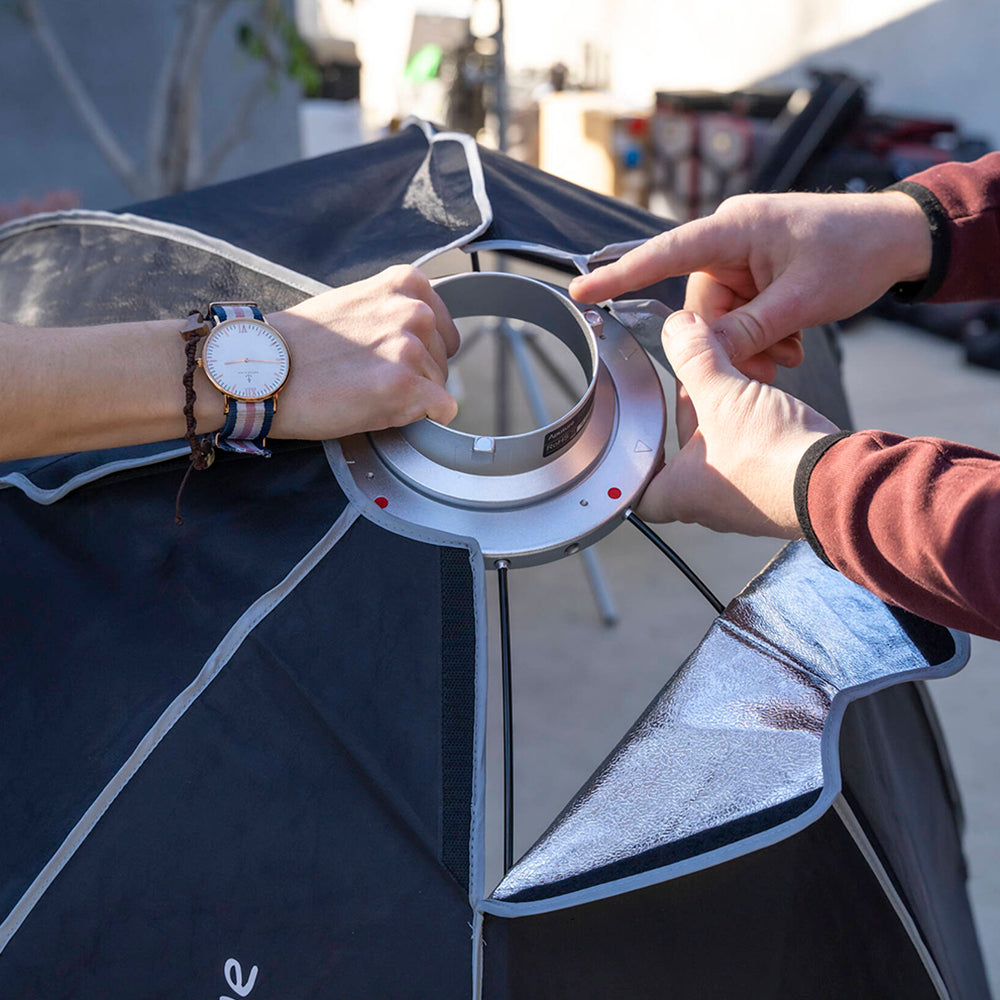

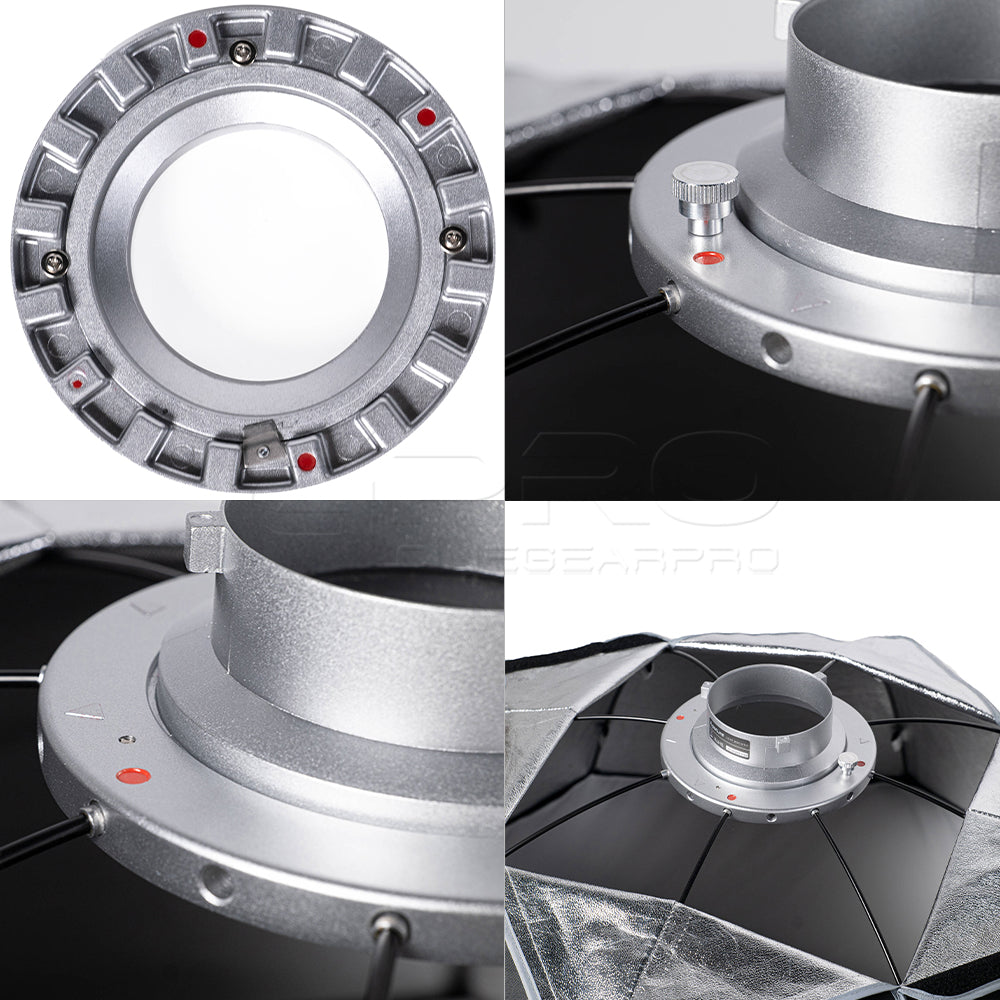

1x Bowens-Style Speed Ring
1x 8 x Rod

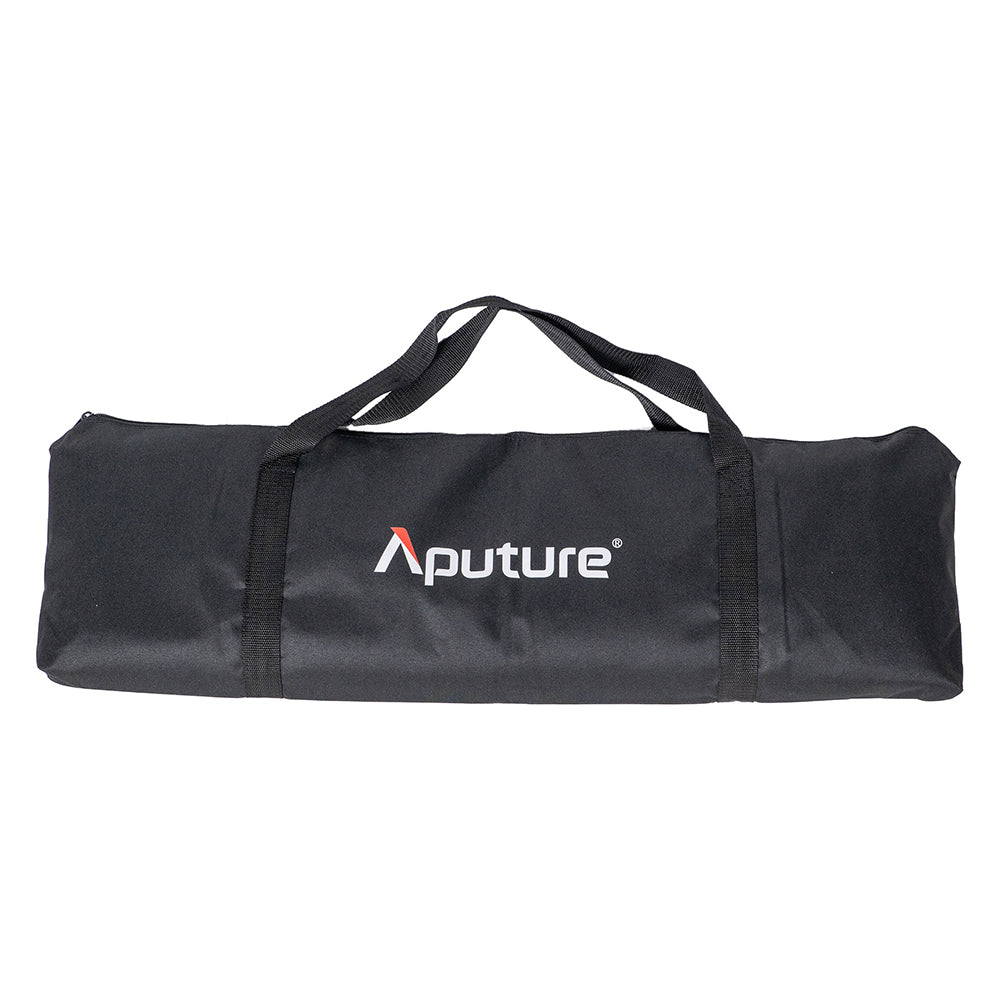

1x Carrying Case
